33 Io Express Installation and Operation Guide — Using the AJA Control Panel
SDI Out Screen The SDI Out screen shows the current setting for both the SDI and HDMI outputs. If an input/
output has no video, it will be indicated on the block diagram (“No Video”).

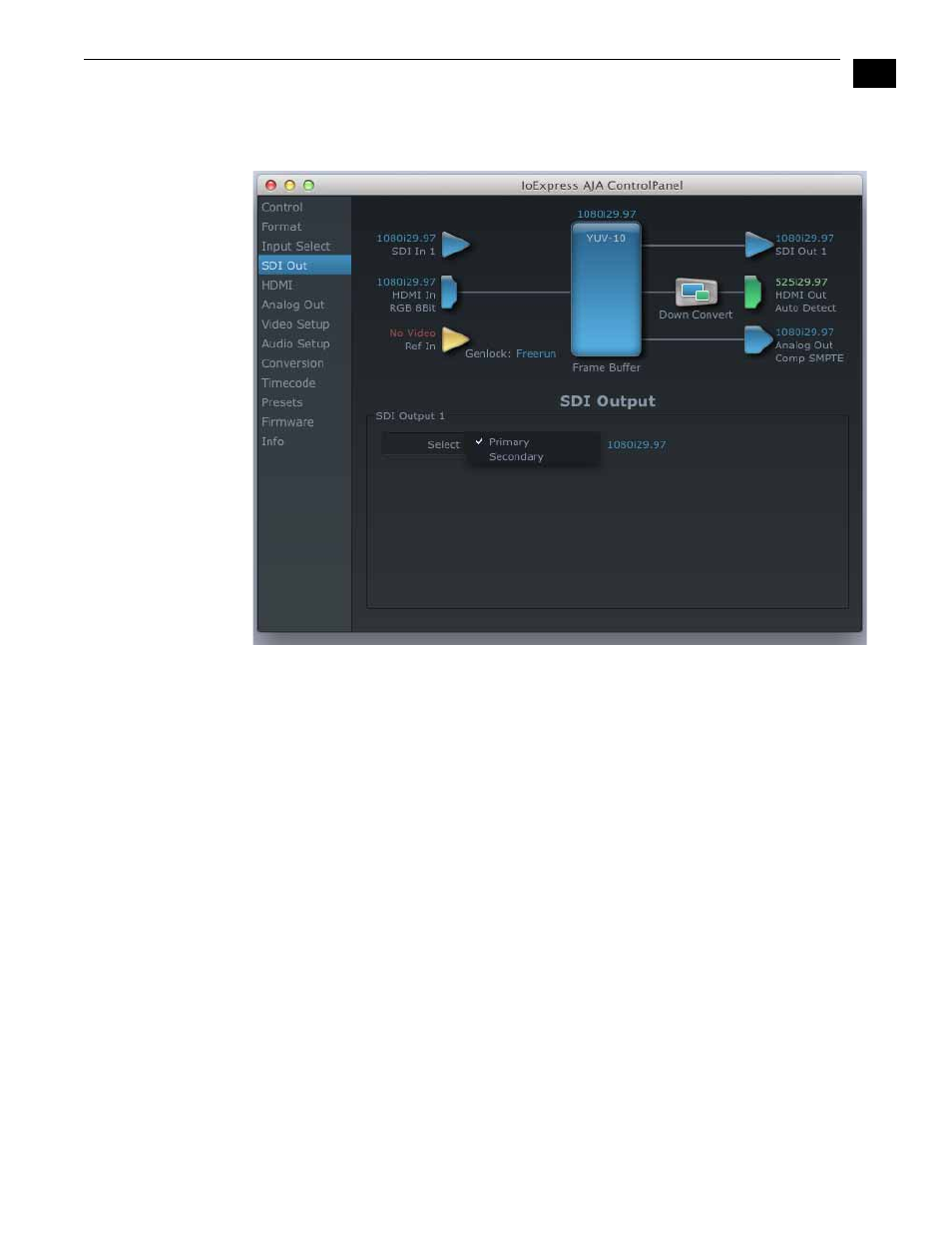

Io Express Control Panel, Digital Out Screen
SDI Out Screen Settings
Information that can appear includes the following items. You can view the current setting or
click on another to change to it:
Primary—when selected, this indicates that the SDI output is set to the same format as the
framebuffer. That value will be listed in blue.
Secondary—when selected, this indicates that the SDI output is set to a format different from
the framebuffer (Primary Format). That secondary format value will be listed in green. This
shows that active processing of the video is taking place (format change and possibly down-
conversion).
Note: Control-clicking on an output icon brings up a contextual menu allowing you see the
current format and make changes if desired.
