7 AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls
Table 2. Audio levels for D10CEAs S/N A15211 and earlier
:
Output Selection
Matrix For Video
Output 2 (3 BNCs) The following table shows the combinations of DIP switch settings required to configure the
three BNCs on the break-out cable.

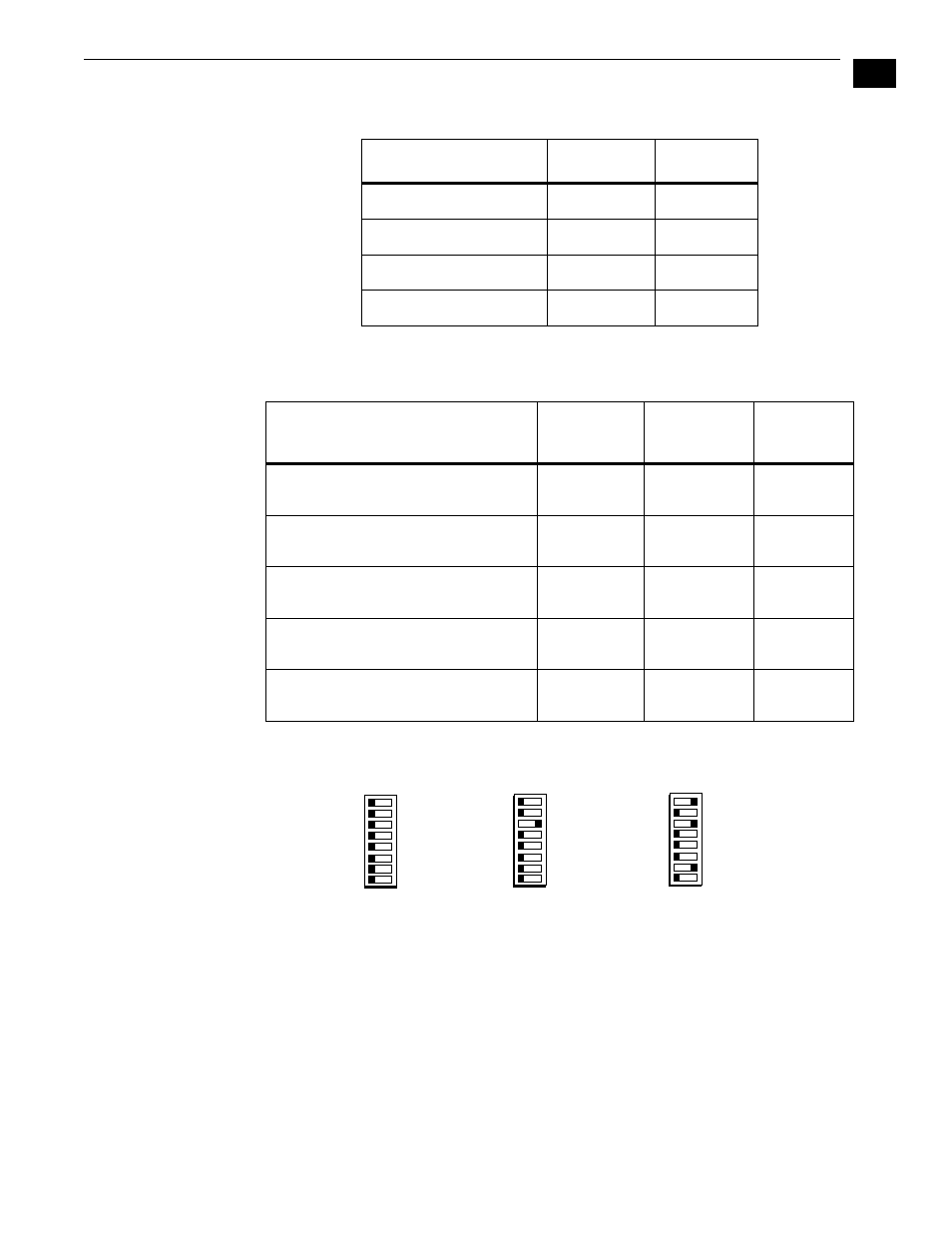

Examples of Typical DIP Switch Settings
Audio Level (dbu) S7 S8
+4.00 dBu 0ff (Left) 0ff (Left)
+2.00 dBu 0n (Right) 0ff (Left)
0.00 dBu 0ff (Left) 0n (Right)
-14.00 dBu 0n (Right) 0n (Right)
Output Format
DIP Switch
#1
DIP Switch
#2
DIP Switch
#3
1 composite & 1 Y/C (pedestal) CMPSTE/
RIGHT
YPbPr/YC
N/A
RIGHT
1 composite & 1 Y/C (no pedestal) COMPNT/
RIGHT
YPbPr/YC/YC
N/A
LEFT
RGB COMPNT/
LEFT
RGB/RIGHT LEFT
SMPTE component (BETA625) COMPNT/
LEFT
YPbPr/YC/YC
LEFT
LEFT
BETA 525 component COMPNT/
LEFT
YPbPr/YC/YC
LEFT
RIGHT
SMPTE
Component
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Beta
Component
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Composite
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Selects:
Component
YPbPr (SMPTE)
Pedestal Off
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level +4.00 dbu
Selects:
Component
YPbPr (Beta)
Pedestal On
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level +4.00 dbu
Selects:
Composite
Composite and Y/C
Pedestal On
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level 0.00 dbu
