5 AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls
User Controls

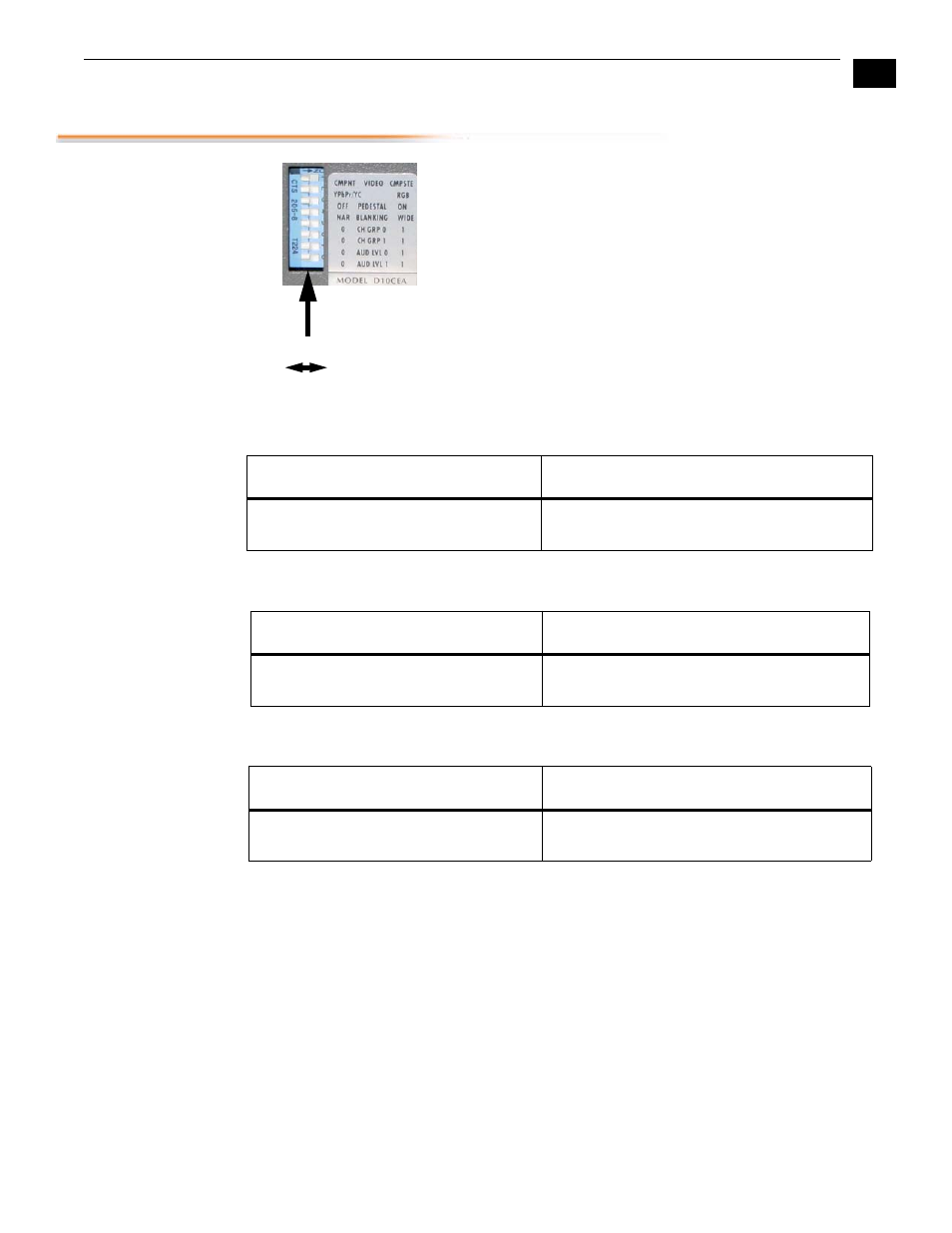

The user interface for the D10CEA is an 8-switch DIP accessible
through a cut-out in the bottom of the unit. Use the DIP switches
to configure video outputs, pedestal, blanking, select audio
channel groups, and set audio level.
Switches 1 through 4 configure video output format. Switches 4
through 8 select the audio channel group and audio level. The
exact function of each DIP switch and what it controls is
described on the following pages.
Switch 1—Select Component (COMPNT) or Composite (CMPSTE) Out
:
Switch 2—Selects YPbPr/YC or RGB Component Outputs
:
Switch 3—Configure Pedestal For Composite
:
Note: There is no effect with 625 input.
RIGHT LEFT
CMPSTE:
Selects composite video output COMPNT:
Selects component video output
RIGHT LEFT
RGB:
Selects RGB YPbPr/YC:
Selects YPbPr/YC component video out
RIGHT LEFT
7.5 IRE pedestal for NTSC (also selects
BETA 525 levels for YPbPr) No pedestal (also selects SMPTE levels for
YPbPr)
DIP Switches
1
2
3
4
5
6
7
8
8
LEFT RIGHT
