Hi5-Plus v1.0 www.aja.com 6
I/O Connections

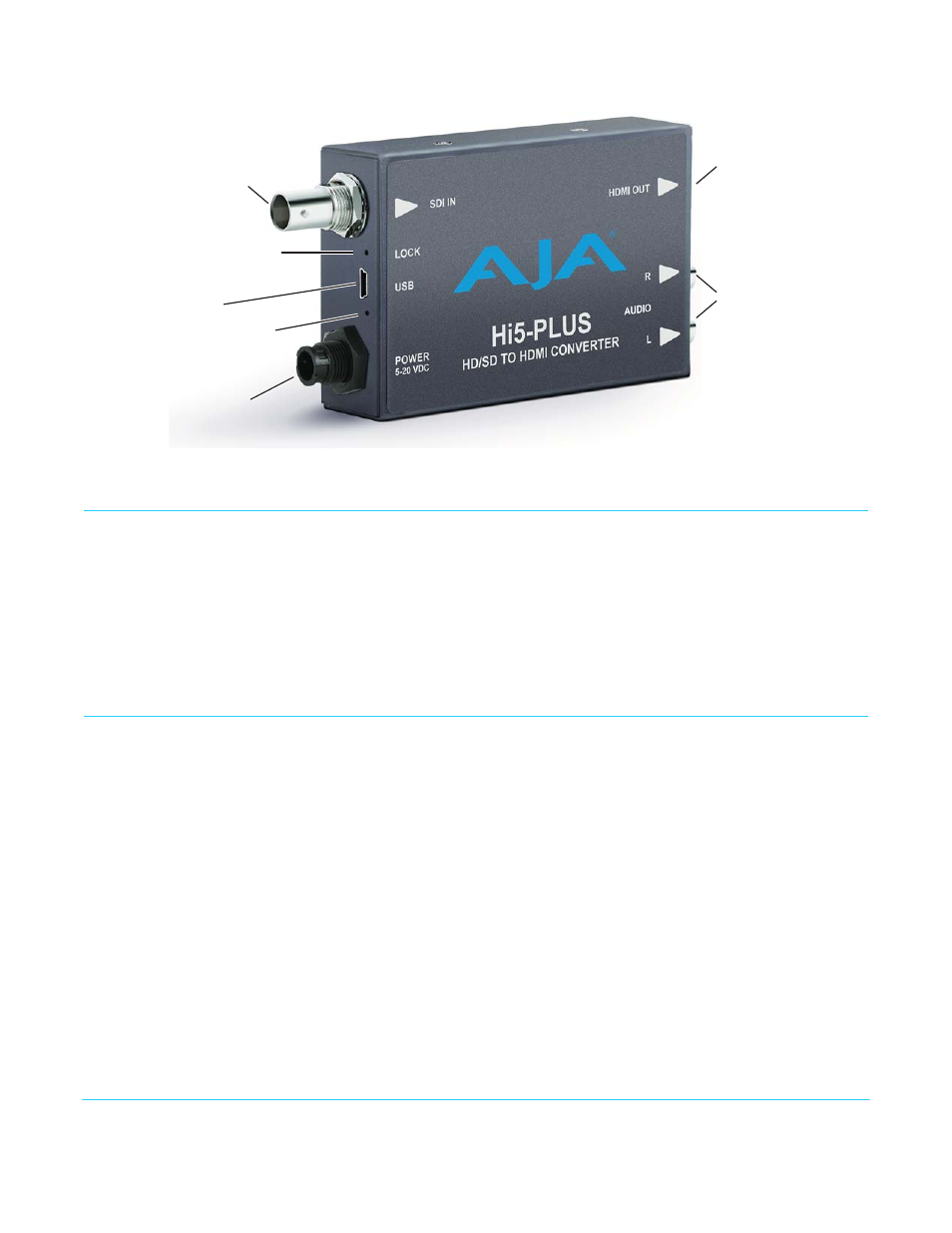

Figure 2. Hi5-Plus Converter Connections
User Controls
MiniConfig Control
Auto controls configures the unit automatically to match the input and output video
parameters. Advanced MiniConfig control supports color space and bit depth
adjustments, and audio channel selection.
Configuration set via MiniConfig is stored in the Hi5-Plus unit through subsequent power
cycles.
Installation
Typically, Hi5-Plus installation consists of the following steps:
1. Ensure the Hi5-Plus is disconnected from power.
2. Connect video equipment to the converter BNC and HDMI connector.
3. Connect audio equipment to RCA connectors (optional)
4. Apply power to the converter (AJA power supply included).
5. The converter will now run using the default factory settings. If you wish to alter the
factory settings, you’ll need to:
• Install the AJA MiniConfig software (supplied on CD) on your computer
• Attach the converter via USB
• Make your changes using MiniConfig setup screens.
• This process is detailed in "USB Control and Setup—Using AJA MiniConfig" .
USB
Port
3G/HD/SD-SDI
Input BNC
Signal
Presence
Lock LED
2 Channel
Unbalanced
Analog Audio
Out (RCA Jacks)
DC
Power
Input
Power
LED
HDMI
Output
Connector
