3G-B Mode: Selects the 3G level B Video Mode. Choose from the following:
• Auto - automatically selects the format based on the input video parameters.
• Dual Link - select this when your 3G signal is carrying 444 information or 12 bit data.
NOTE: The following two settings only apply to 3G-B video in Dual Stream mode.
• 1 x HD DS1 - use only Data Stream 1 as a single video.
• 1 x HD DS2 - use only Data Stream 2 as a single video.
Output Tab Screen
Click on the Output tab to view and make changes to the Hi5-Plus Output settings.

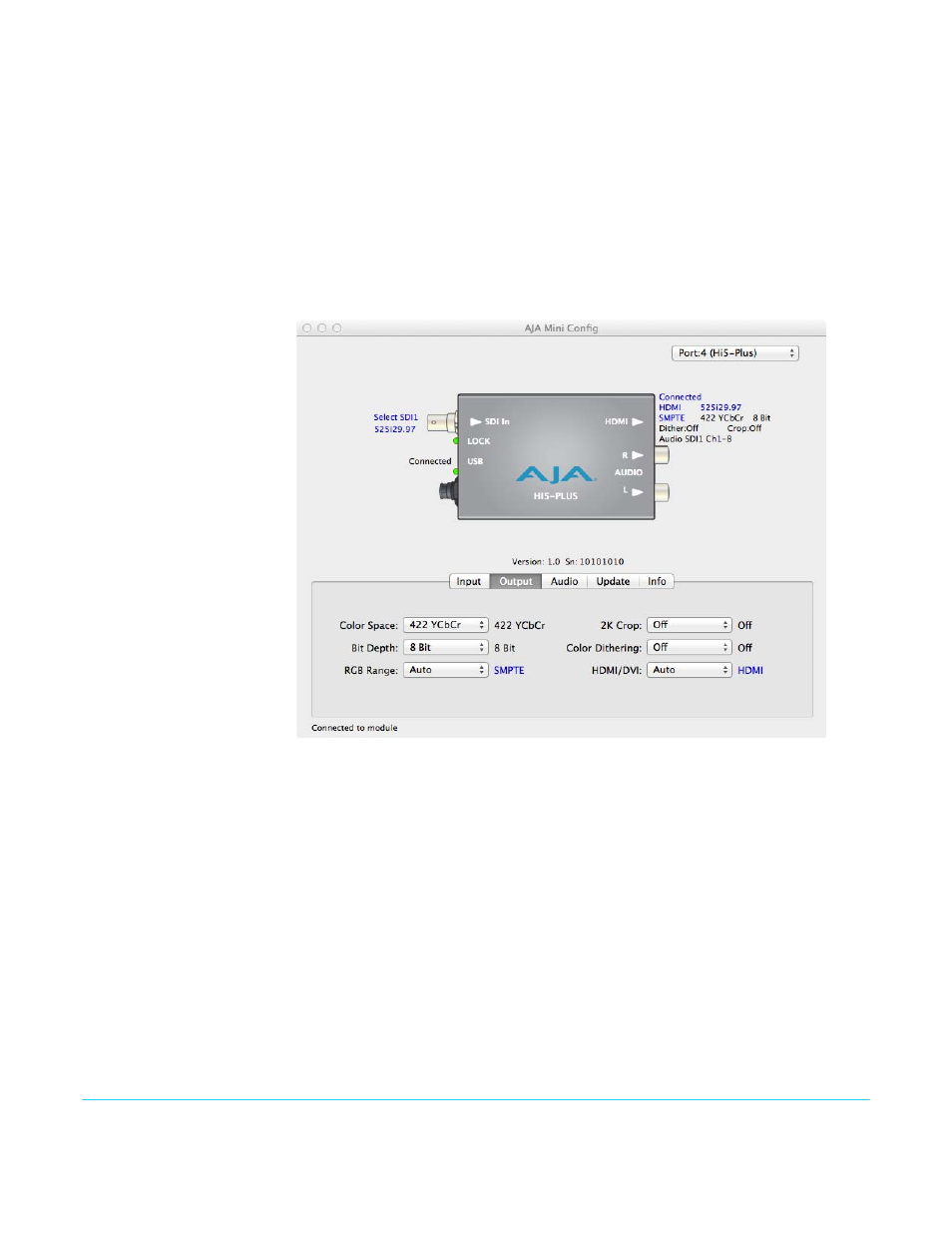

Figure 9. MiniConfig, Output Tab Screen
Output Video
Selections
Color Space: Selects the desired output video format. Choose from the following:
• Auto - selects the video format based on the input video and the attached device's
capabilities.
• 4:2:2 YCbCr
• 4:4:4 RGB
• 4:4:4 YCbCr
Bit Depth: Choose from Auto, 8-bit, 10-bit, or 12-bit. Choosing “Auto” automatically selects the bit
depth based on the input video and the attached device's capabilities.
RGB Range: Choose Auto, SMPTE or Full. Choosing “Auto” automatically selects the input color range
setting.
