3. VIDEO PROC menu:
• Select 1.1 Video Input, and adjust to SDI 1.
• Select 2 Video Output Format, and adjust to 1080i59.94.
• Select 3 Vid 1 Output Mode and adjust to Normal.
• Select 6 Background Fill and adjust to Matte.
• Select 7 Upconvert Mode and adjust to 4x3 Pillar.
You should now see the processed sidebar image on the SDI and HDMI monitors.
• Select 11.3 Matte Hue and adjust to different degree settings. You should see the
sidebar color hue change as you adjust.
This workflow confirms the FS1-X upconverts incoming video with matting.
HD to Letterbox SD
over Video
The following workflow recalls the FS1-X to factory preset, downconverts a 1080i SDI
input to 525i SDI letterbox, keys the letterbox over a second 525i SDI video input, and
displays the result on the FS1-X Composite video output. This processing requires
2 Channel mode.
Setup • Connect a10801i59.94 HD SDI signal to the SDI1 input on the rear of the FS1-X. This
signal will be downconverted and letterboxed.
• Connect a 525i59.94 SD SDI signal to the SDI2 input on the rear of the FS1-X. This signal
will be the background.
• Ensure the FS1-X is receiving a valid reference signal compatible with the SDI2 input.
• Connect the FS1-X Composite video output to an analog video monitor.
Procedure 1. PRESET menu:
• Select 1.0 Factory Preset and recall that preset.
• Front panel interface: Push in the ADJUST knob momentarily.
• Web page interface: Select Factory Preset Recall.
This recall sets the following default values for this procedure:
• SYSTEM 1.1 Vid 1 Input is set to SDI 1
• SYSTEM 1.2 Vid 2 Input is set to SDI 2
• SYSTEM 3 Vid 1 Output Mode is set to Normal
• VIDEO OUTPUT 4 Analog is set to Vid 1.
2. If the FRC option is present, go to the SYSTEM menu:
• Select 10 FRC Enable and adjust to Disable (this sets 2 Channel mode). This menu is
not available on FS1-X units lacking the FRC option.
3. VIDEO PROC menu:
• Select 2 Video Output Format, and adjust to 525i59.94.
• Select 6 Background Fill, and adjust to Vid 2.

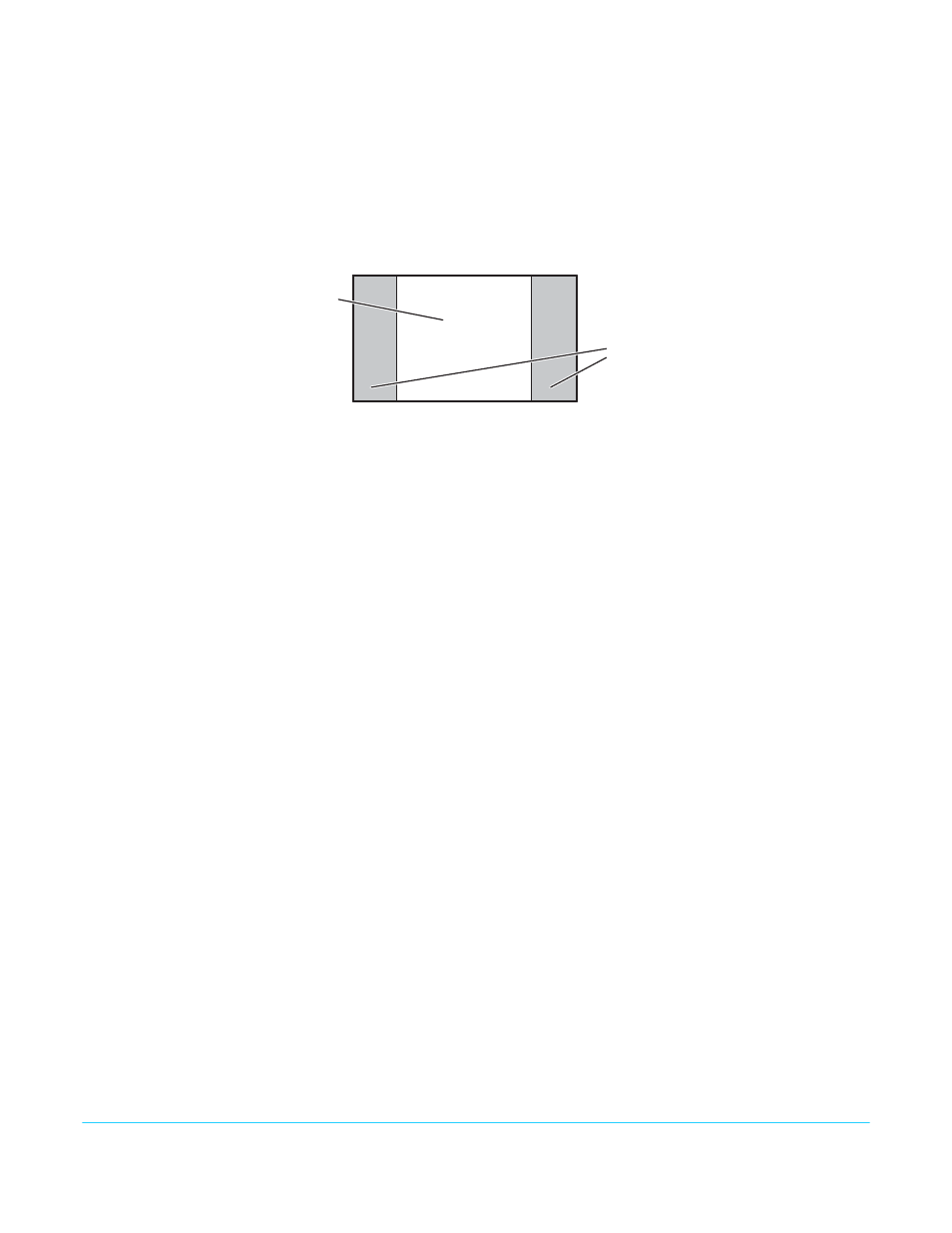

Main
Video
Matte
Sidebars
