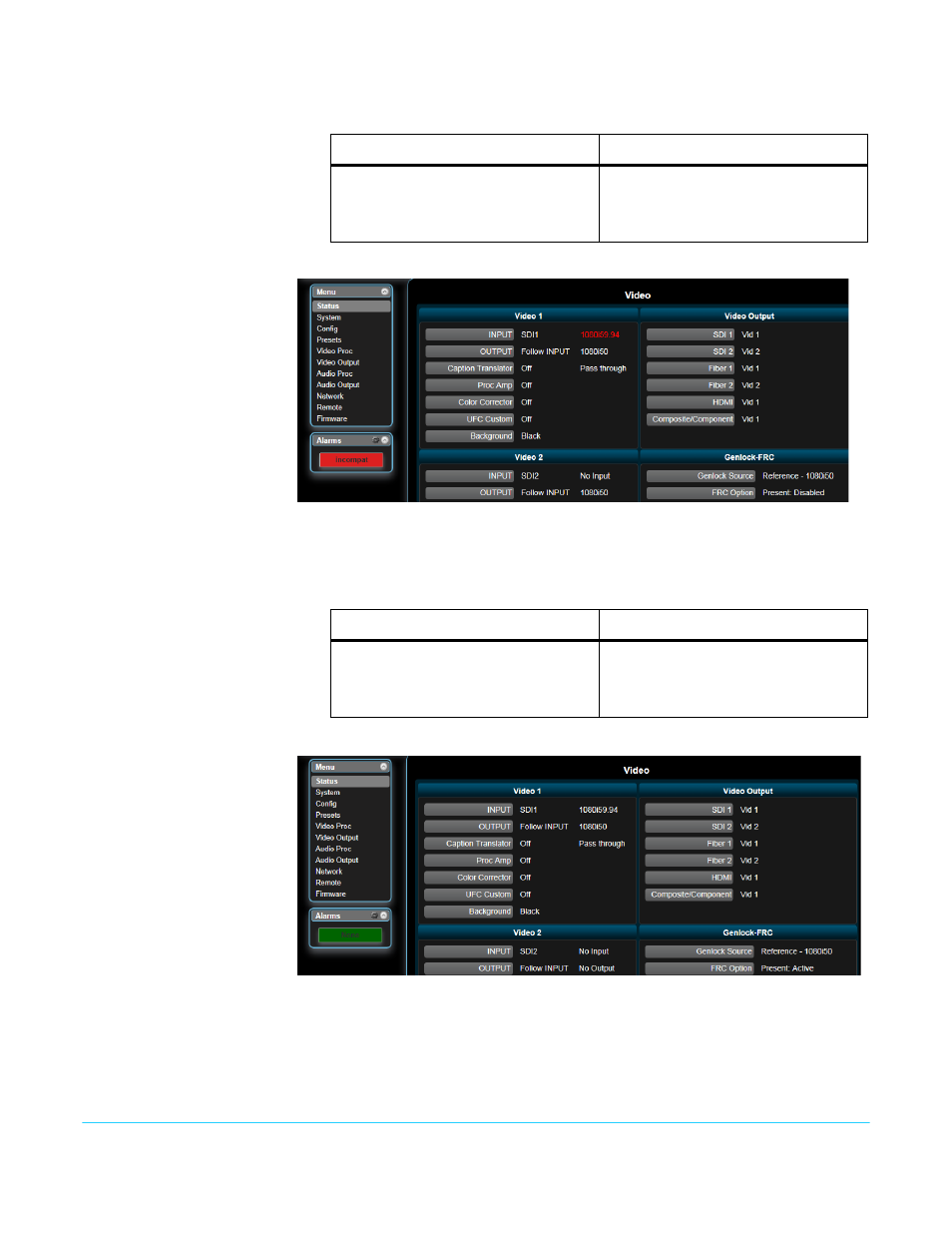

Figure 3. FRC Option Present and Disabled Alarm Condition
4. Observe the monitor. Motion will have momentary jumps, because the FS1-X is
converting with add/drop frames instead of using the FRC.
5. SYSTEM menu:
• Select 10 FRC Enable and adjust to Enable (this restores FRC operation).
Figure 4. FRC Option Present and Active with No Alarm
This workflow confirms an FS1-X equipped with the FRC option can frame rate convert
between frame rate families.
Vid 1 Format Status screen Vid 1 Format Alarm Status screen
IN1 SDI 1 1080i59.94
BKGD Black
GEN Ref 1080i50
OUT1 1080i50
IN1 SDI 1 incompat
BKGD Black OK
GEN Ref OK
OUT1 1080i50
Vid 1 Format Status screen (same) Vid 1 Format Alarm Status screen
IN1 SDI 1 1080i59.94
BKGD Black
GEN Ref 1080i50
OUT1 1080i50
IN1 SDI 1 OK
BKGD Black OK
GEN Ref OK
OUT1 1080i50
