FS1-X v1.0 www.aja.com 3

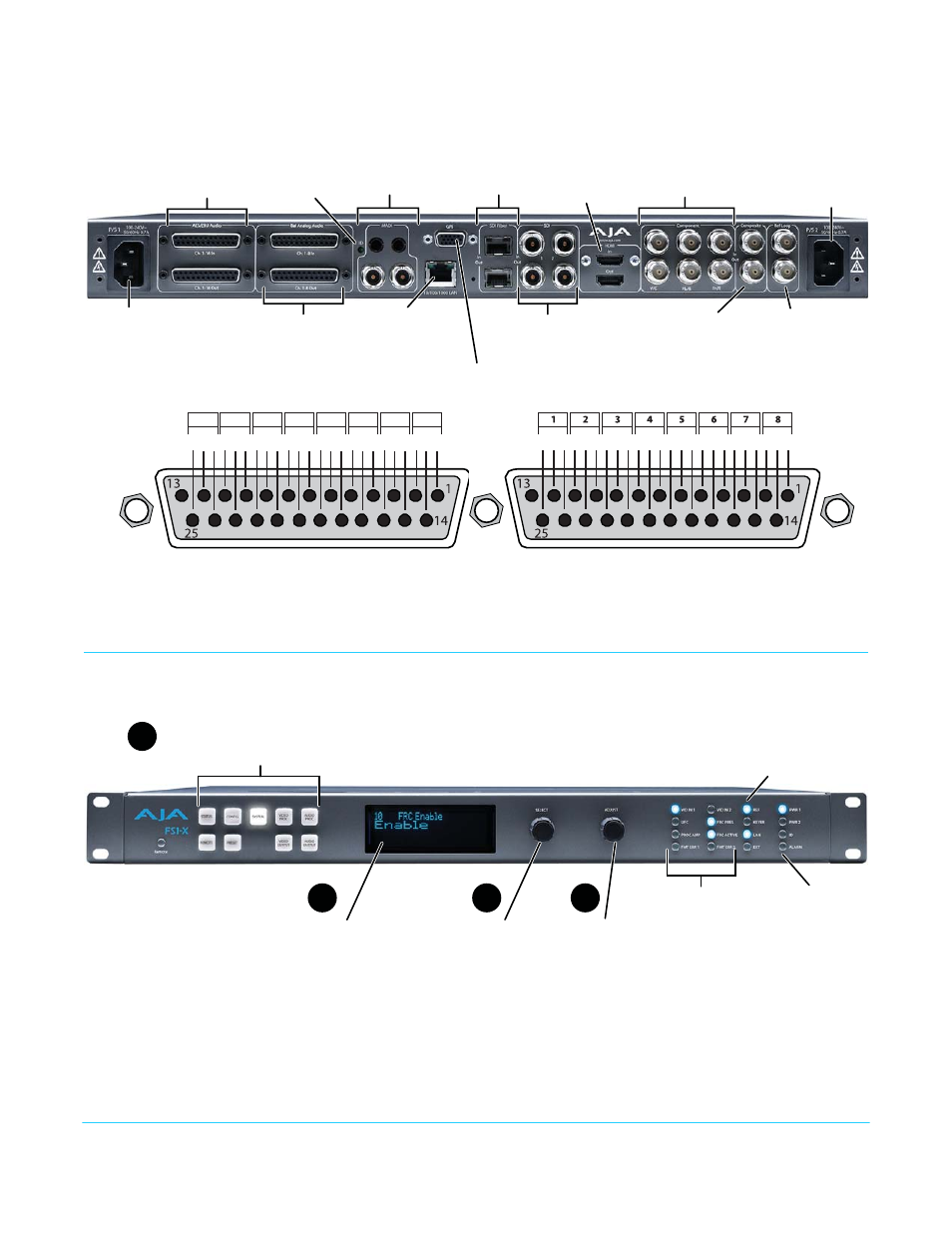

Figure 1. FS1-X Rear Panel
Stand Alone Tests
The stand alone tests can be performed without a computer, using the FS1-X front panel
controls and rear connections.
The following procedures assume the FS1-X is at factory defaults (taken from a newly
opened box). If not set to defaults, the FS1-X may behave differently.
Serial Digital
In/Out BNC
(3G/SD/HD)
Composite
In/Out BNC
10/100/1000
RJ45 Ethernet
LAN Connector
GPI 15-pin
DB-15F Connector
ID
LED
External Reference
I/O with looping
BNC connectors.
AC Power
Socket #2
Autosensing
100 to 240VAC
50/60Hz
AC Power
Socket #1
Autosensing
100 to 240VAC
50/60Hz
MADI Fiber In/Out
and
MADI BNC In/Out
Component
YPbPr and RGB or
Composite
In/Out BNC
Analog Audio In/Out
Channels 1 through 8
DB-25F Connectors
(uses Tascam-style cable)
AES/EBU Digital
Audio In/Out
Channels 1 through 16
DB-25F Connectors
Serial Digital
Fiber In/Out
(3G/SD/HD)
HDMI
In/Out
G G G
15/16 13/14
G
5/6
G
1/2
G
9/10 11/12
G
7/8
G
3/4 AES
Channels
G = Ground
To MUX into unbalanced AES BNC connections, use Balun 75 ohm adapter.
110 Ohm Balanced
- + - + - + - + - + - + - + - + G - + G - + G - + G - + G - + G - + G - + G - +
Analog
Audio
G = Ground -/+ = Balanced Pair
Balanced
Activity
Indicators:
VID In 1/2
UFC, Proc Amp,
FRC Present,
FRC Active
FMT ERR 1/2
Power and
Status Indicators:
Pwr 1
Pwr 2
ID
Alarm
Alphanumeric Display:
Line 1=Parameter
Line 2=Parameter value
Line 3=Status/Legend
Line 4=Status/Legend Select knob:
Scrolls and
selects menus;
Push to undo
changes.
Adjust knob:
Changes
selected value;
Hold down for
default value.
Menu Group Selection Buttons:
Press a button to select
a Menu Group in the display
3 4
Status Indicators:
Ref, Keyer, LAN, EXT
1
2
