EtherFast ® 10/100 LAN Cards
Getting to Know the EtherFast
10/100 LA N C a r d

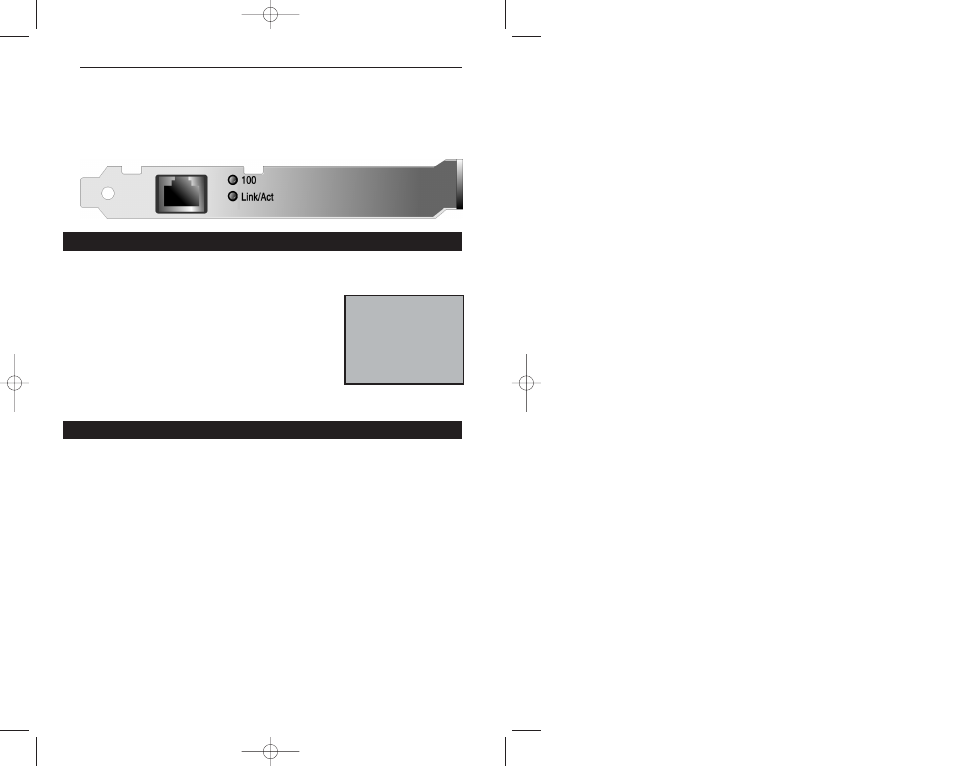

LEDs
Link/Act The Link LED will illuminate when the card has been suc-
cessfully connected to a network and flicker when data is
being transmitted or received over
the network.
100 The 100 LED will illuminate when
the card is operating at 100Mbps.
If the 100 LED is not illuminated
and the PC is powered on, the card
is operating at 10Mbps.
The RJ-45 Port
The RJ-45 Port is where you will connect your Category 3 or 5 network cabling.
See page 67 for detailed information on network cabling.
3
N No otte e:: Some 10/100 LAN
Cards may have the 100
LED labeled Speed. The
LEDs all operate as
shown above, however,
regardless of how they’re
labeled.
