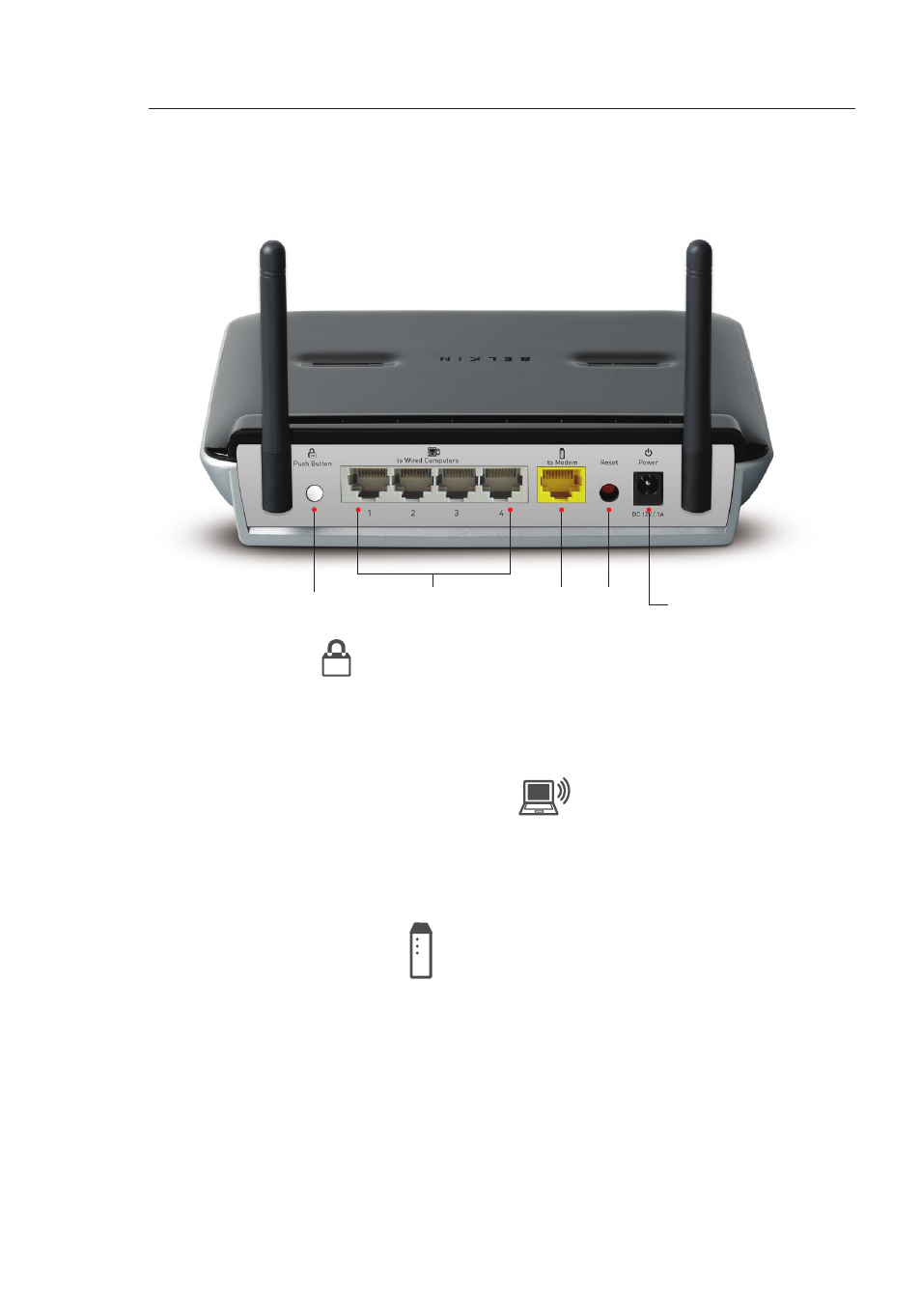

Knowing your Router

G. Push Button - White

This button is set aside for future upgradeable features. Please
check for the latest firmware updates at www.belkin.com/
support.

H. Connections to Wired Computers - Gray

Connect your wired (non-wireless) computers to these ports.
These ports are RJ45, 10/100 auto-negotiation, auto-uplinking
ports for standard UTP category 5 or 6 Ethernet cable. The ports
are labeled 1 through 4, with onboard LEDs on the connectors.

I. Connection to Modem - Yellow

This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the one supplied with the
cable modem may not work properly.
