Lubrication diagram – Braun ULTRA SERIES 05 L200UARS User Manual
Page 47
Page 45
TM
UN
FO
LD
(O
UT
)
FO
LD
(I
N
)
DO
W
N
U
P
Outboard Roll Stop
Hinge (6 places)
Striker Back and
Bridge Plate
Flap Hinges
Horseshoe
Shoulder Bolt
Bridge Plate End
Clevis Pins (2)
Platform Fold
Axles (2)
Platform Pickup
(fold) Bearings (2)
Handrail Pivot
Points (6)
Roll Stop Latch
Pivot Point
Horseshoe
Shoulder Bolt

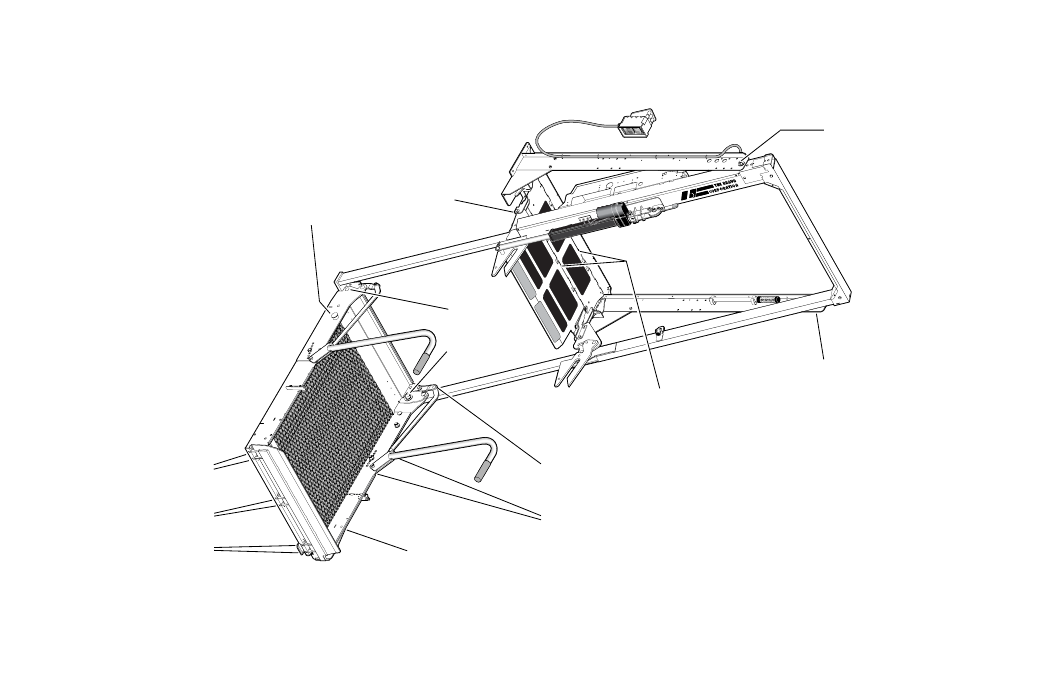

Lubrication Diagram
Note:
LPS2 General
Purpose Penetrating Oil
is available in 1
1
ounce
aerosol cans from
The
Braun Corporation (part
number 15807).
