O P E N C L O S E
18118
HAND PUMP VALVE
HAND PUMP
TO UNLOAD PASSENGER:
1. TO UNFOLD PLATFORM (OUT):
Follow the MANUAL UNFOLD
INSTRUCTIONS posted on the fold
actuator.
2. DOWN (TO LOWER):
Use hand pump handle to open (turn)
hand pump valve counterclockwise
(open 1/2 turn only).
TO LOAD PASSENGER:
1. UP (TO RAISE):
Using hand pump handle:
a. Close hand pump valve clockwise.
b. Insert handle in pump and stroke.
2. TO FOLD PLATFORM (IN):
Removal of actuator is required. Read
manual for details.
Close valve
before operating
electric pump.
MANUAL
INSTRUCTIONS
Manual Up/Down (Backup Pump) Instructions
Release Valve
maximum
30 inch lbs
minimum
15 inch lbs
seats
(stops)
O
P
E
N
C
L
O
S
E
approximate
1/16" intervals
Valve Tightening
Specification:
Once valve seats
(stops), tighten 15
to 30 inch pounds
as shown.
Release
Valve
Note: Close backup
pump release valve
securely before operating
electric pump.

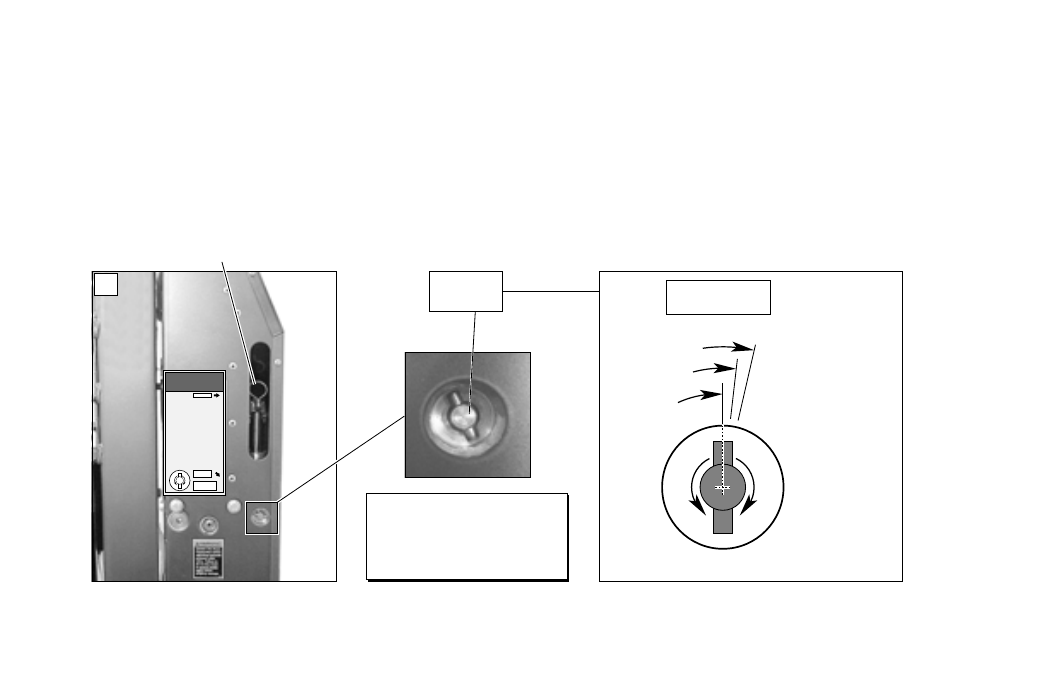

pump side tower) provides
manual up and down instructions
also. A manual backup pump (hand
pump) and pump handle are
provided to manually lower and raise the platform and the out-
board roll stop. Manual Instruc-
tions decal 18118 (posted on
Manual Backup Pump
A
