Express® Lavatory System SS-Series
SS-3/AST/WH97TAS
Installation - Obsolete
8 4/24/08 Bradley Corporation • 215-1240 Rev. E; EN 08-805
Installation Instructions continued . . .
Step 3: Install bowl assembly
IMPORTANT: Moving and positioning the bowl will require more than one person.

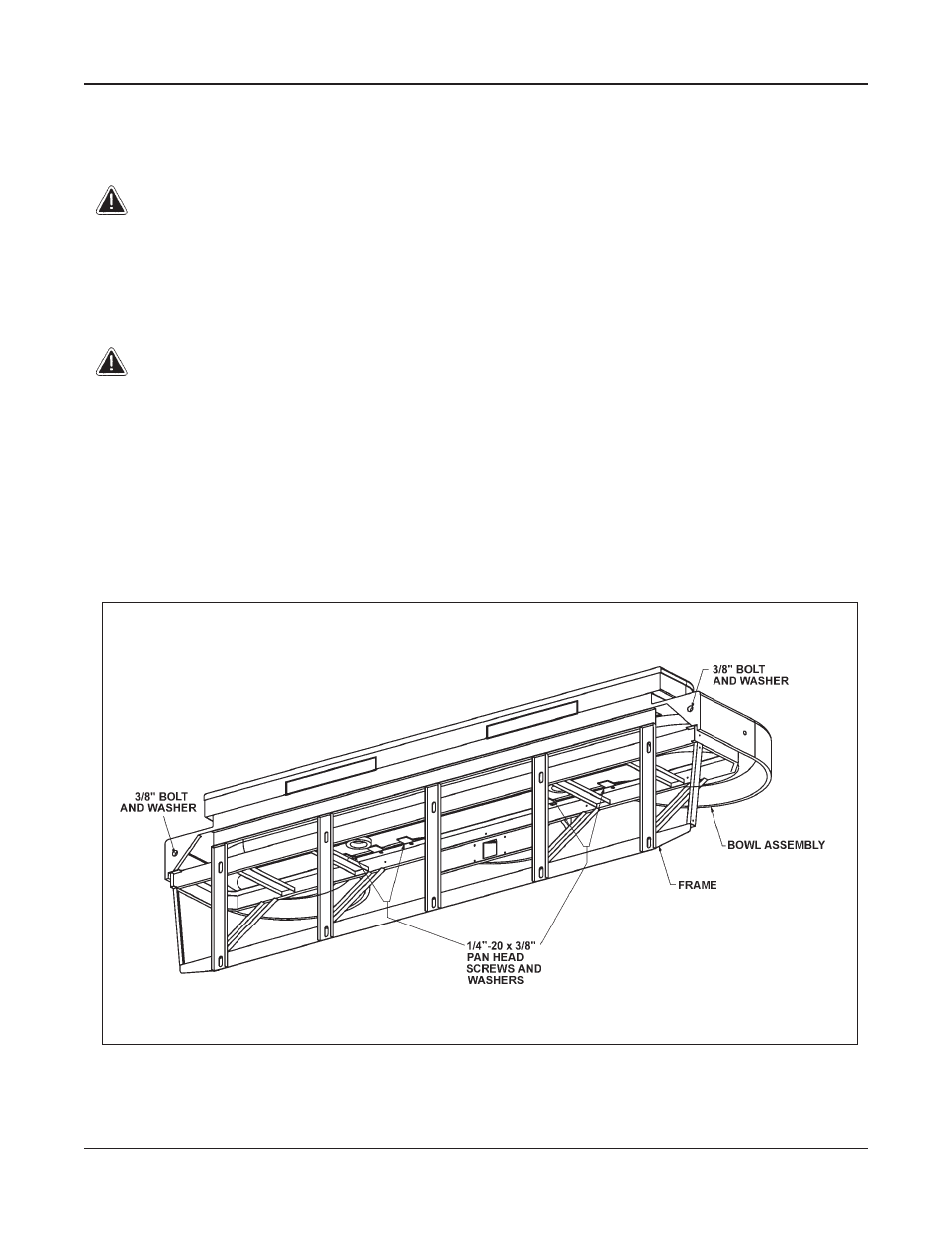

Note: Refer to Figure 5 below when installing the bowl assembly.
1. With someone to assist you, place the bowl assembly squarely onto the frame.
2. Attach the front of the bowl assembly to the frame using the four 1/4"-20 x 3/8" pan-head
screws and washers provided. Do not tighten screws at this time.
IMPORTANT: When bolting the bowl assembly to the frame and wall, do not
overtighten the bolts. Overtightening bolts can damage the
Terreon® material.
3. After the bowl assembly is attached to the frame, use two 3/8" bolts and washers (supplied
by the installer) to bolt the bowl to the wall anchors.
4. Tighten the screws installed in procedure #2 above to secure the bowl assembly to the frame.
Do not overtighten.
Installation Instructions continue...
Figure 5
BACK VIEW
