Express® Lavatory System SS-Series

Installation - Obsolete

SS-3/AST/WH97TAS

7

Bradley Corporation • 215-1240 Rev. E; EN 08-805

4/24/08

Installation Instructions continue . . .

Installation Instructions continued . . .

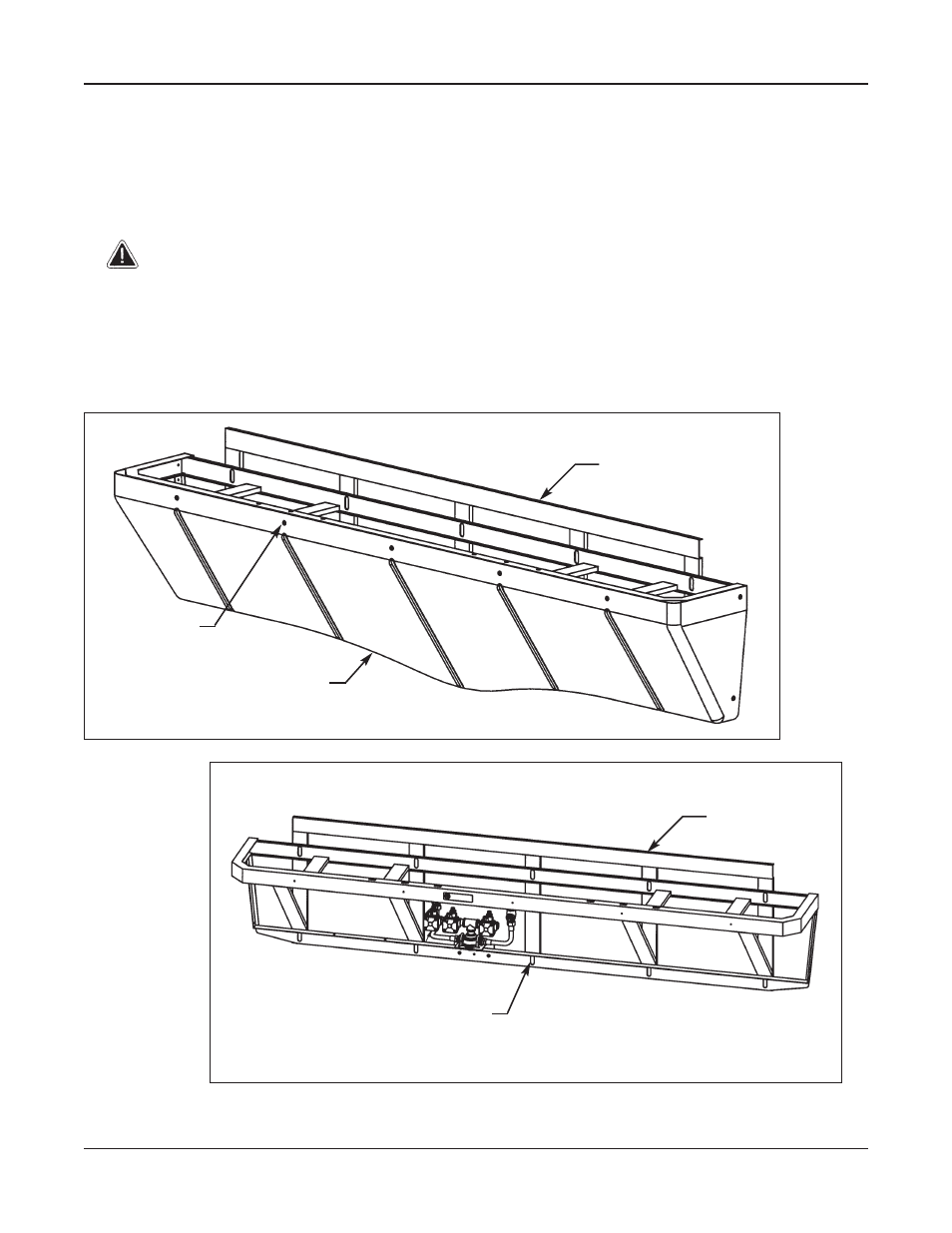

Step 2: Mount frame to wall

1. Remove the nine Torx-head screws securing the panel to the frame, and remove the panel

(see Figure 3).

2. Position the frame against the wall, ensuring that it is level.

IMPORTANT: Anchoring the frame to a wall that is not flat may cause the frame to

bend. If necessary, install shims to compensate for wall distortion.

3. Ensure that the back of the frame is flat against the wall. If wall is not flat, insert shims

behind the frame to ensure that it will not bend when anchored.

4. Once you have positioned the frame such that it is level and flat against the wall or shimmed,

use the 3/8" bolts and washers to mount the frame to the wall (see Figure 4).

Figure 3

(9) TORX-HEAD

SCREW

FRAME

PANEL

Figure 4

3/8" BOLTS

AND WASHERS

FRAME
