Rev 0.0/11-13 25 P2-DC2: #35114
1
2
3
4 5
6
7
4
5
8
10
11
12
9

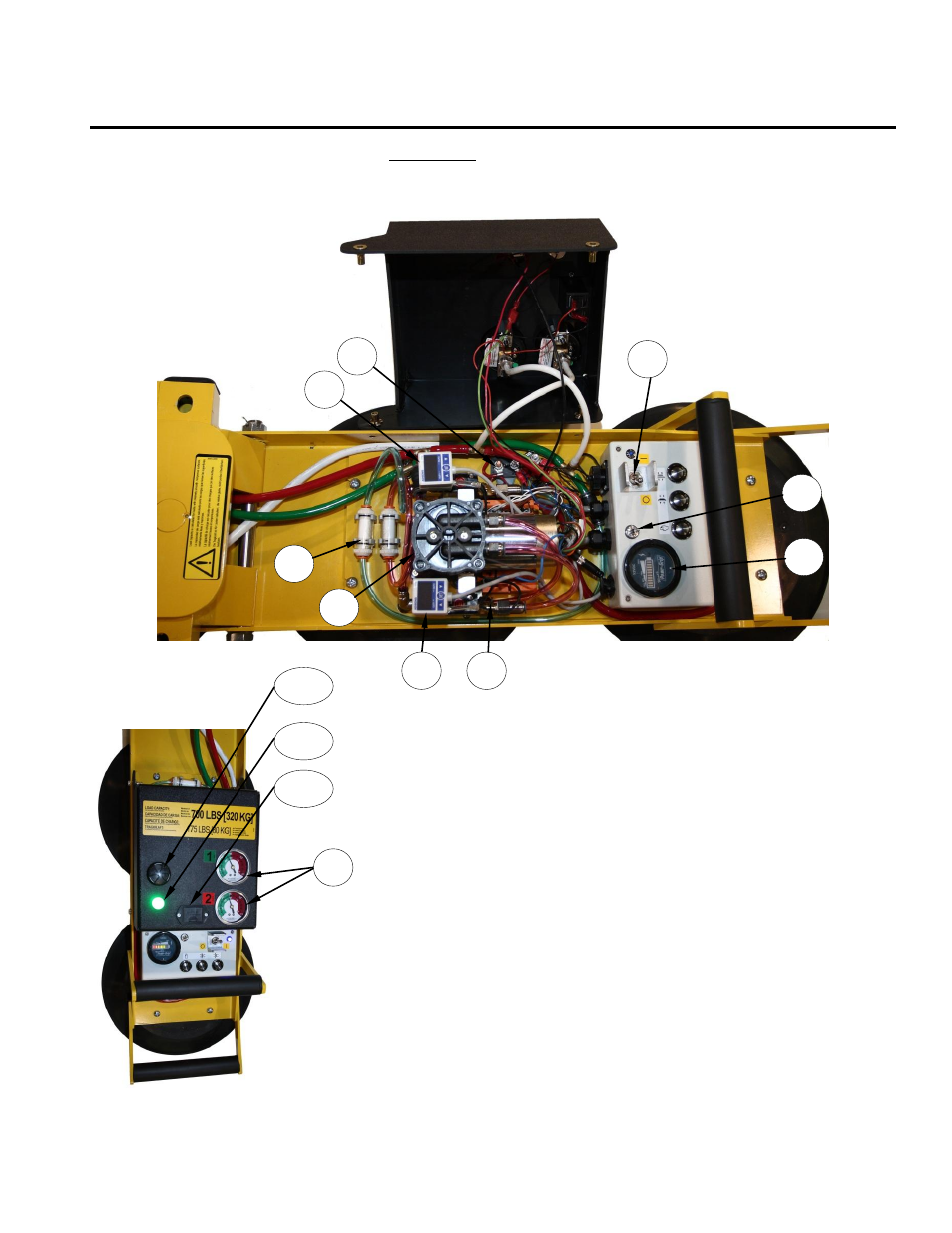

MAINTENANCE FEATURES
Note: Components shown here are underlined on their first appearance in each section to follow.
Both pad channels are equipped with a complete set of these components.
1 POWER SWITCH
2 BATTERY TEST SWITCH
3 BATTERY GAUGE
4 CHECK VALVE
5 VACUUM SWITCHES
6 VACUUM PUMP
7 AIR FILTERS
8 CIRCUIT BREAKER
9 VACUUM GAUGES
10 POWER LOSS WARNING BATTERY HOLDER
11 VACUUM LIFT LIGHT
12 LOW VACUUM/POWER LOSS WARNING BUZZER
