Rev 0.0/11-13 9 P2-DC2: #35114
A4

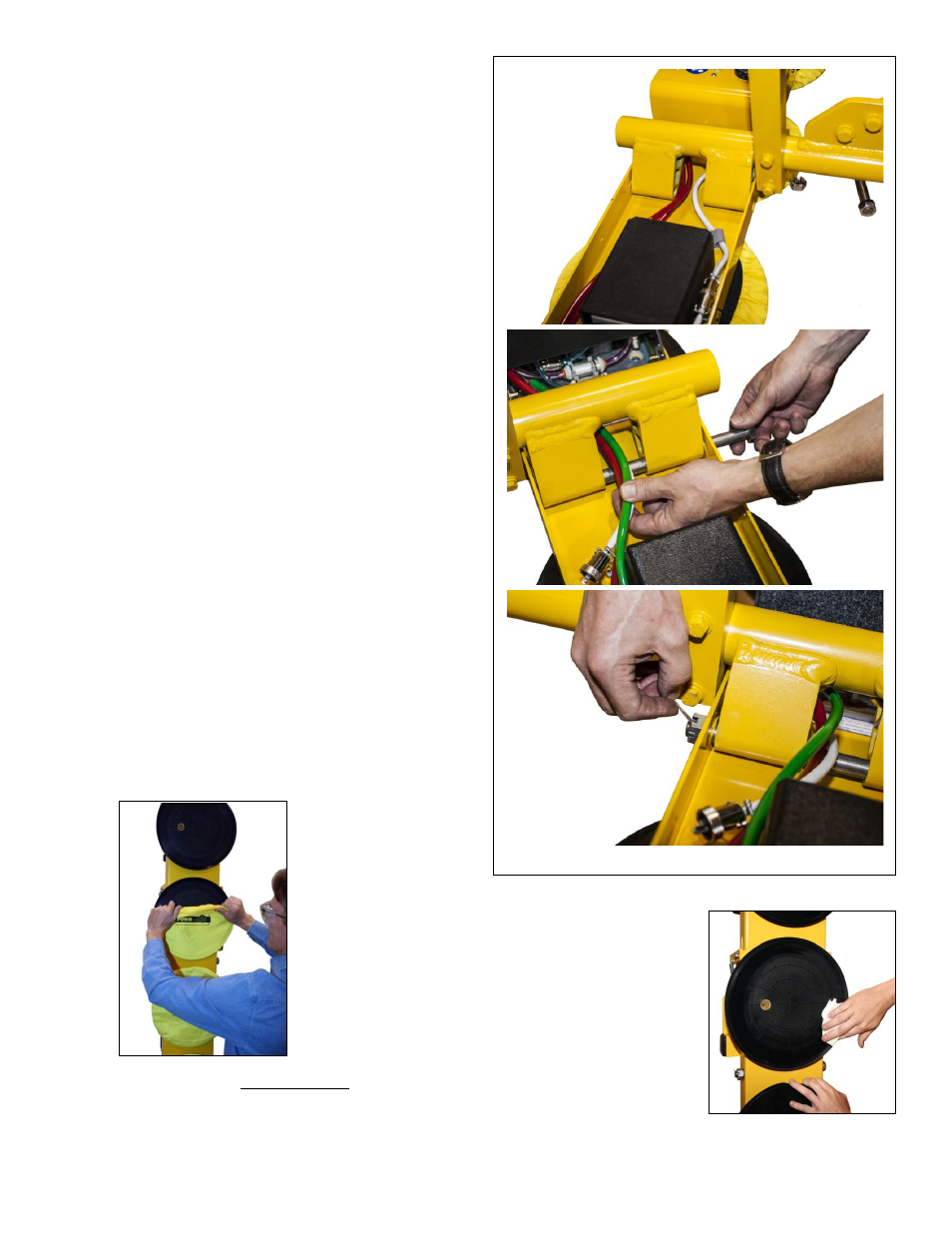

Align the mounting holes on the lift frame
with those in the pad channel (see figure
A4).
Insert a tilt pin through the holes in one
pad channel, underneath the vacuum hoses
and wiring, as shown.
Caution: To avoid damage, do not
place tilt pin on top of
vacuum hoses or wiring.
Secure the tilt pin using the hardware
supplied, as shown. Note: Place the flat
washers on the outside of the channel.
Caution: Replace used cotter pins
each time lifter is assembled
(see REPLACEMENT PARTS).
Repeat these steps to attach the second
pad channel securely to the lift frame.
Use the hoisting equipment to raise the
lifter. Remove the pad covers as shown,
and save them for use whenever the lifter
is stored.
4) Make sure the vacuum pads are clean (see MAINTENANCE: V
ACUUM
P AD M AINTENANCE : Pad Cleaning).
