Positioning the Lifter on the Load
1) Make sure that the contact surfaces of the load and all vacuum pads
are clean (see MAINTENANCE: V
ACUUM
P
AD
M
AINTENANCE
).

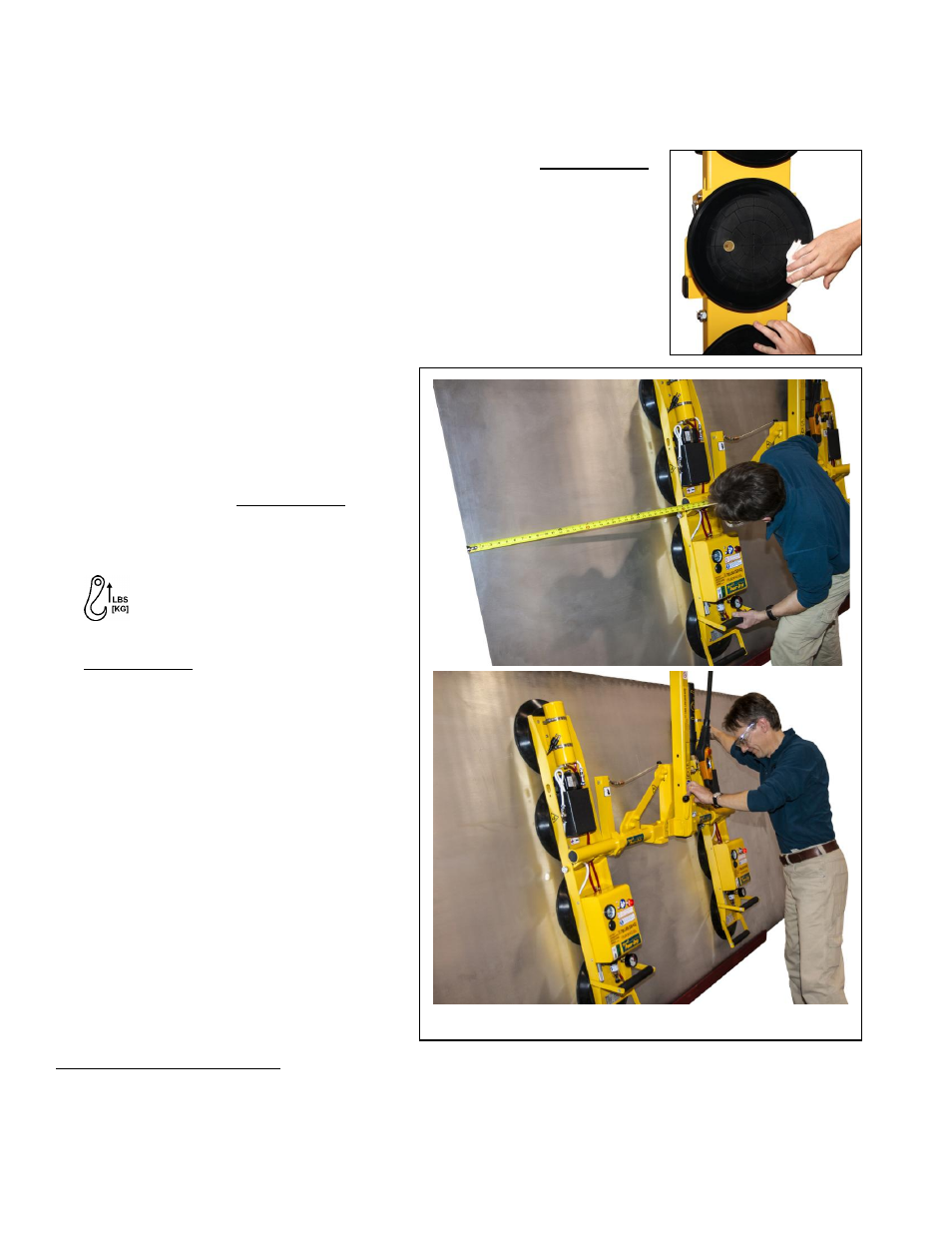

2) Center the lifter on the load (see
figure B1), to avoid unexpected
rotation or tilt (see T
O
R
OTATE THE
L
OAD
E
DGEWISE
or T
O
T
ILT THE
L
OAD
to
follow). 10
3) Make sure that all vacuum pads will fit
on the load (see SPECIFICATIONS:
Maximum Pad Spread) and that the
pads will be loaded evenly (see
SPECIFICATIONS: Per-Pad
Load Capacity).
4) Apply the lifter to the load so that all
vacuum pads are touching the contact
surface, as shown.
10
The lifter is designed to handle the maximum load weight (see SPECIFICATIONS: Maximum Load Capacity) when the load’s
center of gravity is positioned within 2" [5 cm] of the lifter’s rotation axis. Occasional loading deviations are permissible, provided
that the operator can maintain control of the load at all times and that the load weight is low enough to avoid damaging the lifter.
