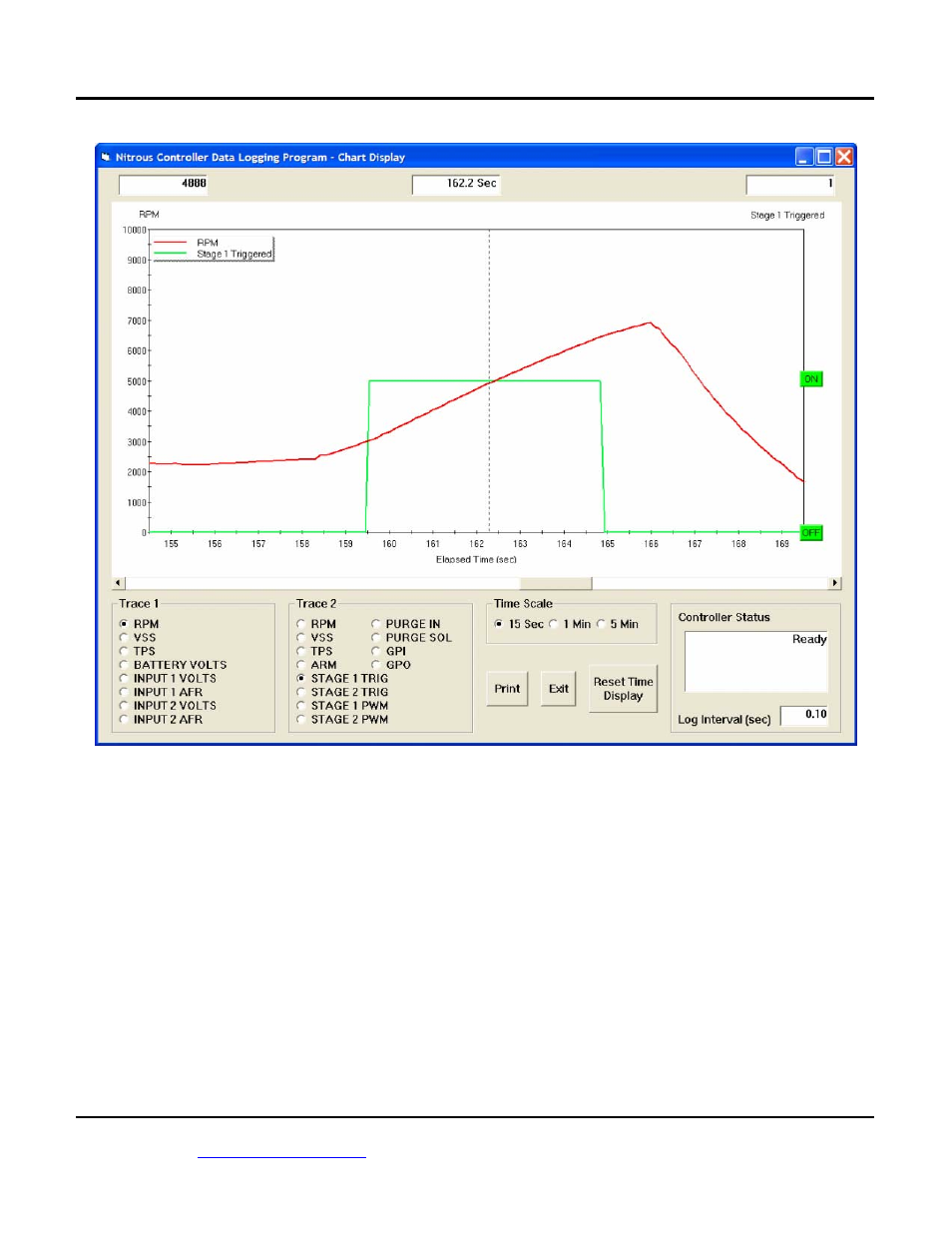

Figure 12 – Data Logging Chart Display
The X axis is always elapsed time. You can
select from one of three time scales. You can use the
scroll bar to move the chart display window in terms of
elapsed time. If you hold the left mouse button down
within the chart area, a cursor line appears. The exact
values of the parameters displayed on trace 1 and
trace 2 and the elapsed time appear in windows above
the chart. If you want to analyze the elapsed time
between two events (for example the time required to
accelerate from 0 to 60 MPH), you can move the
cursor to the first event and then click on the Reset
Time Display button. You can print the displayed chart
to any Windows printer by clicking on the Print button
(a color inkjet printer is recommended for best results).
Data parameters include:
RPM – engine crankshaft RPM
VSS – vehicle speed in MPH
TPS – throttle position (0 to 100%)
BATTERY VOLTS – battery voltage
INPUT 1 VOLTS, INPUT 2 VOLTS – analog
input voltage
INPUT 1 AFR, INPUT 2 AFR – air/fuel ratio
based on the exhaust gas oxygen sensor
reading (10:1 to 20:1). Only applicable if a wide-
band system has been connected to the analog
inputs
ARM – input displayed as a digital (on/off) signal
PURGE IN – input displayed as a digital (on/off)
signal
PURGE OUT – output displayed as a digital
(on/off) signal
