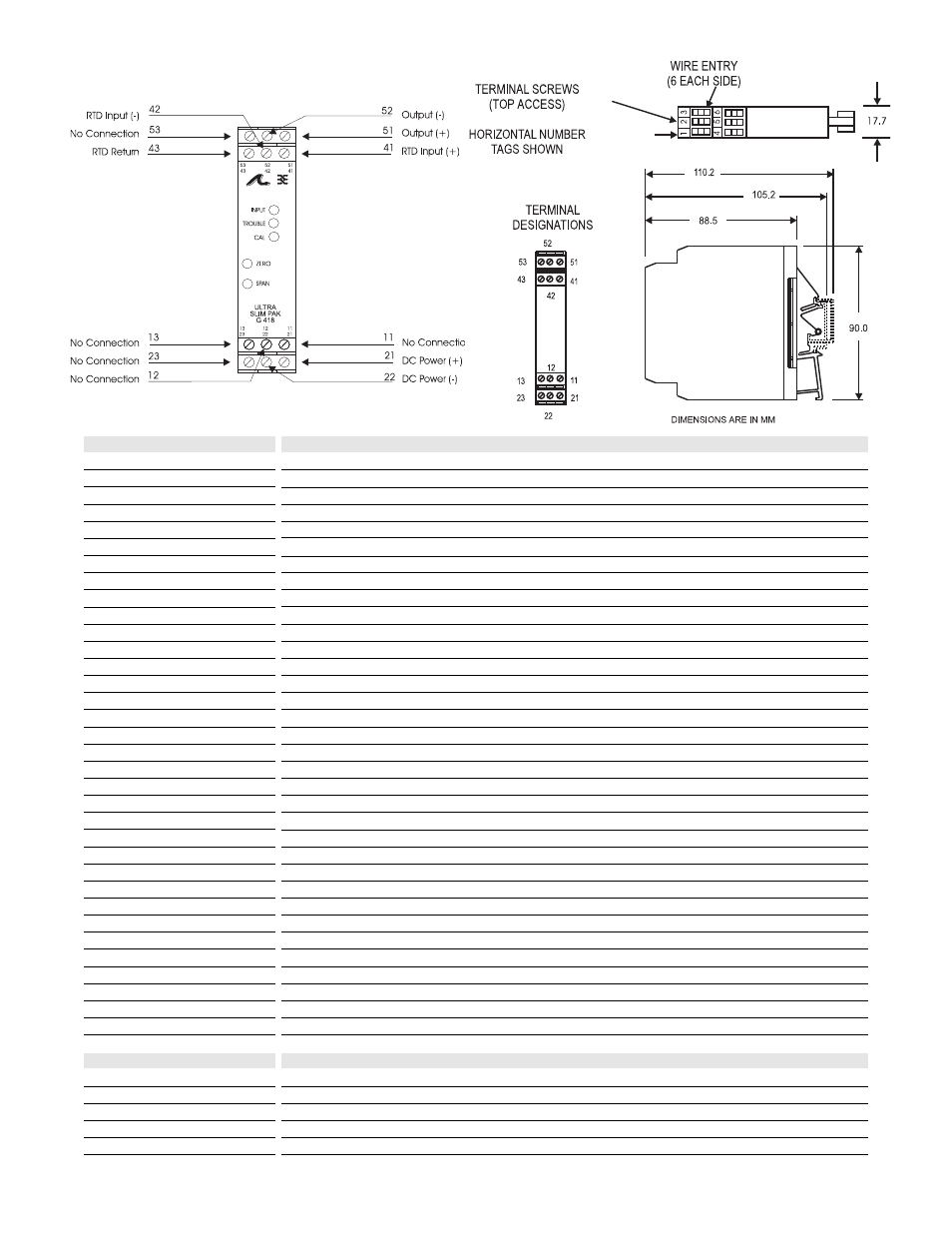

Rated data
Input
Range
Impedance
Maximum ratings / type of protection
Field device excitation
Other input specification
Other input specification
Output
Range
Load
Burnout level
Zero / Span adjustment
Protection
Other output specification
Other output specification
Supply
Range
Consumption
Other supply specification
General
Accuracy
Temperature coefficient (drift)
Transmission frequency
Response time. 90% span
Status LED
Isolation (# of ports)
Operating / Storage temperature
Housing (mounting)
Dimensions (L x W x H)
Wire range (conductor size)
Insulation stripping length
Tightening torque
Approvals
Ordering data
Ultra SlimPak
Heat sink (width)
Shunt resistor
RTD temperature sensor, 3 wire
-200 to 600°C for Pt100/Pt500/Pt1000, -200 to 260°C for Cu10/Cu25/Cu100, DIP switch selectable
<2mA for Pt100, Pt500, Pt1000; <5mA for Cu100; <10mA for Cu10, Cu25
leadwire resistance: 40% of base sensor resistance or 100 M (whichever is less), max. per lead
leadwire effect: less than 1% of selected span over entire leadwire resistance range
DC current or voltage
0-1mA, 0-20mA, 4-20mA, 0-5Vdc or 0-10Vdc, DIP switch selectable
<7.5k M (0-1mA), <600M (0/4-20mA), >500M (0-5V), >1000M (0-10V)
0 to 50% of full scale input / 50 to 100% of full scale input
DC voltage
9 to 30Vdc, inverter isolated
1.5W typ., 2.5W max. (300mA inrush at 9Vdc)
±0.1% of the max. input temperature range configurable for the RTD type, 0.2% max., at 25°C ambient and
0 M lead resistance
±0.015% of the maximum input temperature range for the RTD type/°C change in ambient temperature, max
<200mS typical
input green (>110% of input: 1Hz, <-10% of input: 0.5Hz, open circuit on input +: 8Hz, open circuit on RTN
or input -: 4Hz); calibration yellow (ON=OK)
1800V (3 port) between input, output and power
0 to 55°C / -25 to 70°C
EG12 (TS32 and TS35)
90mm x 17.7mm x 112.7mm max.
22-12AWG (0.5-4.0mm 2 )
7mm
0.4-0.8Nm
CSA (file LR-42272), UL (file E99775), CE marked (EMC dir. 89/336/EEC, LV dir. 73/23/EEC)
Cat. No.
G418 (factory calibration:-200 to 600°C (Pt100) In, 4-20mA Out)
HS01-A (1.6mm) (conditionally required depending on installation, see heat sink data)
Note: G418-000X where X is the revision level. For 2 wire sensors: connect RTN and - externally.
Specifications subject to change without notice. 99990007 - 8/98 Printed in Canada
TS32 RAIL
TS35 RAIL
