Weidmuller G168 Ultra SlimPak - Manual (Page 4)

Rated data
Input
Range
Impedance
Maximum ratings / type of protection
Field device excitation
Other input specification
Other input specification
Output
Range
Load
Burnout level
Zero / Span adjustment
Protection
Other output specification
Other output specification
Supply
Range
Consumption
Other supply specification
General
Accuracy
Linearity
Temperature coefficient (drift)
Transmission frequency
Response time. 90% span
Status LED
Isolation (# of ports)
Operating / Storage temperature
Housing (mounting)
Dimensions (L x W x H)
Wire range (conductor size)
Insulation stripping length
Tightening torque
Approvals
Ordering data
Ultra SlimPak
Heat sink (width)
Shunt resistor
AC current or voltage (40 to 400Hz)
0-10mAac to 0-100mAac or 100mVac to 250Vac, DIP switch selectable
20 M for current, >100kM for voltage
200mAac, 60V peak for current, 300Vac for voltage / self resetting fuse
2 form C relays (2 SPDT), one set point per relay, gold flash / silver alloy
2 set points independently adjustable over 100% of the selected input span, HI or LO, failsafe or non-failsafe
maximum 5A at 120Vac, 2A at 240Vac, 5A at 28Vdc (resistive load), minimum 10 HA at 10mV
deadband adjustable from 0.25% to 5% of span (span >50mV or >5mA) and from 1% to 5% of span (span
<50mV or <5mA)
external relay contact protection required for inductive load switching
Electrical life: 10 5 operations at rated load
Mechanical life: 10 7 operations no load
DC voltage
9 to 30Vdc, inverter isolated
1.5W typ., 2.5W max. (300mA inrush at 9Vdc)
0.2% of full scale
±0.025% of full scale/°C, max.
<250mS in normal mode, dynamic deadband: relay status will change when proper setpoint/process
condition exists for 100mS
input green (>110% of input: 8Hz), 2 setpoint red (ON: tripped, OFF: safe)
1800V (3 port) between contacts, input and power
0 to 55°C / -25 to 70°C
EG12 (TS32 and TS35)
90mm x 17.7mm x 112.7mm max.
22-12AWG (0.5-4.0mm 2 )
7mm
0.4-0.8Nm
CSA (file LR-42272), UL (file E99775), CE marked (EMC dir. 89/336/EEC, LV dir. 73/23/EEC: input
≤
50Vac only)
Cat. No.
G168 (factory calibration 0-500mVac, A - HI/B - LO, Non-failsafe)
HS01-A (1.6mm) (conditionally required depending on installation, see heat sink data)
C006 (0.1 M, 1%, 5W for use with external current transformer)
Note: G168-000X where X is the revision level
Specifications subject to change without notice. 99990012 - 8/98 Printed in Canada

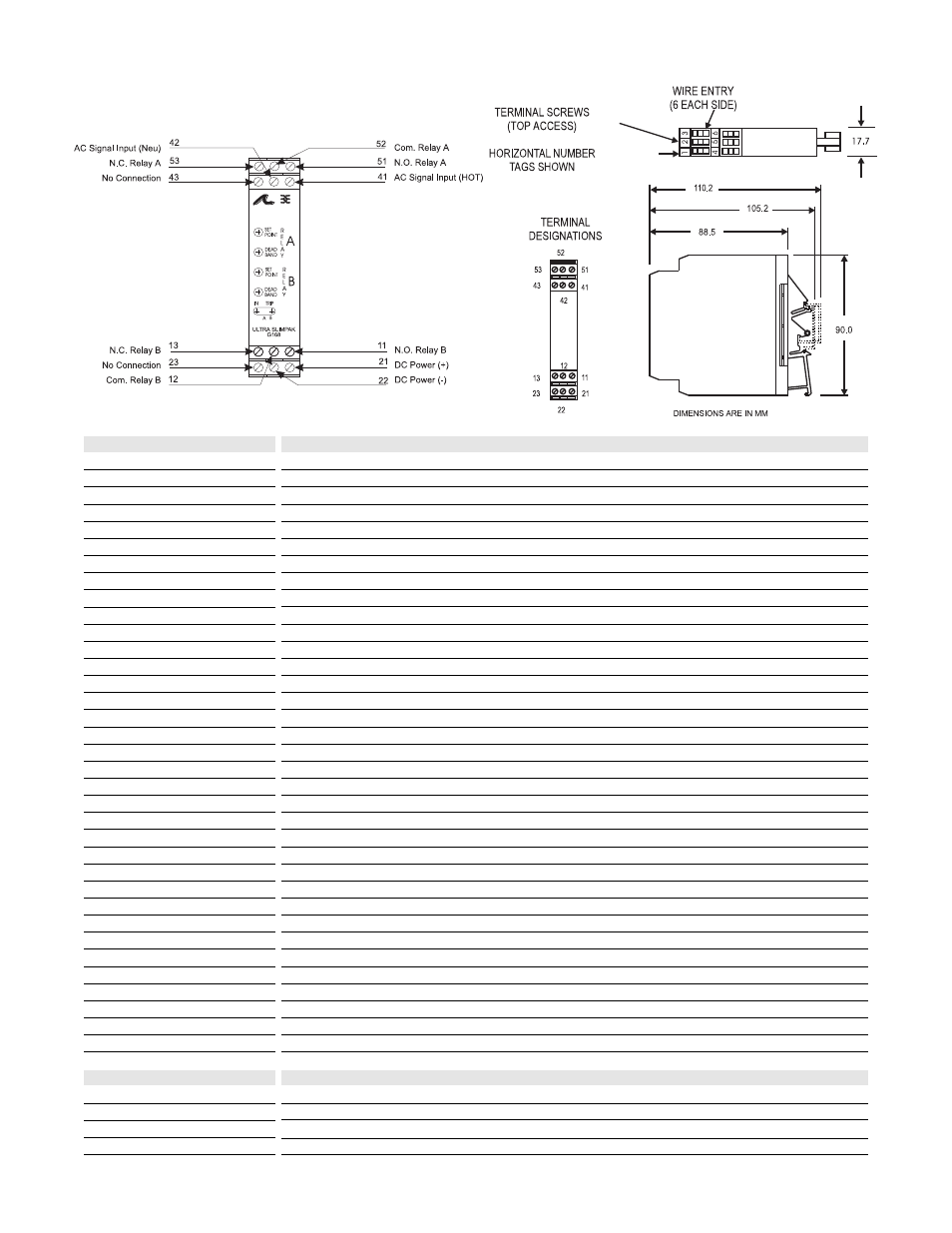

TS32 RAIL
TS35 RAIL
