WarmlyYours Environ Flex Roll System For laminate/floating wood & engineered wood floor coverings - Manual (Page 8)

6
Installing the thermostat
If you are using a thermostat with a floor sensor, place the sensor under the Environ™ Flex Rolls, centered between two heat wires, at least 6” (150 mm) into the
heated area.
Make a small divot in the underlayment in this spot and secure the sensor head in the divot with tape. Run the sensor cable in a channel cut into the underlayment
from the heater and back to the thermostat. The “heater wires” within the roll are identified as raised parallel lines. The sensor wire should not cross over the foil heater
wires, and is better placed in a channel cut into the underlayment, under the roll.

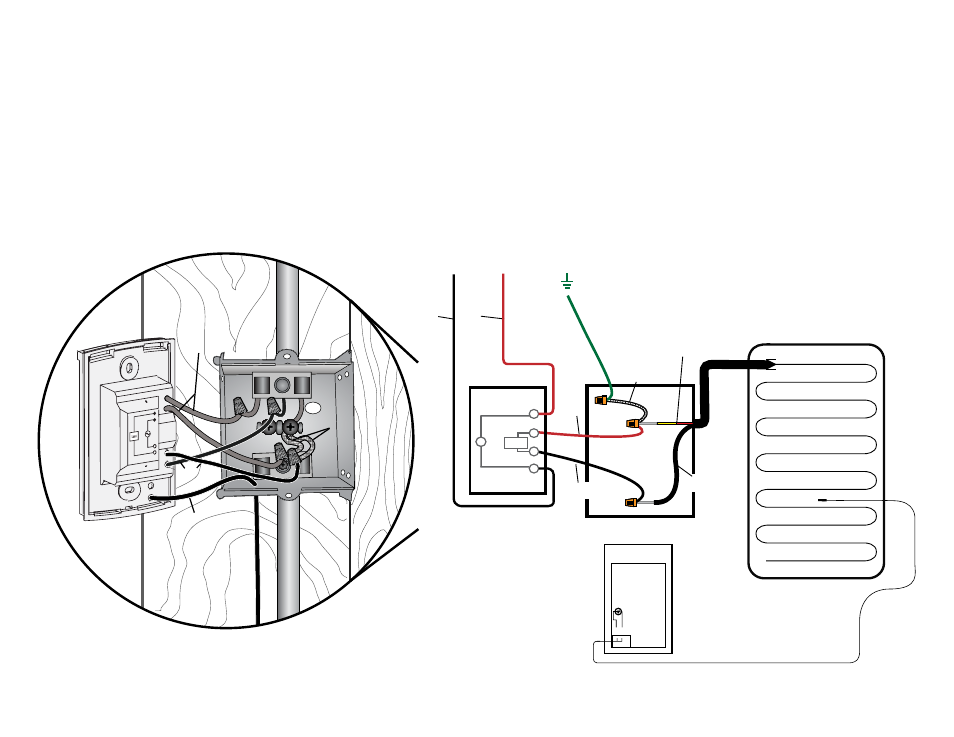

HOT
THERMOSTAT SENSOR
(LOW VOLTAGE)
FROM POWER SOURCE 120V & 240V
SENSOR
Front
PB112C-GA
1 2
ENSURE THE SYSTEM IS GROUNDED
HOT (240V) or
NEUTRAL (120V) HOUSE GROUND
Red (240) or
Yellow (120) Wires
Red Black
Red
Copper
Ground
4x4 Box
Black
Black Lead
THERMOSTAT
Load
S
L2 (N)
L1 (L)
E
F
RED
BLACK
SENSOR
GROUND
