10059-E
Rev 3/2013
Installation Support • No Nonsense™ Warranty • (800) 875-5285 • www.WarmlyYours.com

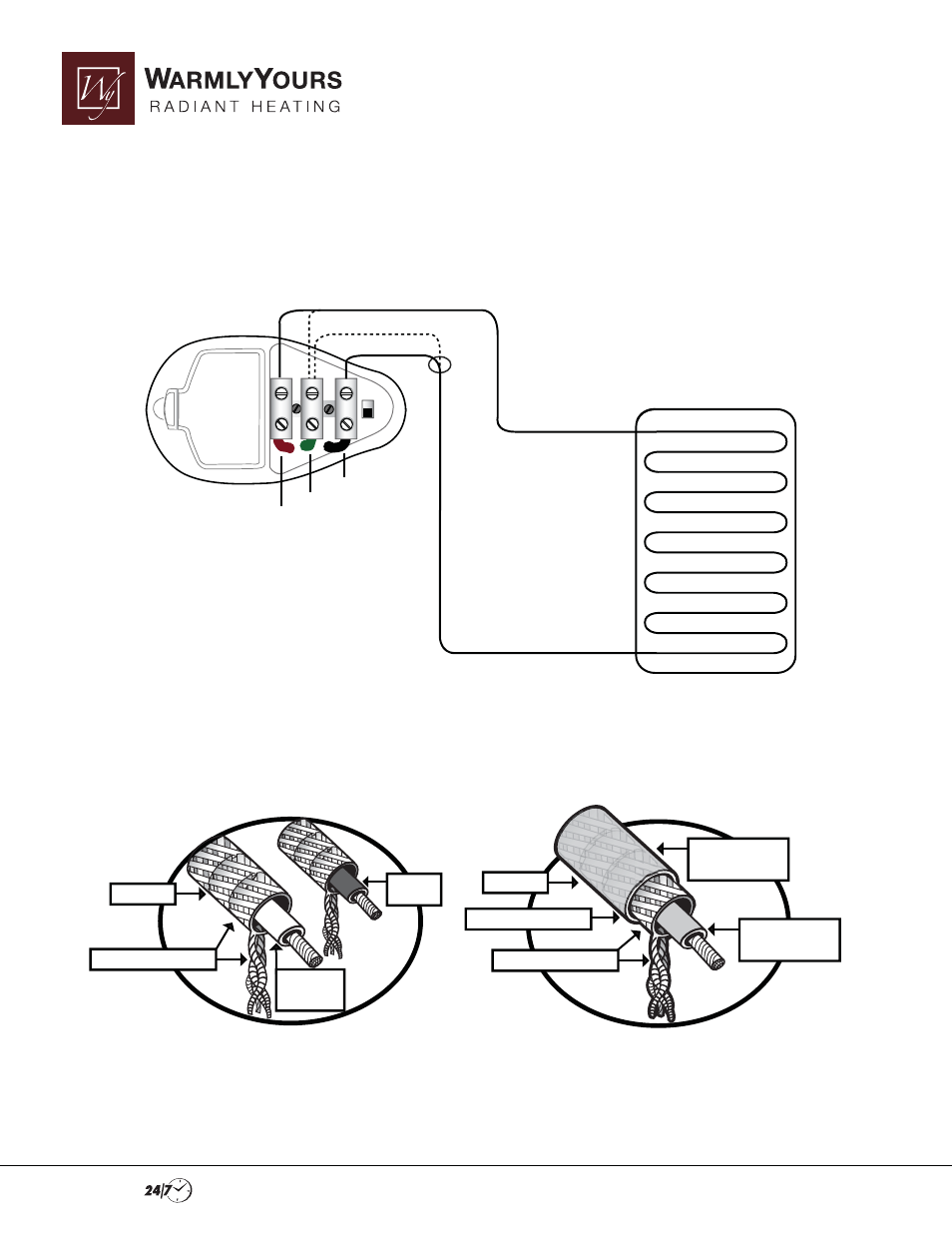

Wiring Tempzone to Circuit Check
SHEATH
CORE
CORE
Ending Wire 2
From Warming System
Beginning Wire 1
From Warming System
O
N
O
F
F
BLACK
GREEN
(Sheath) RED
1. “Beginning” wire is the lead wire from the start of the warming system roll.
2. “End” wire is the lead wire from the end of the warming system roll.
Notes:
BRAIDED GROUND SHEATH
COLD LEAD
RED 240V
OR
WHITE 120V
BRAIDED GROUND SHEATH
COLD LEAD
TAPE INDICATORS
RED 240V OR
YELLOW 120V
Wire Construction
TempZone Single Conductor Mats TempZone Standard and Custom Fit Mats
Circuit Check Installation
for TempZone Single, Standard
and Custom Fit Mats
Page 2
BLACK
RETURN
WIRE
OUTER INSULATION LAYER
INNER
INSULATION
LAYER
