Windage and Elevation Adjustment
The Vortex 3x32 Crossbow scope uses finger-adjustable
elevation and windage knobs. To make an adjustment in the
point of impact, turn the adjustment knob in the appropriate
direction as indicated by the Up/Down, Left/Right arrows—
moving in the direction you wish the point of impact changed.
For example, if the bolts are striking right of center, move the
point-of-impact to the left.
Each windage and elevation knob uses 1 MOA clicks for a total
of 30 MOA clicks per revolution. Each MOA click corresponds
to .2 inches of movement at the recommended 20 yard sight-in
distance. One complete revolution of the windage or elevation
knob yields six inches of adjustment at 20 yards.
Example
At a 20 yard sight-in distance, you would need to
rotate the knob 15 clicks (or 1/2 revolution) to move
the point-of-impact three inches.
When shooting at distances other than 20 yards and making
adjustments, be aware the increments will change. For example:
1. At 10 yards, each click will yield .1 inch of travel
(3 inches per knob revolution).
2. At 30 yards, each click will yield .3 inches of travel
(9 inches per knob revolution).
3. At 40 yards, each click will yield .4 inches of travel
(12 inches per knob revolution).

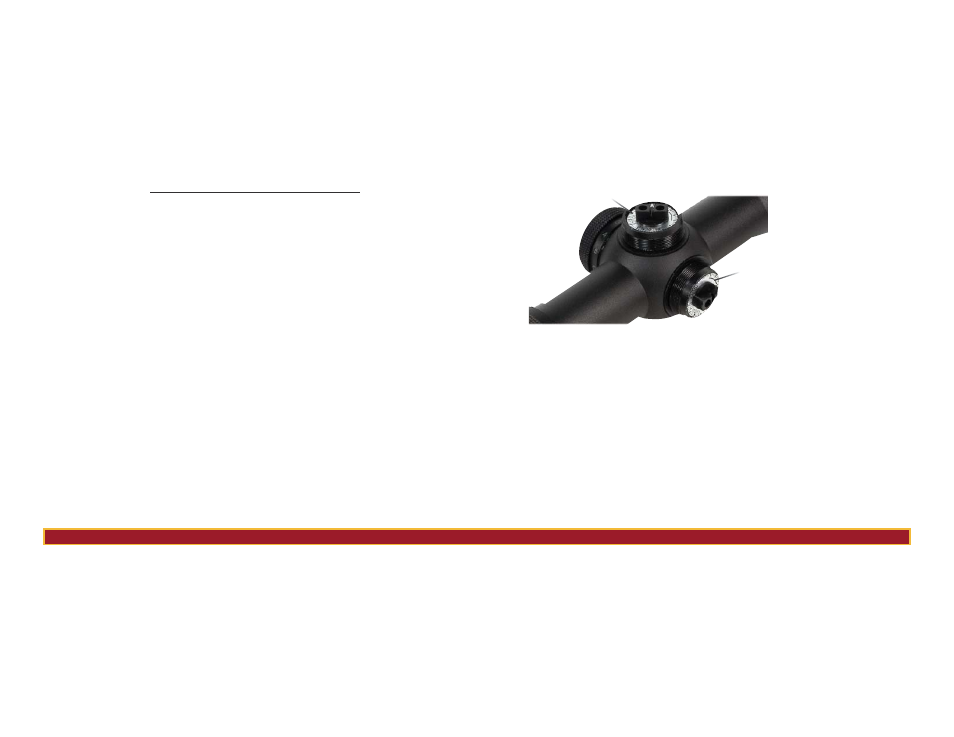

Adjust the
elevation
Adjust the
windage
