To get the best results from your StrikeFire II red dot, proper mounting is
essential and, although not difficult, the correct steps must be followed.
Your firearm will need to be equipped with a Picatinny or Weaver style
rail/base. If needed, these may be purchased at most firearms dealers.
If you are unsure of your abilities, it would be best to use the services of a
qualified gunsmith.
The mounted height of the StrikeFire II will vary according to the model
you have purchased:
• Low ring mount puts the optic bore center 21 mm above the base
for a height that works for most other firearm applications, including
carry-handle mount AR-15 rifles.

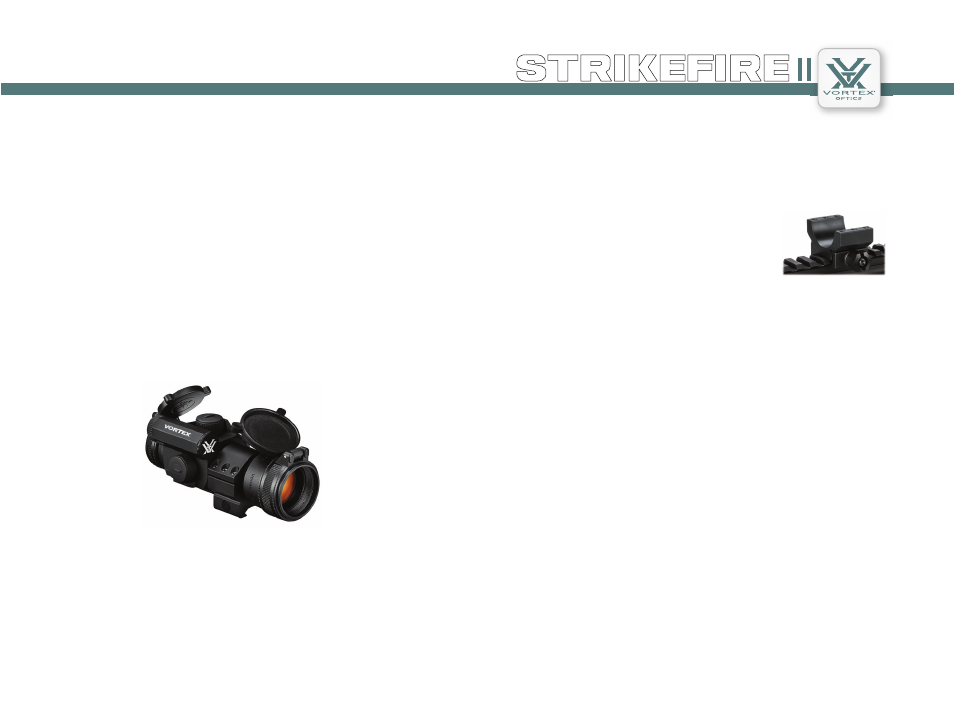

Low Ring Mount Option
(21 mm Height
) Note: It is a good practice to check mounting and base screws regularly to
be sure they haven’t loosened under field conditions.
Attaching the Ring Mount
StrikeFire II red dots come with either a cantilever ring mount or a low
ring mount. To attach the included ring mount:
1. Separate the upper ring mount cap from the lower half of the ring
mount. Then, attach the lower half to the
rail/base and make sure this is solidly seated
in the base groove. To prevent recoil injury,
position the ring so that you have at least
four inches of eye relief.
2. Be sure the base clamp is hooked around
the outside of the rail/base. Press downward and forward toward the
muzzle. Then, firmly tighten the base clamp hex nut.
3. Place the StrikeFire II on the lower half of the ring mount with
the adjustment control buttons facing the shooter. Position the upper
ring mount cap on top of red dot, align screw holes and insert the
ring cap screws. Tighten ring cap screws evenly until all are snug—
use caution so as not to over-tighten. Once the screws are tightened,
the StrikeFire II should not move on the rail/base.
Recommended Torque
Base Clamp Hex Nut: 35–45 in/lbs
Ring Cap Screw: 15–20 in/lbs
Lower Half of the
Low Ring Mount
