Windage and Elevation Adjustments
The Vortex StrikeFire II red dot incorporates elevation and windage
dials with audible clicks. Each small click will move the point-of-impact
1/2 Minute of Angle (MOA). 1/2 MOA will correspond to 1/2 inch at
100 yards, 1/4 inch at 50 yards, 1/8 inch at 25 yards, etc.
Example
At a 50 yard sight-in distance, it will take four clicks of the dial to move
the bullet’s point-of-impact one inch.

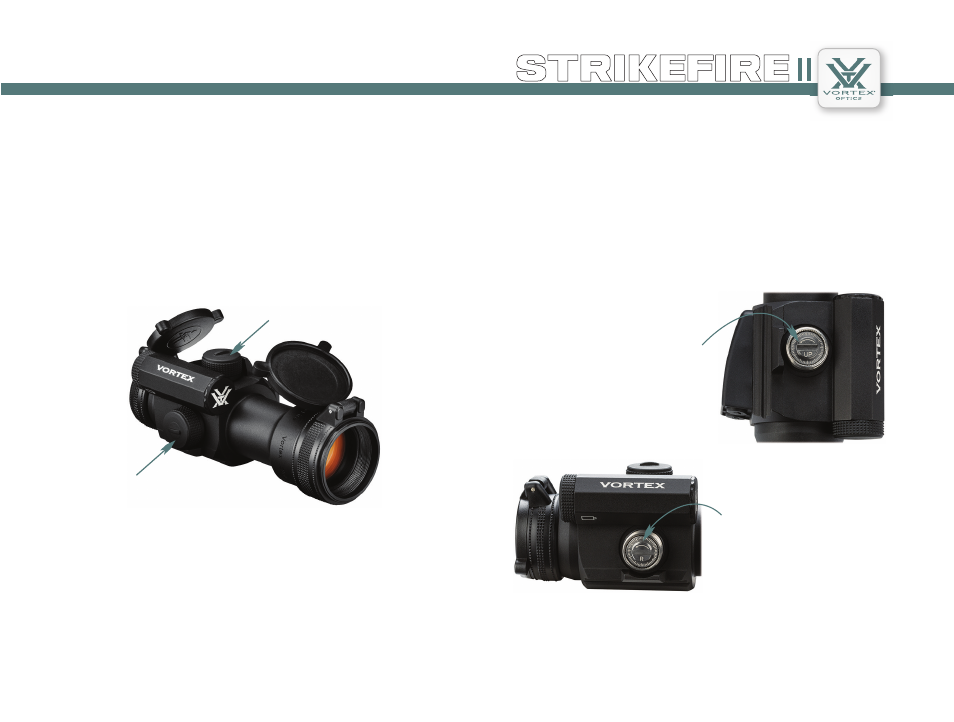

Windage
Adjustment
Elevation
Adjustment
Windage Adjustment
Remove the turret cap and turn the
inner screw counter-clockwise to
adjust the bullet’s point-of-impact
to the right; turn the inner screw
clockwise to adjust the bullet’s
point-of-impact to the left.
Elevation Adjustment
Remove the turret cap and turn
the inner screw counter-clockwise
to adjust bullet’s point-of-impact
up; turn the inner screw clockwise
to adjust bullet’s point-of-impact
down.
Adjust the elevation and windage settings:
• Remove the dial covers.
• Use the raised bar on the dial cover, a coin or screw driver to make
the adjustments.
• Turn the adjustment dial in the appropriate direction as indicated
by the arrow on the dial. Move the dial in the direction you wish the
bullet’s point-of-impact to change.
