MODEL QTR140L
SERVICE PARTS
99043902c

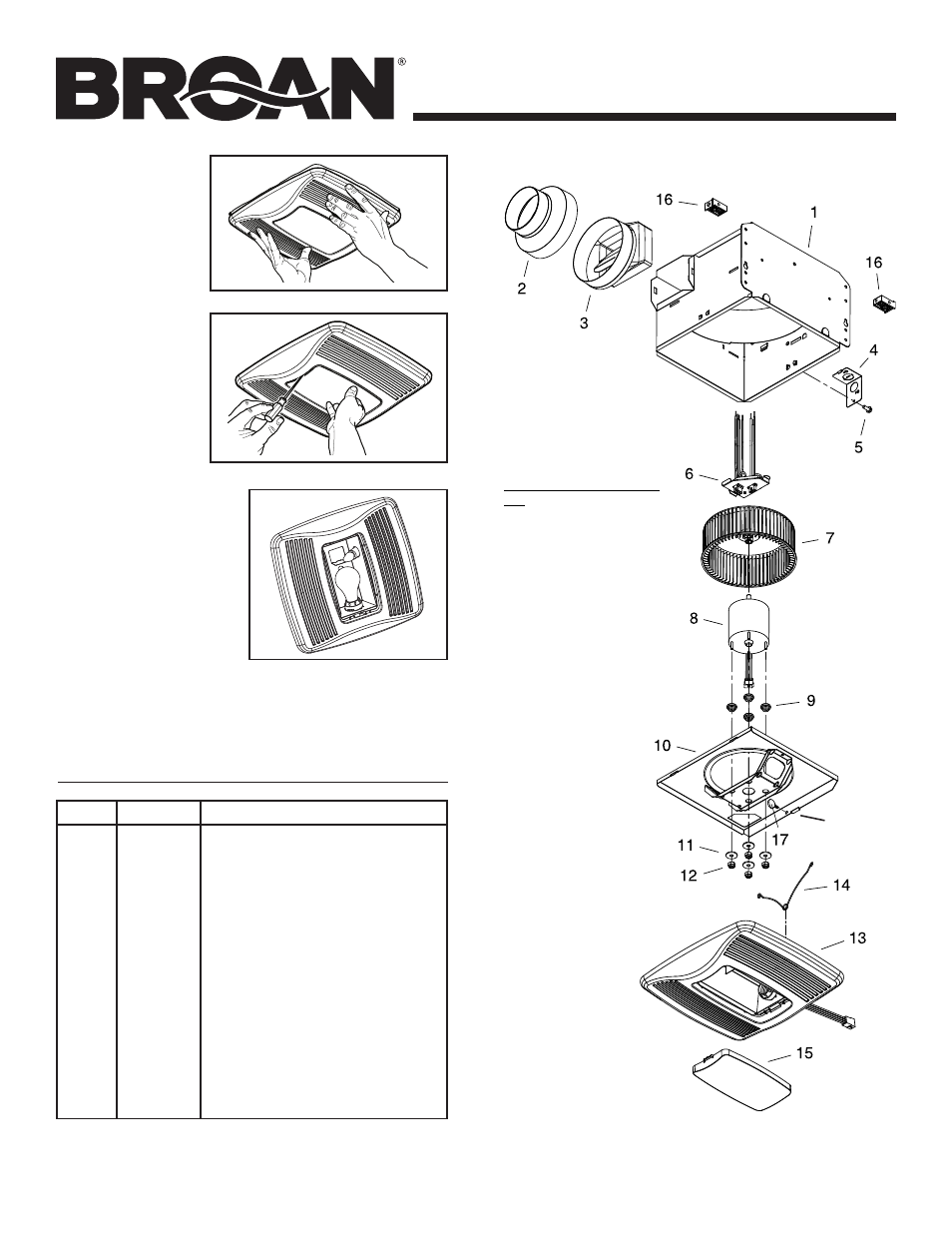

Key No. Part No. Description
1 97016466 Housing
2 475 Duct Reducer - 6” to 4”
3 97016450 Duct connector - 6”
4 98010102 Wiring plate
5 99170245 Screw, #8-18 X .375
6 97016933 Wire panel/Harness Assembly
7 99020284 Blower Wheel
8 99080595 motor
9 99100491 Isolator (4 req’d)
10 97016468 motor plate
11 99250959 Washer #8 (4 req’d)
12 99260558 Nut, Hex Lock #8-32 (4 req’d)
* 97017069 Blower Assembly
(includes key nos. 7 thru 12)
13 97017067 Grille Assembly
(includes key nos. 14 & 15)
14 99140199 Grille Spring (2 req’d)
15 99111345 lens
16 99111293 Spacer (2 supplied)
17 99420665 Thumbscrew, #8-18 x .375
SERVICE NOTE
To remove Blower Assem-
bly:
Unplug motor (8).
Remove thumbscrew (17)
from motor plate (10) flange.
Find the single TAB on the
motor plate (located next to
the receptacle).
push up near motor plate
tab while pushing out on
side of housing. or insert a
straight-blade screwdriver
into slot in housing (next to
tab) and
twist screwdriver.
TAB
order service parts by “part no.” - not by “Key no.”
9. Remove
light lens.
carefully insert a
small flat-blade
screwdriver be-
tween grille and
lens. pry lens
out.
8. Push grille
against ceil-
ing.
10. Install light bulbs.
purchase an incandes-
cent bulb - 100W Max.
purchase a 4W incan-
descent night light bulb.
Insert bulbs into their
sockets. Replace lens.
