WARNING
WE STRONGLY RECOMMEND THAT A LICENSED PROFESSIONAL INSTALL THIS SHOWER
CABIN AND INCLUDE THE ASSISTANCE OF A SECOND PERSON TO INSTALL THE DOOR UNIT.
!
INSTALLATION OF THE SHOWER DOORS BY AN INEXPERIENCED PERSON MAY RESULT IN
GLASS BREAKAGE AND, CONSEQUENTLY, CAUSE PERSONAL INJURY OR DEATH.
BEFORE STARTING
Compare items on your invoice with what you have received. Carefully review the Packing List on
page 2. If any items are missing contact Vigo Industries at 1-866-591-7792.
REQUIRED TOOLS
Square and/or Phillips #1 and #2 screwdriver
Flat head screwdriver
Electric drill plus 1/32", 3/32", 1/8" or 1/4" drill bit (depending on wall)
Level
Measuring tape
Pencil (non-permanent)
Clear silicone caulking
Utility knife
WARNING !
Handle fragile items with care to prevent injury or material damage.
Glass on panels and doors is tempered glass and must never be cut to prevent personal injury.
IMPORTANT
Fiberglass or acrylic construction might not be sufficiently strong enough to support the shower
door enclosure. You should use the wood framing from behind the face edge of the stall to
provide a secure mounting to the door. Apply a bead of silicone between the walls and base of
the stall.
For optimum performance, you should install the shower door perfectly level on a level surface.
IMPORTANT:
THE TEXTURED SIDE OF THE MATTE GLASS UNIT SHOULD ALWAYS BE INSTALLED ON THE OUTSIDE OF THE
UNIT. (SEE CONFIGURATION DIAGRAM BELOW)
4
LEFT INSTALLATION
RIGHT INSTALLATION
door

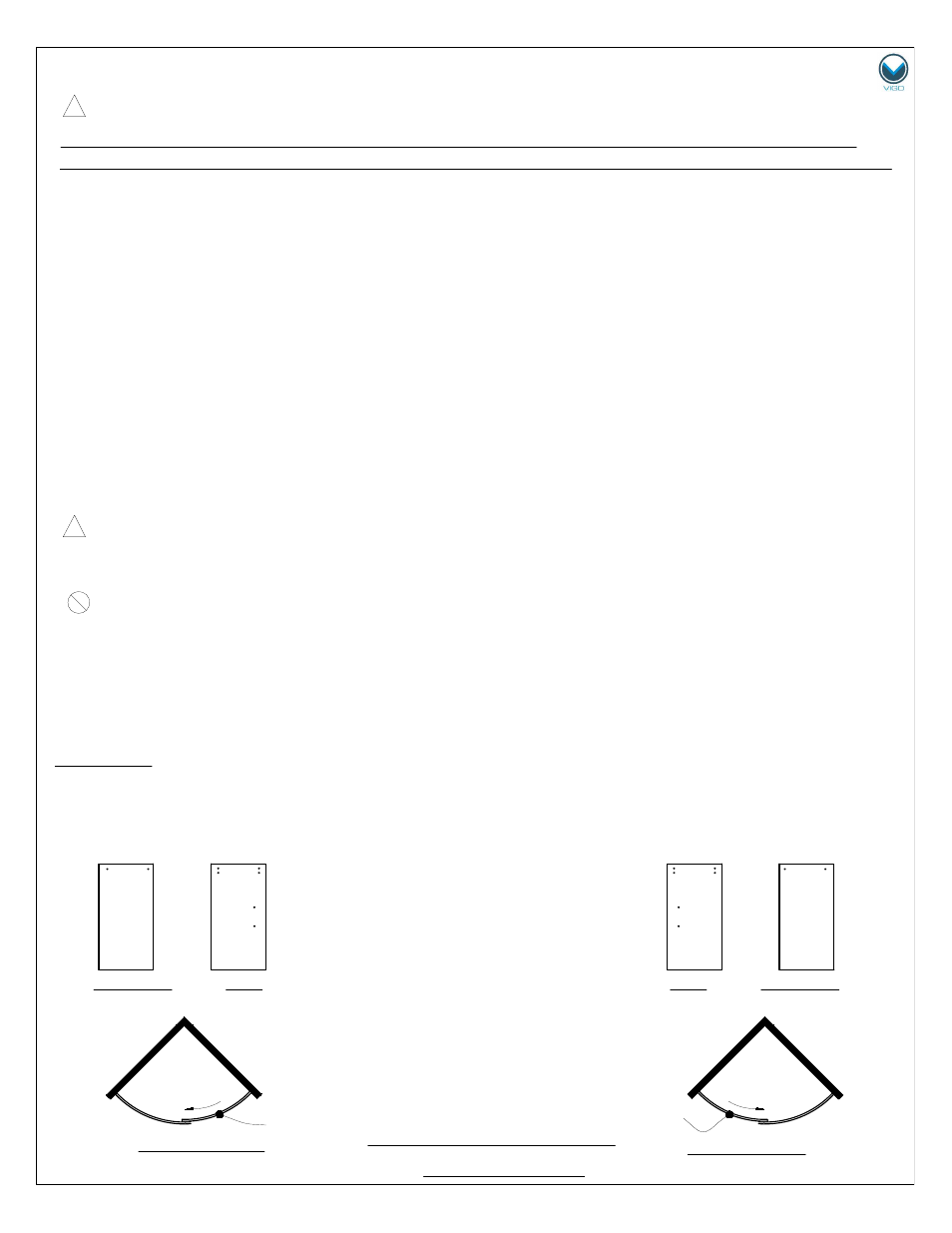

FIG. 1 (GLASS CONFIGURATION DIAGRAM)
DOOR FIXED PANEL
door
DOOR FIXED PANEL
MODEL VG06031
