MODEL VG06031
NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PROFESSIONAL
GLASS THICKNESS 5/16"
PLEASE READ INSTRUCTIONS BEFORE PROCEEDING
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS FOR SHOWER ENCLOSURE

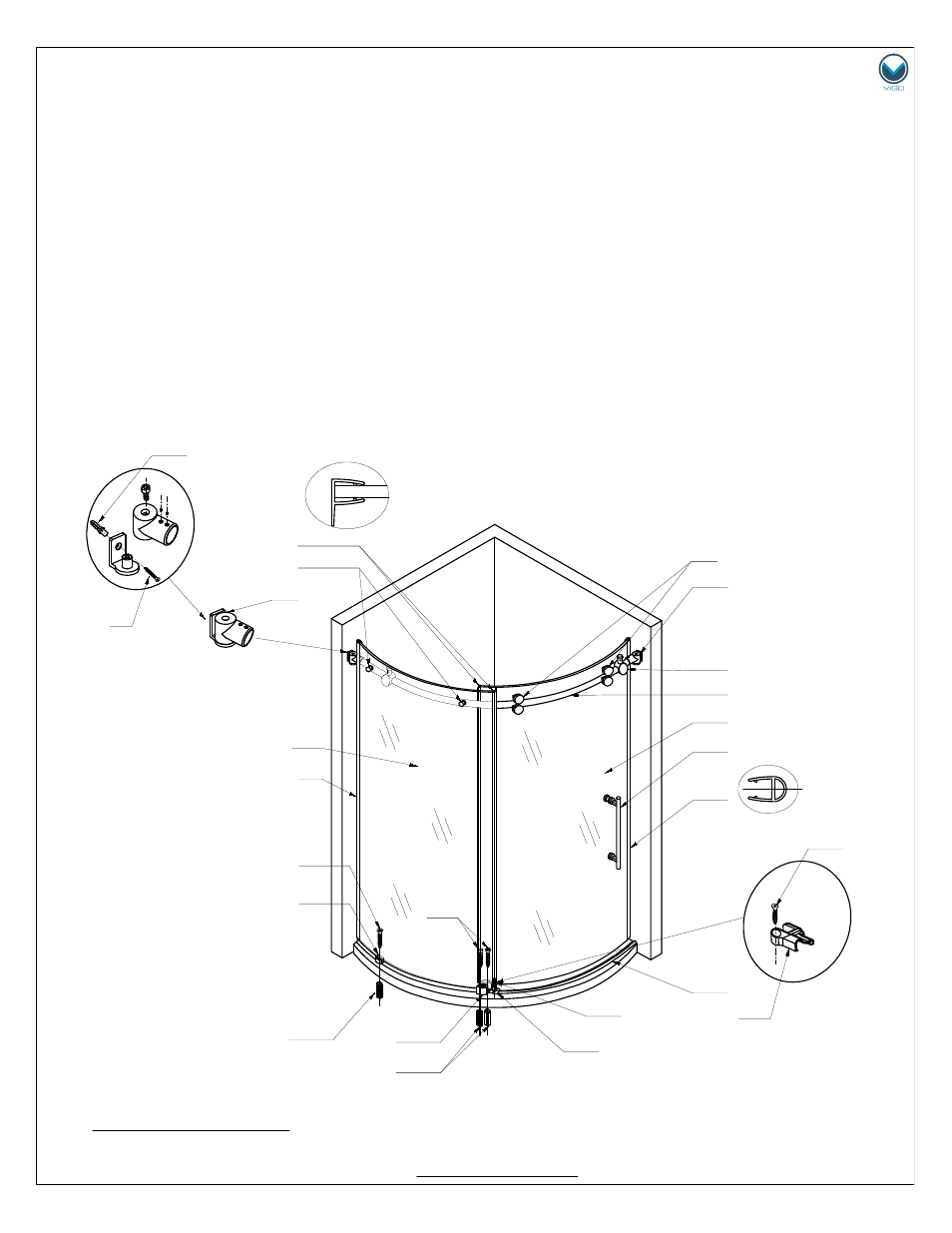

Packing List
1. Wall mount brackets (2pc)
2. Fixed panel holders (2pc)
3. Rollers (4pc)
4. Fixed panel (1pc)
5. Door (1pc)
6. Handle assembly (1pc)
7. Fixed panel bottom clip (1 pc)
8. Bottom door guide (1 pc)
9. Door threshold (1pc)
10. Door stopper (2pc)
11. Structural rail (1pc)
12. Side seal strip (2pc)
13. Door seal strip (2pc + 1 extra)
14. Phillips screw 2" (2pc)
15.
Phillips screw 1 1/8" (3pc)
16. Plastic anchor green (3pc)
17. Plastic anchor white (2pc)
18. Door threshold clip (2pc)
19. Phillips screw 3/4" (2pc)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
1
18
15
16
15
16
14
17
19 18
19
