Specifications
White/UV Transilluminators
White/UV Transilluminator models are designed with white light and one or two UV
wavelengths. Units are equipped with a high efficiency electronic ballast.
Dimensions: 13.25D x 19.13W x 5.64H in. (337 x 486 x 143mm)
Model
Part Number
Volt/Hz
Wavelength
Filter Size
No. of Tubes
/Watts
TLW-20
95-0415-01
100-115/60
365nm
20 x 20cm
4 x 8W
95-0415-02
230/50
White
20 x 20cm
2 x 8W
TMW-20 95-0415-04
100-115/60
302nm
15 x 15cm
4 x 8W
95-0415-05
230/50
White
20 x 20cm
2 x 8W
LMW-20
95-0418-01
100-115/60
302/365nm 20 x 20cm
4 x 8W
95-0418-02
230/50
White
20 x 20cm
2 x 8W
Transilluminator Operation
Safety Precautions
When the UV Blocking Cover is not being
used, UV light may escape through the
holes dedicated to accepting the bracket
pins of the UV Blocking Cover.

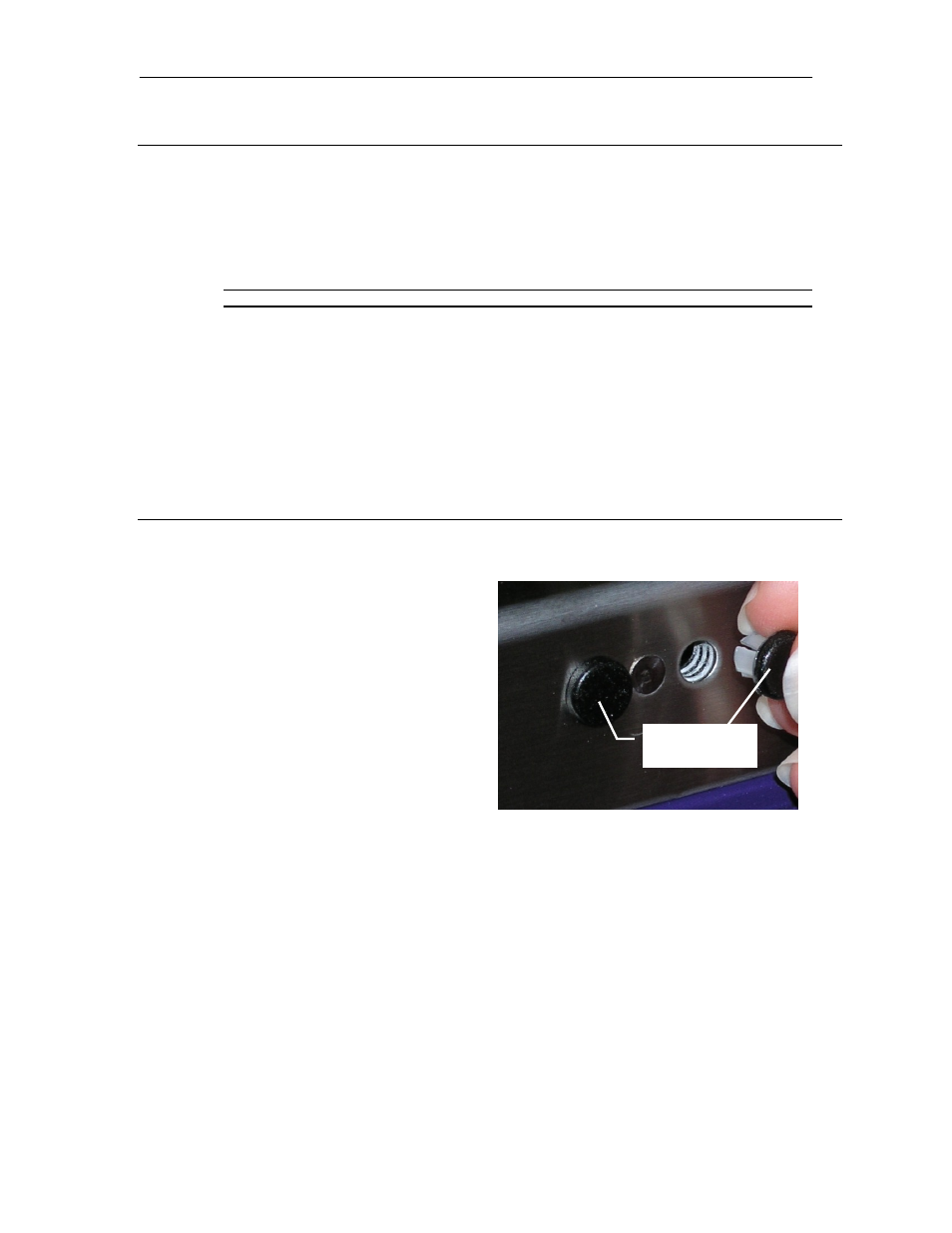

Remove the black safety plugs from
their package
Insert the safety plugs through the
holes as shown.
Setting Up the Transilluminator
Place the transilluminator on a level work surface. Be sure that an air space exists around the
bottom of the work surface. This space allows for the proper air circulation through the unit.
Plug the female end of the power cord into the transilluminator. For 230 volt models, or those
requiring special power cord connectors, ensure that the proper configuration of male
connector or plug has been properly connected to the power cord.
Plug the male end of the power cord into a properly grounded electrical outlet. The proper
voltage of the transilluminator is found on the product information label. If using the
transilluminator with an imaging system, a jumper cable is required for connecting to the
darkroom. Refer to the imaging system documentation for additional instructions.
The transilluminator is equipped with a UV Blocking Cover. Remove the brown protective
paper from the cover. Insert the bracket pins on the cover into the holes on the front of the
transilluminator. The cover is adjustable to varying angles for access to the filter surface.
Safety Plug
