pg. 2

656750

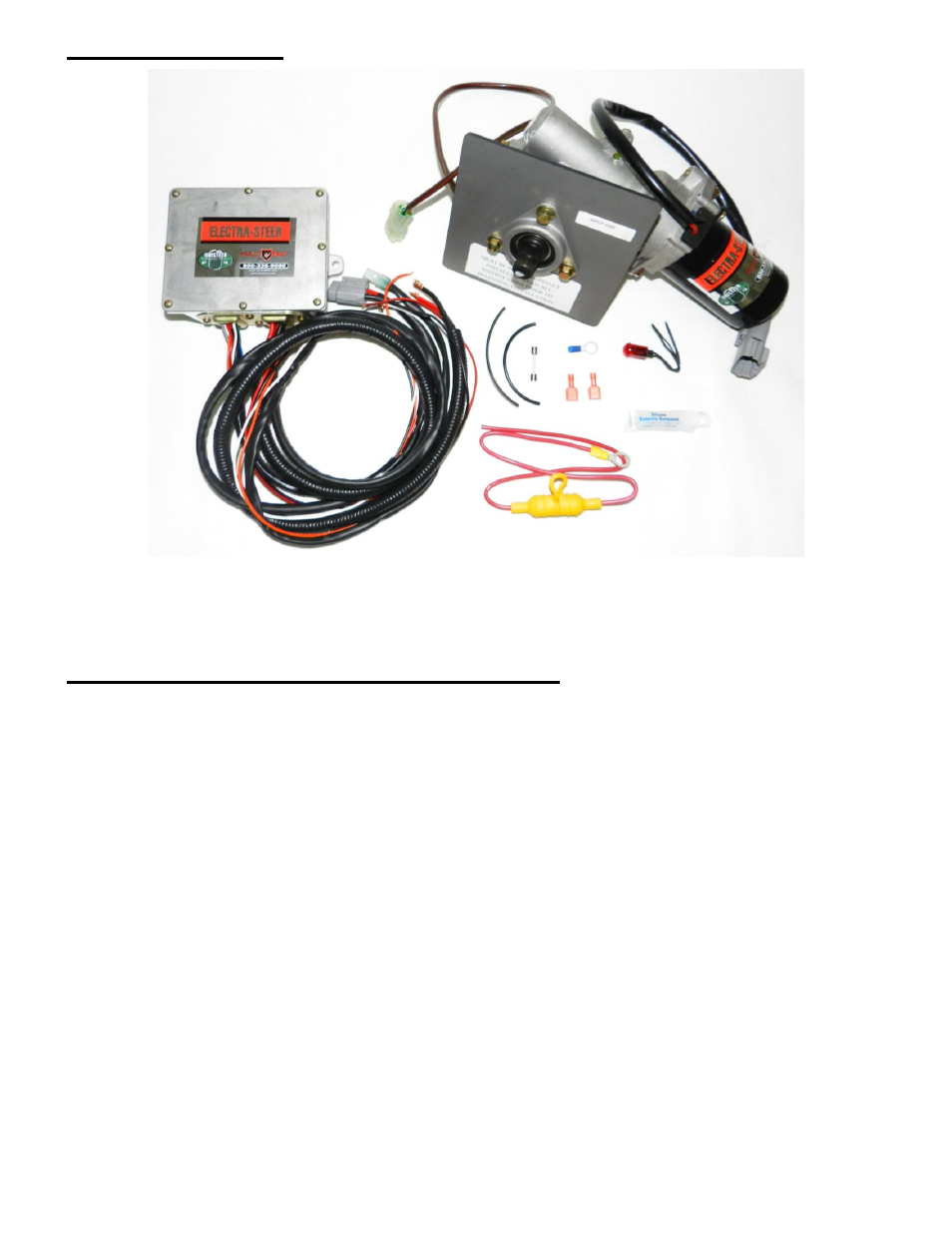

KIT CONTENTS:




MOUNTING YOUR ELECTRA-STEER:

1. The square plate attached to the motor should be used as a platform in the mounting process. You will have to

determine how the unit is mounted to your frame.

2. The mounting holes on the square plate can be used as a template if you intend to design your own mounting

plate or bracket. Remember all rotational torque of the motor will be transmitted through your mount.

3. The shaft on the mount side of the motor is the INPUT SHAFT (This goes to your steering wheel).

4. The other shaft is your OUTPUT SHAFT (This goes to your steering gear or steering box).

5. The Splines on the OUTPUT & INPUT SHAFTS are UNIQUE to Unisteer Performance Products and we offer a

wide range of U-Joint & Coupling combinations to match the shafts that you are using. Call for applications &
availability. DRILLING, WELDING, OR ALTERING THE INPUT AND/OR OUTPUT SHAFTS WILL VOID YOUR
WARRANTY
.
