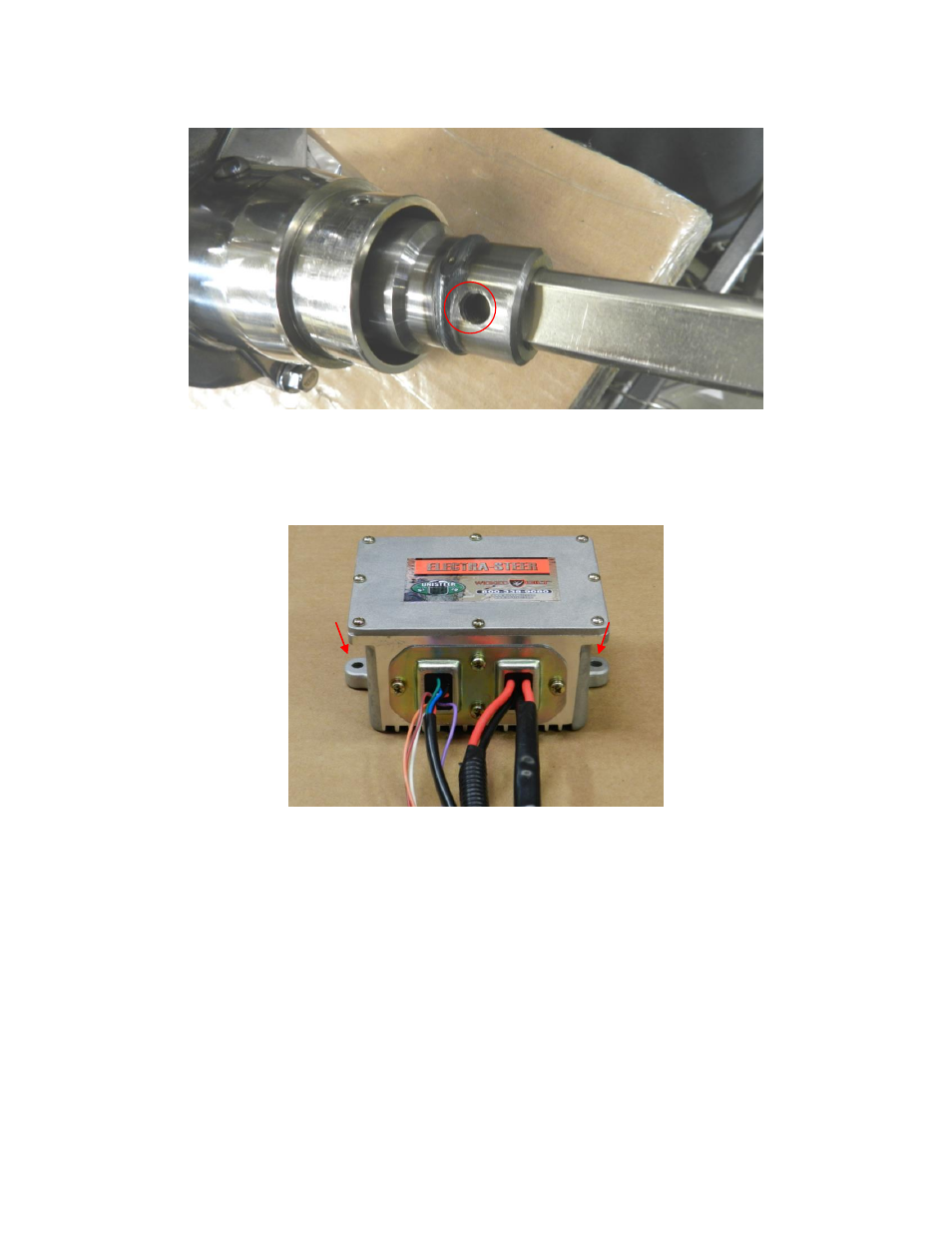

8. Next install the lower column shaft first using the set screw, then install the column tube over shaft
and screw in the three screws to hold it in place.
9. When finished make sure there is a bushing at the bottom end of the column to hold the shaft in
place. Also make sure you have a good column and floor mount. All steering torque will be put onto
these mounting brackets so they must be strong enough to keep the column from turning.
10. The computer box can be mounted anywhere that the wire harness reaches. Use the two eyelets on
the module to mount it.
NOTICE: YOU MUST SECURE YOUR STEERING COLUMN AT FIREWALL AND DASHBOARD
DROP. INJURY MAY RESULT FROM IMPROPER INSTALLATION
