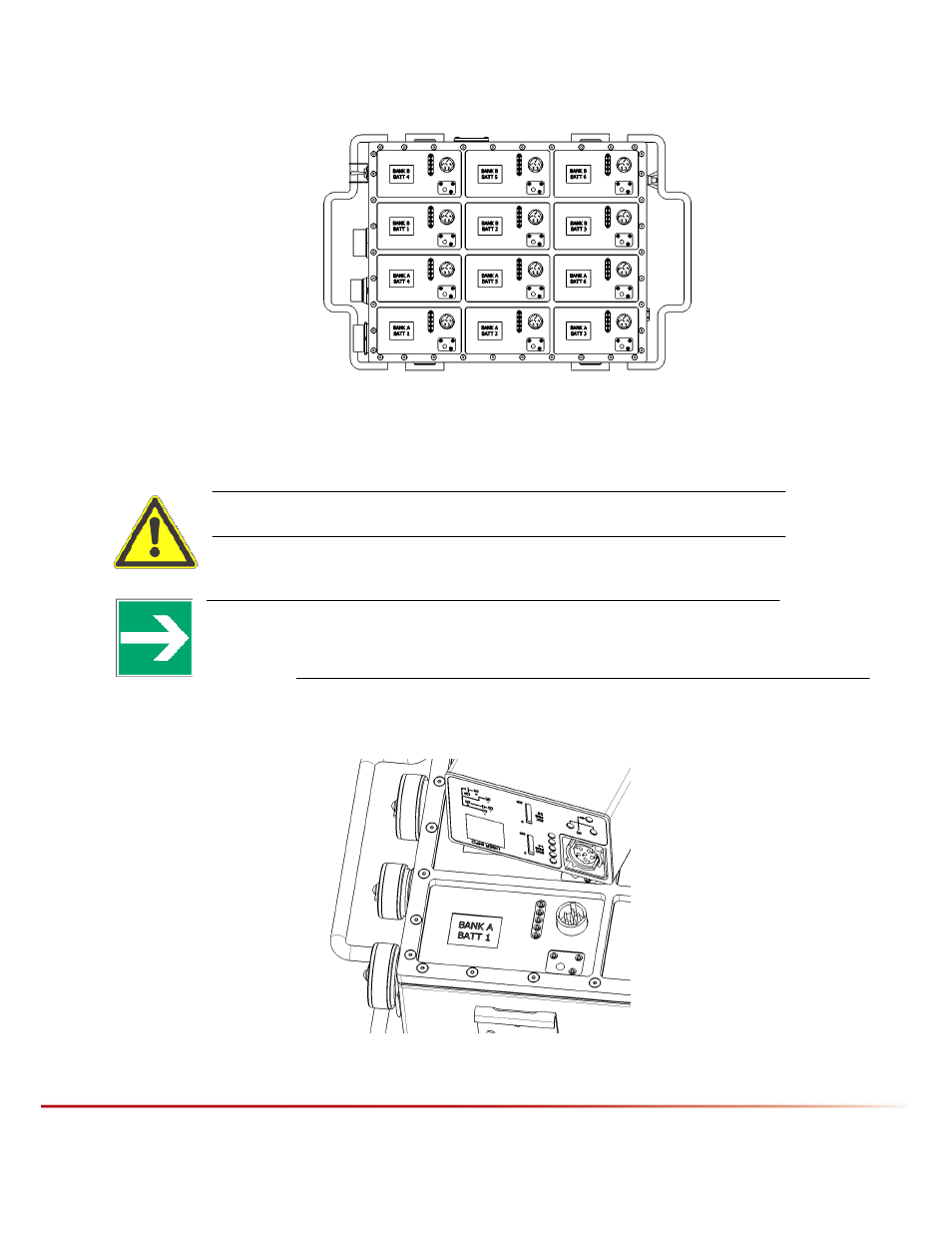

Figure 3-2 Battery Box shown with Connectors Facing Up
CAUTION: The Battery Box loaded with batteries weighs 54 lbs. Use caution
when lifting and carrying.
NOTE: Be sure all connectors and pogo pins are clean and free of debris prior to
inserting batteries. Only Ultralife Smart 2590 lithium ion rechargeable batteries can
be used in this system. Ensure that the connector and the 8 flat contacts on the
UBBL10 battery are clean and free of debris.
2. Ensure battery is completely seated with a strong push. See figure 3-3 for guidance.
Figure 3-3 Battery Orientation
