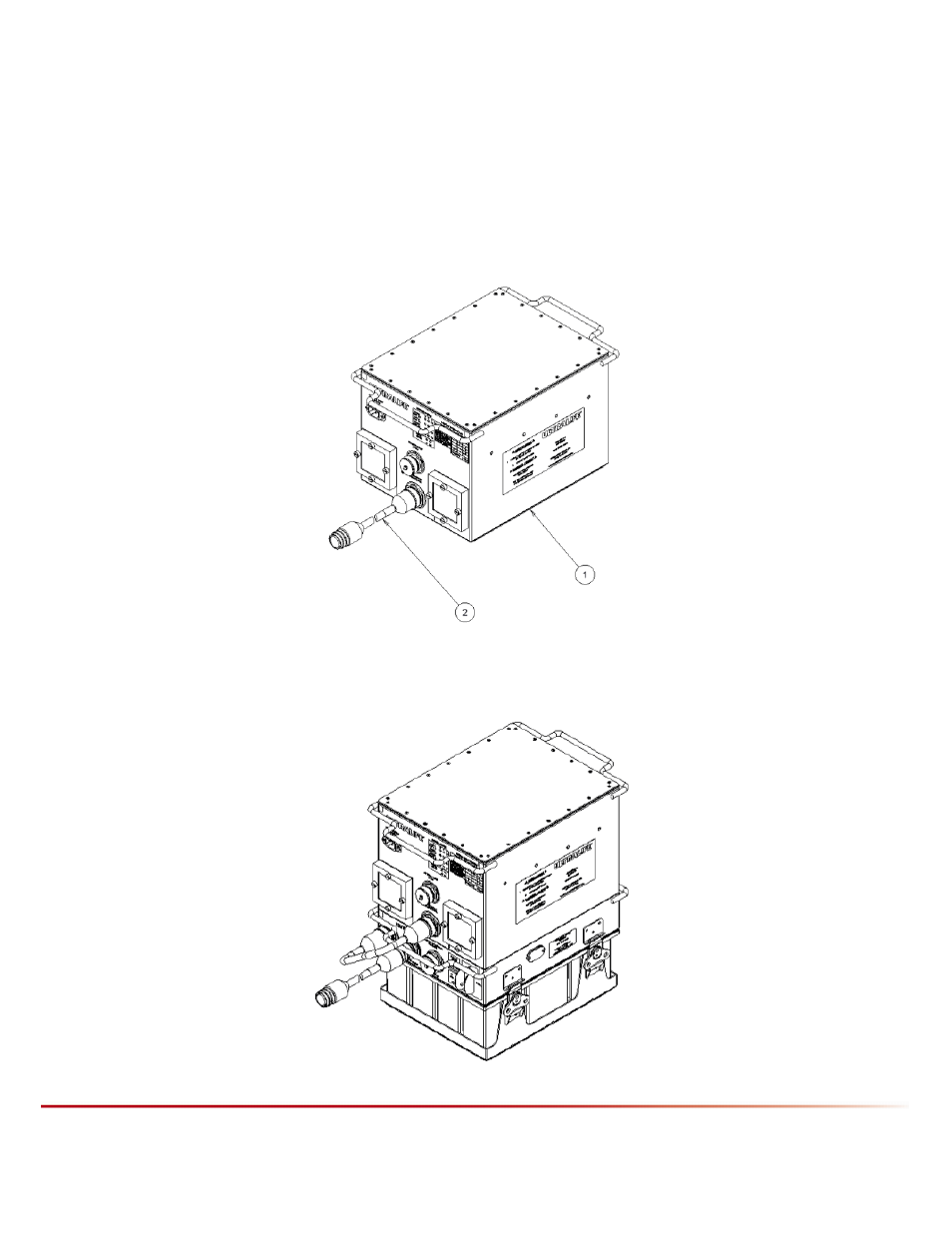

9. Attach the charger output cable to the Charger Box output connector and the other
end to the Battery Box charge input connector as shown in Figure 3-9. Note the
callouts as follows:
Item 1: CH0027 Charger Box.
Item 2: UCA0042 Battery / Shore Power Cable.
Figure 3-9 Charger Box with Charge Cable
10. See figure 3-10 for a finished view of what these connections should look like.
Figure 3-10 System Stack-Up
