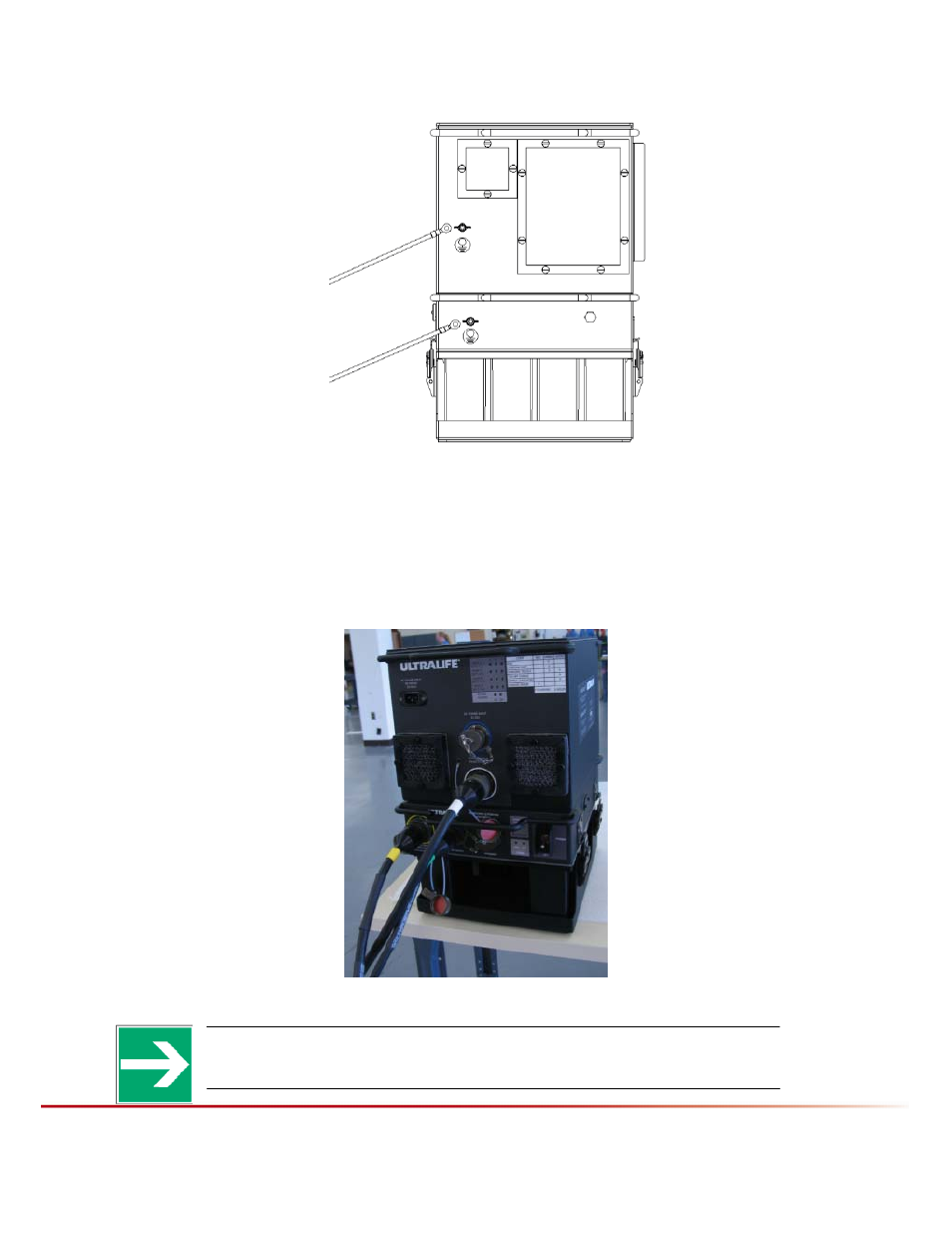

Figure 3-7 System Ground Lugs
8. Connect the output cable to the CH0028 Battery Box and connect to the target
device. It is recommended that the Battery Box be powered on (and Charger Box)
prior to powering the end device. If the CH0027 Charger Box and shore power unit is
being used, stack the Charger Box on top of the Battery Box or place within cable
reach. The Charger Box is designed to stack on top of the Battery Box. See Figure
3-8.
Figure 3-8 System Stack with Charger Cable
UKT0011 CH0028/CH0027 Battery Box / Charger System Operation Manual
Newark, New York | 315-332-7100 | Fax: 315-331-7800
©2010 Ultralife Corporation • www.ultralifecorp.com • All specific subject to change without notice
The information contained herein is for reference only and does not constitute a warrant of performance • 30 SEP 10 UBI-5184 Rev: A
Page 11 of 17
NOTE: All cables (optional) have a color code that matches a color swatch near the
correct mating connector to ease cable connection. Cables are keyed to prevent
any misconnection.
