3 CH0027 / CH0028 SYSTEM SETUP

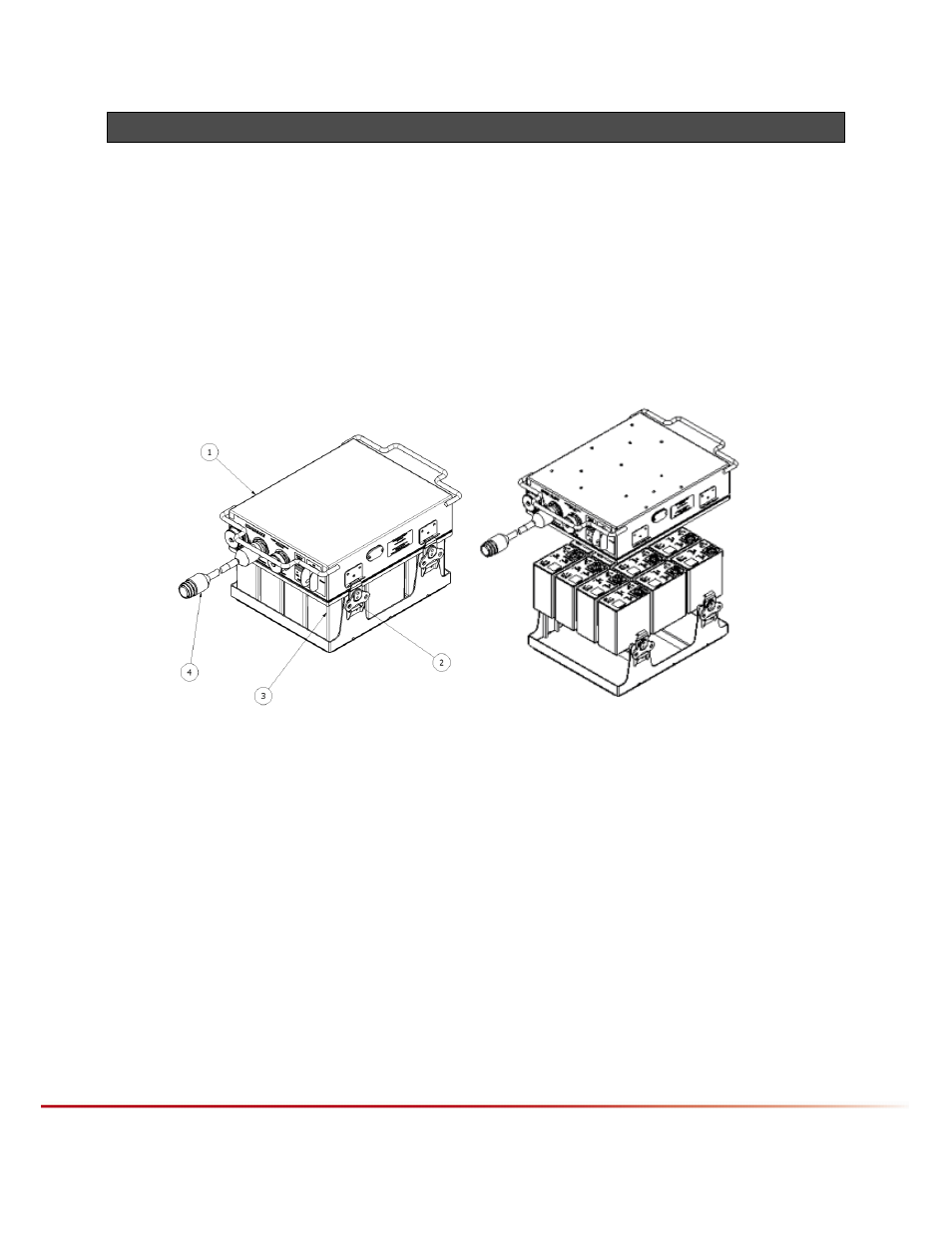

CH0027 and CH0028 components are shown in Figure 3-1 and referenced in the list
below:
Item 1: Battery Box (CH0028)
Item 2: Battery Latching Tray
Item 3: UBBL10 Batteries (12 pieces Shown Installed)
Item 4: UCA0043 Output Cable (Optional)
Figure 3-1 Battery Box (CH0028) Components
Follow the step-wise procedure listed below to complete CH0027/CH0028 system
setup:
1. Place the Battery Box on a flat surface capable of supporting at least 100 lbs with
the battery connectors facing up. There will be identifying engravings identifying
battery position by bank (A or B) and battery number within each bank. See Figure
3-2 for guidance.
