4.2 Operation (Continued)
FLOW FLOW
COALESCING
MEDIUM
DIRT PARTICLES
COALESCING MEDIUM SEPARATES
THE DIRT PARTICLES FROM THE
SYSTEM WATER
DIRT PARTICLES FALL OUT OF THE
FLOW PATH AND COLLECT IN THE
BOTTOM OF THE VESSEL
BLOW DOWN VALVE
DIRT PARTICLES FLUSHED OUT
SKIM VALVE

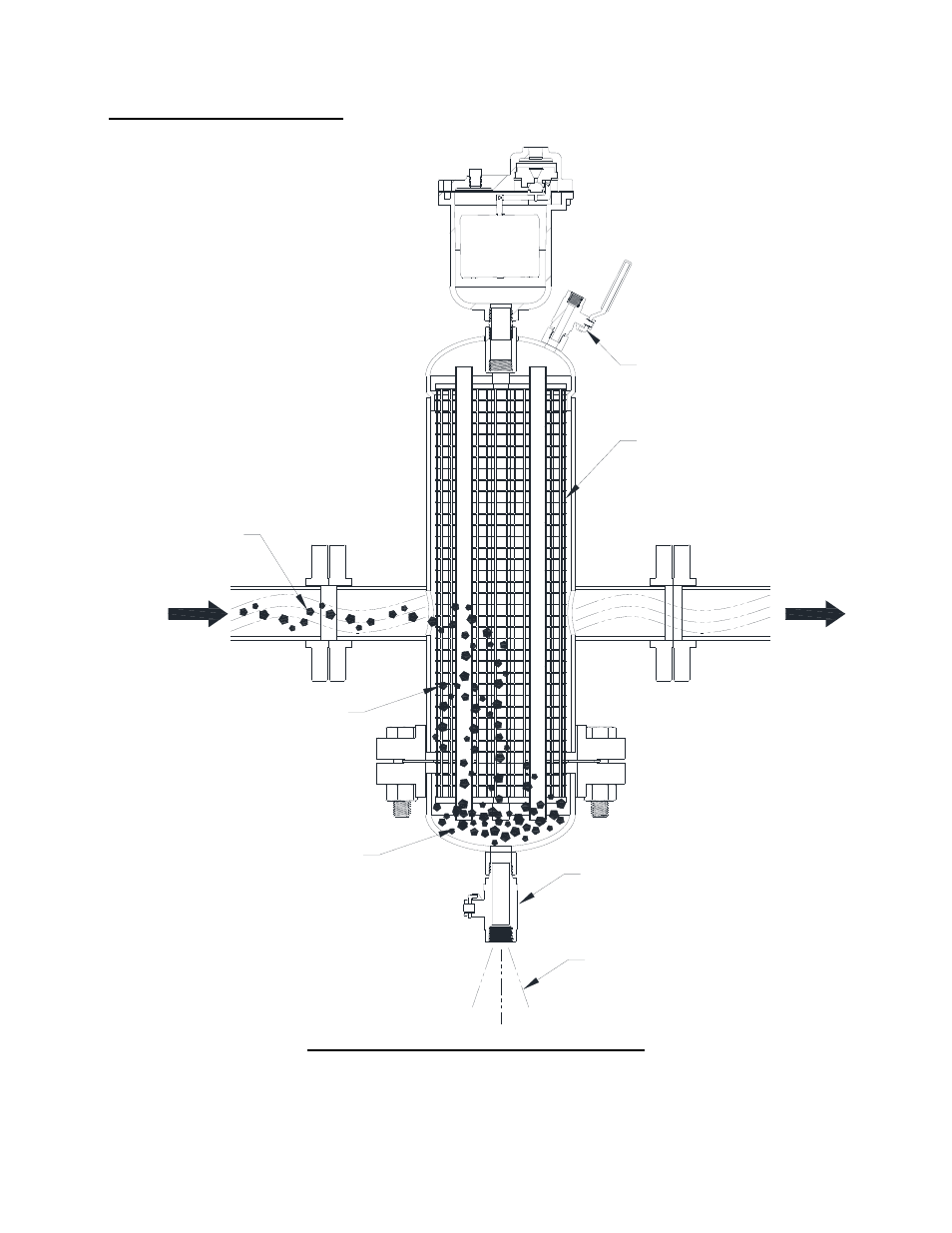

Figure 4-3 Operation (Dirt Elimination)
