4.1 Installation Tips (Continued)
Using the figure below as reference only, note the steps outlined to install piping for the
Aar-O-Vent (Figure 4-1).
SUPPLY
RETURN
AAR‐O‐VENT
AIR ELIMINATOR
SUCTION DIFFUSER
PUMP
TRI‐FLOW VALVE
BOILER
TO DRAIN
SUPPLY
SOURCE
PUMP
SUCTION
ISOLATION VALVE
(OPTIONAL)
FLEX CONNECTOR(S)
(AS NEEDED)
TO DRAIN
BLOW DOWN
VALVE
SKIM VALVE
LIFT LUGS (2)
(5" & LARGER)

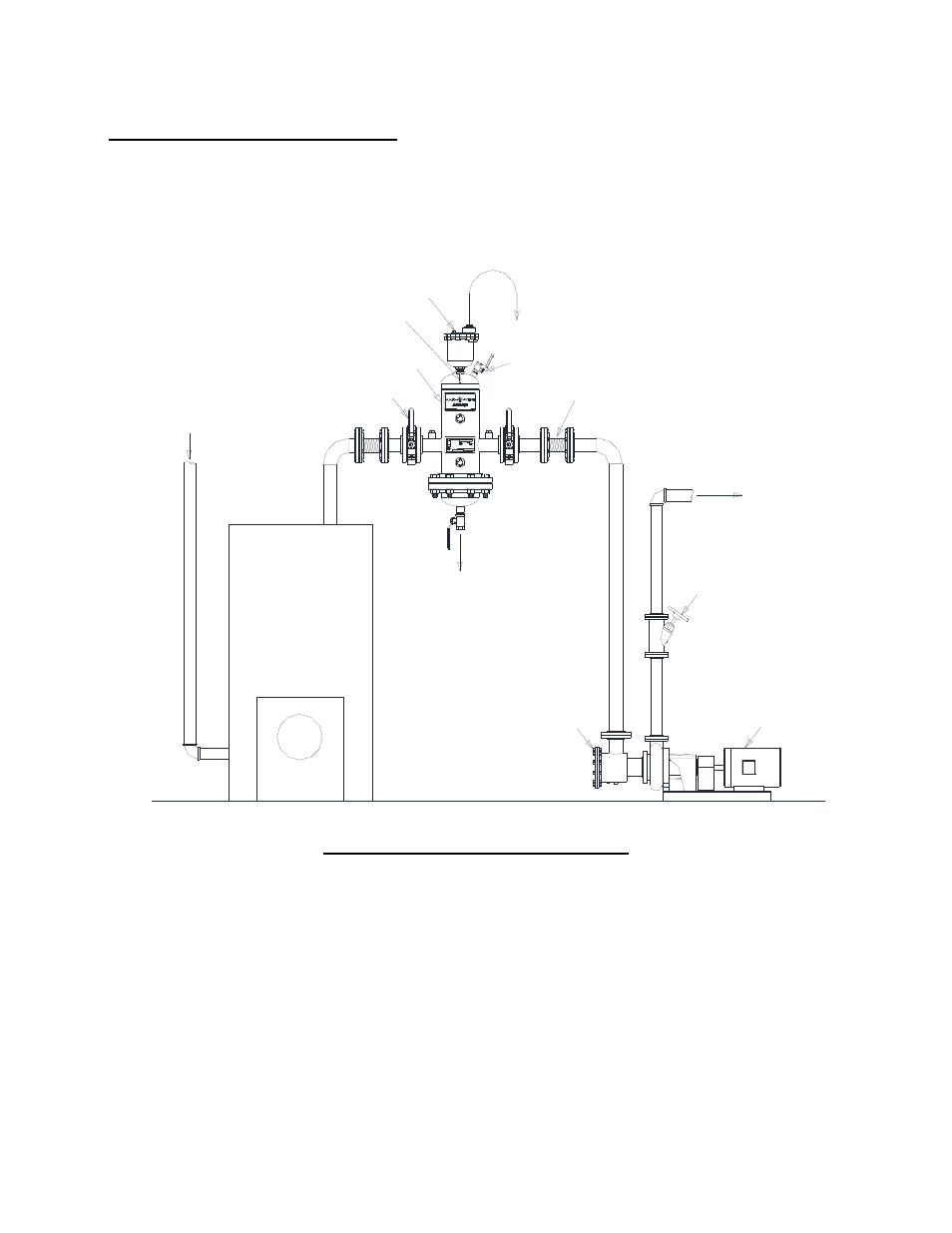

Figure 4-1 Typical Piping Diagram
1. Connect the supply source to one connection of the Aar-O-Vent.
2. Connect suction piping of the pump to the other connection of the Aar-O-Vent.
3. The air vent, the blow down valve and the skim valve should be run to an
adequate drain.
4. Once all connections are made, allow the system to completely fill with water.
Opening the skim valve will speed up this process.
5. After the unit is completely filled, the Aar-O-Vent is ready for operation.
