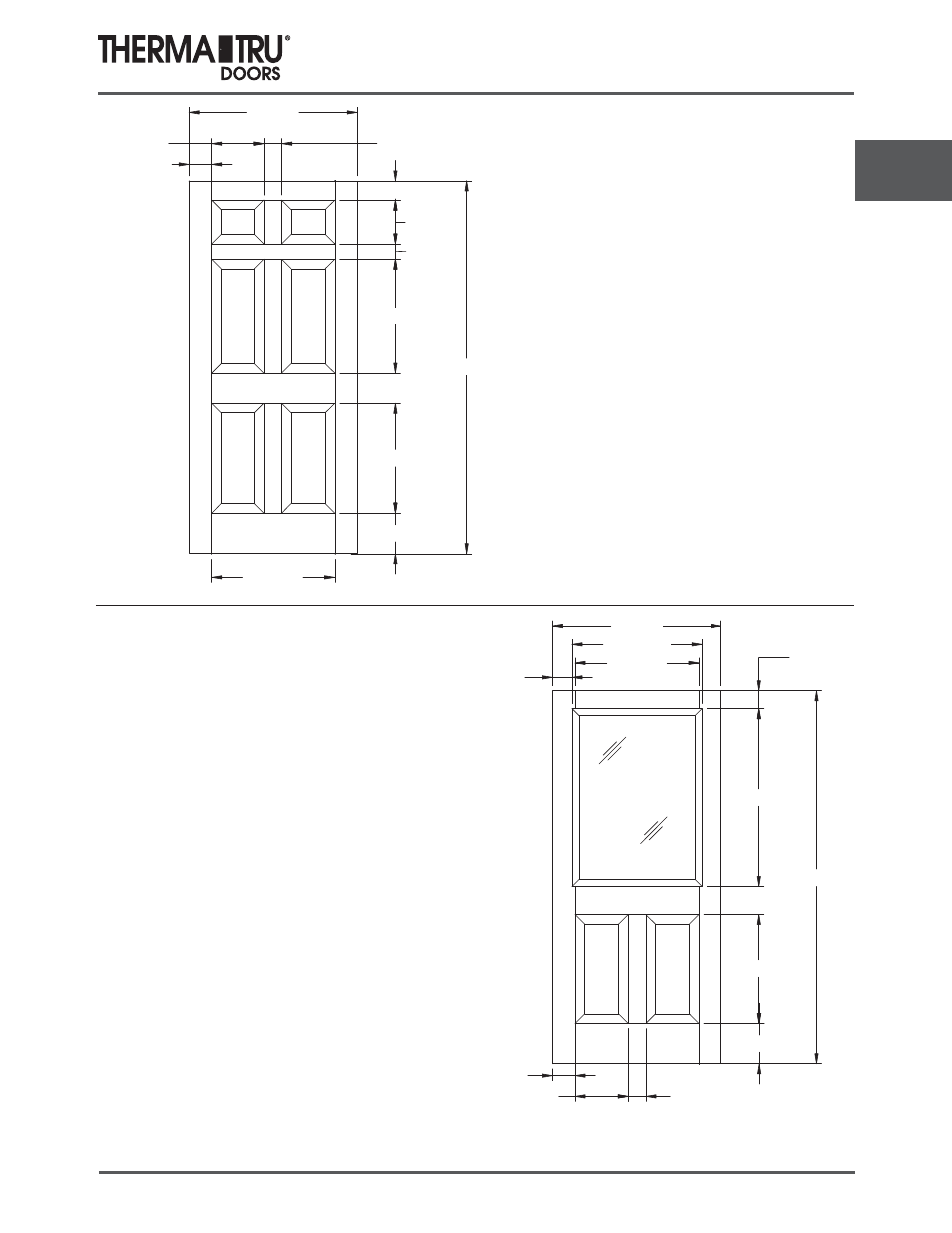

Classic-Craft
Door Panel
Dimensions

Comp 3

2014 (U1 REVISED)

3.5

6/8 Classic-Craft Canvas Doors

11-1/4"

3-23/32"

26-7/32"

27-17/32"

3-23/32"

37-19/32"

23-1/4"

Half Lite 2 Panel
(2535)
(Slab-CCV060U1)

NOTE: 3/0 only.

4-1/8"

35-3/4"

79-3/64"

8-17/32"

4-25/32"

24-17/32" x 34-19/32"
(849 sq.in.)

Daylight Opening:

26-7/32"

11-1/4"

3-23/32"

23-1/4"

24-9/32"

3-7/32"

9-9/32"

6 Panel
(Slab-CCV060U1)
(Impact-CCV060HU1)

NOTE: 3/0 only.

79-3/64"

8-17/32"

4-5/32"

35-3/4"

4-25/32"
