Therma-Tru COMP 3 Classic Craft Door Panel Dimensions - U1 Revised - Manual (Page 48)

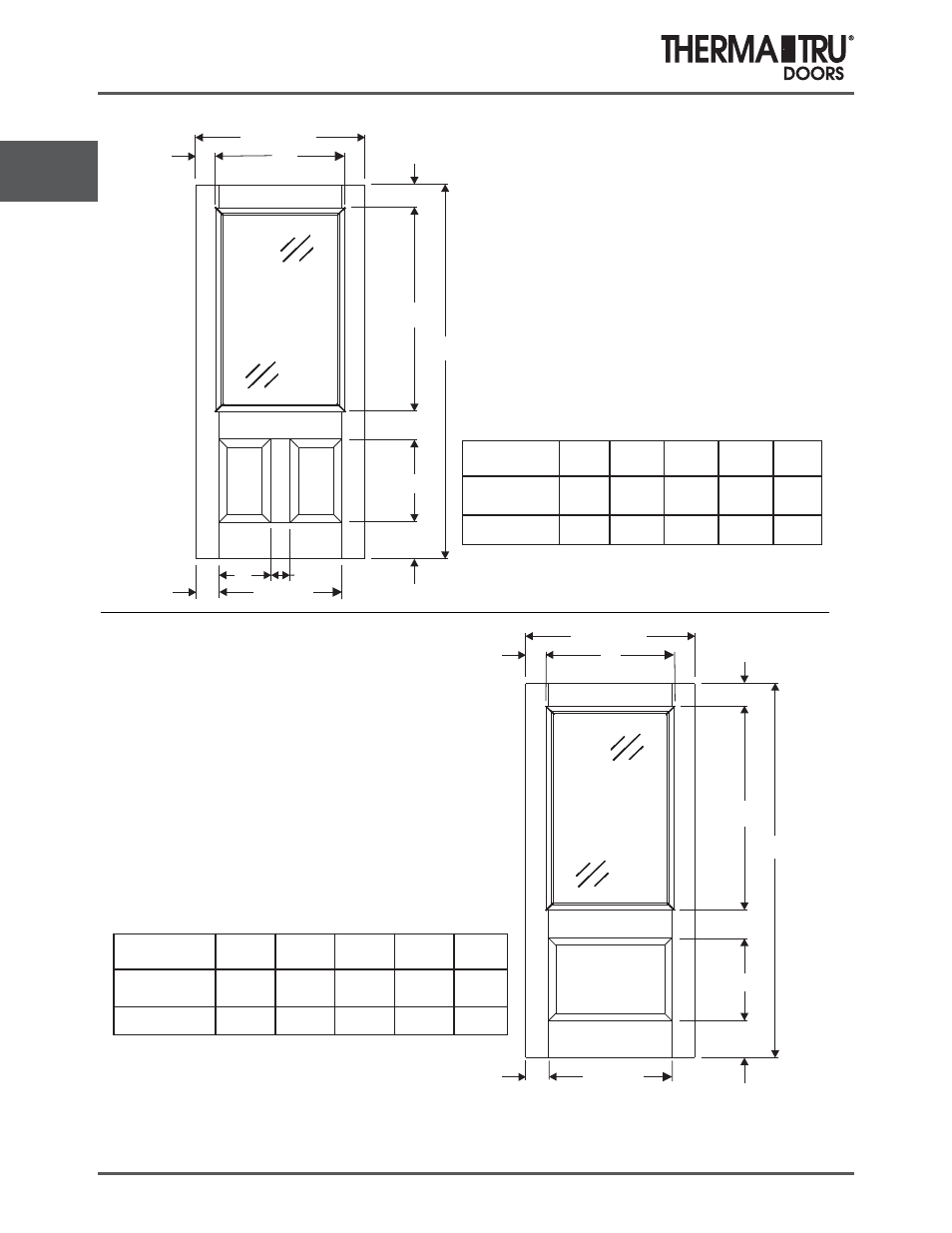

Classic-Craft
Door Panel
Dimensions
3.48 2014 (U1 REVISED) Comp 3
6/8 Classic-Craft Rustic Doors
NOTE: 3/0 only.
NOTE: 3/0 only.
C
35-3/4”
A
D
79-3/64”
E
B
17-1/2”
7-21/32”
C
35-3/4”
A
D
79-3/64”
E
B
17-1/2”
7-21/32”
A B C D E
27-3/32”
27-1/16”
A B C D E
27-3/32” 4-21/64” 4-37/64” 44-3/32” 5-7/32”
27-1/16” 4-11/32” 4-41/64” 44-1/16” 5-3/16”
26-3/16” 4-25/32”
TYP.
26-3/16” 4-25/32”
TYP.
11” 4-3/16”
LITE
DESCRIPTION
NON
WROUGHT IRON
WROUGHT IRON
2/3 Lite 1 Panel
(2542, 2542-1W)
(Slab-CCR200NRU1)
2/3 Lite 2 Panel
(2542, 2542-1W)
(Slab-CCR040NRU1)
LITE
DESCRIPTION
WROUGHT IRON
NON
WROUGHT IRON
4-21/64”
4-11/32”
4-37/64”
4-41/64”
44-3/32”
44-1/16”
5-7/32”
5-3/16”
Daylight Opening:
(Wrought Iron)
24-1/16" x 41-1/16"
(988 sq.in.)
Daylight Opening:
(Non Wrought Iron)
24-3/32" x 41-3/32"
(991 sq.in.)
Daylight Opening:
(Wrought Iron)
24-1/16" x 41-1/16"
(988 sq.in.)
Daylight Opening:
(Non Wrought Iron)
24-3/32" x 41-3/32"
(991 sq.in.)
