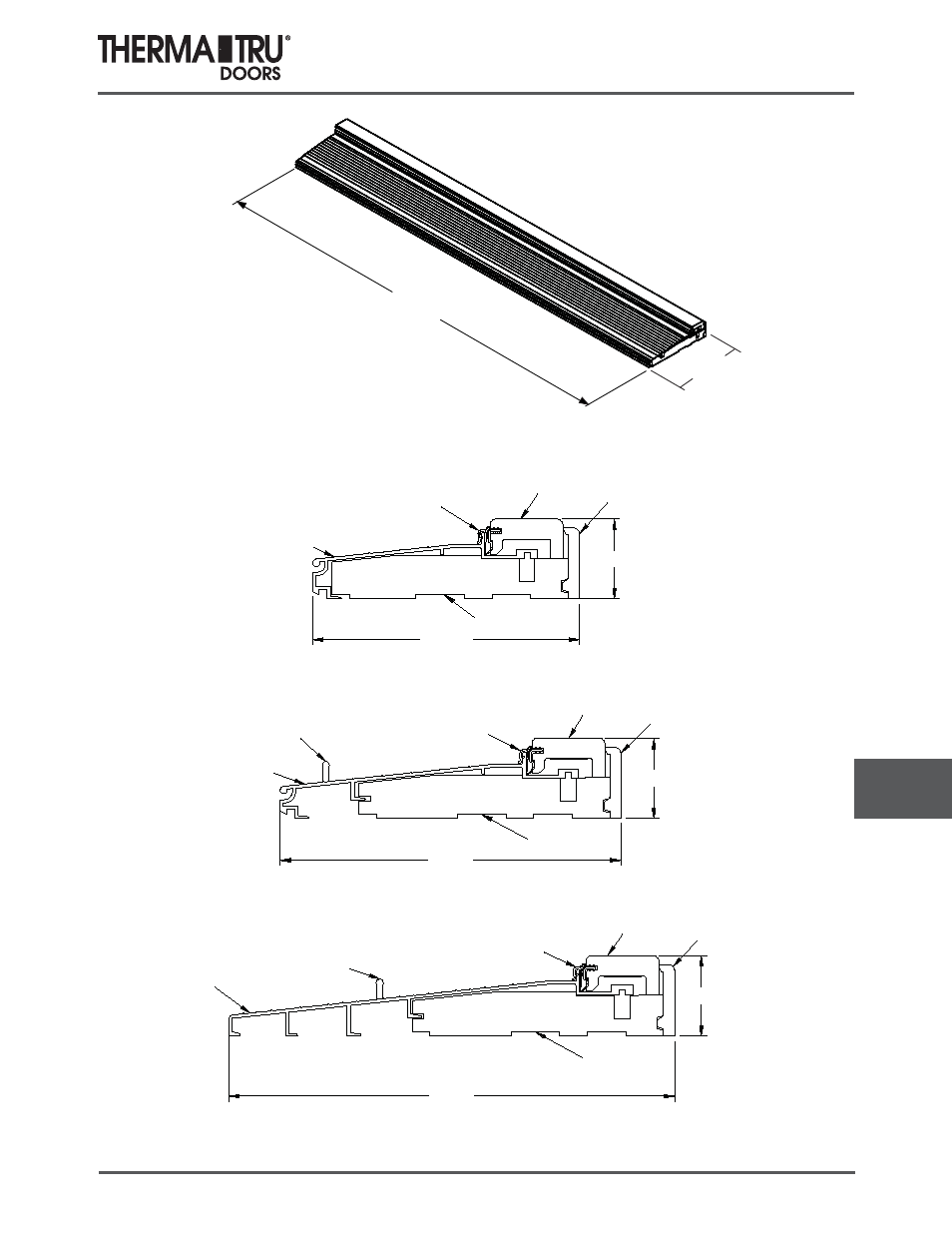

Composite/hardwood inswing adjustable sill – Therma-Tru COMP 12 Sills - U1 Revised User Manual
Page 5
Sills
Comp 12
2014 (U1 REVISED)
12.5
Composite/Hardwood
Inswing Adjustable Sill
Width
“A”
Length
4 9/16"
1 3/8"
1 3/8"
5 3/4"
1 3/8"
7 5/8"
Aluminum
Approach
Aluminum
Approach
Aluminum
Approach
Gasket
Gasket
Gasket
Saddle
Saddle
Saddle
Nosing
Nosing
Nosing
Substrate
Substrate
Substrate
Screen tracks available
on patio sills
Screen tracks available
on patio sills
Other Substrate Options Available
+3/16"
+3/16"
+3/16"
