Sills
12.4 2014 (U1 REVISED) Comp 12

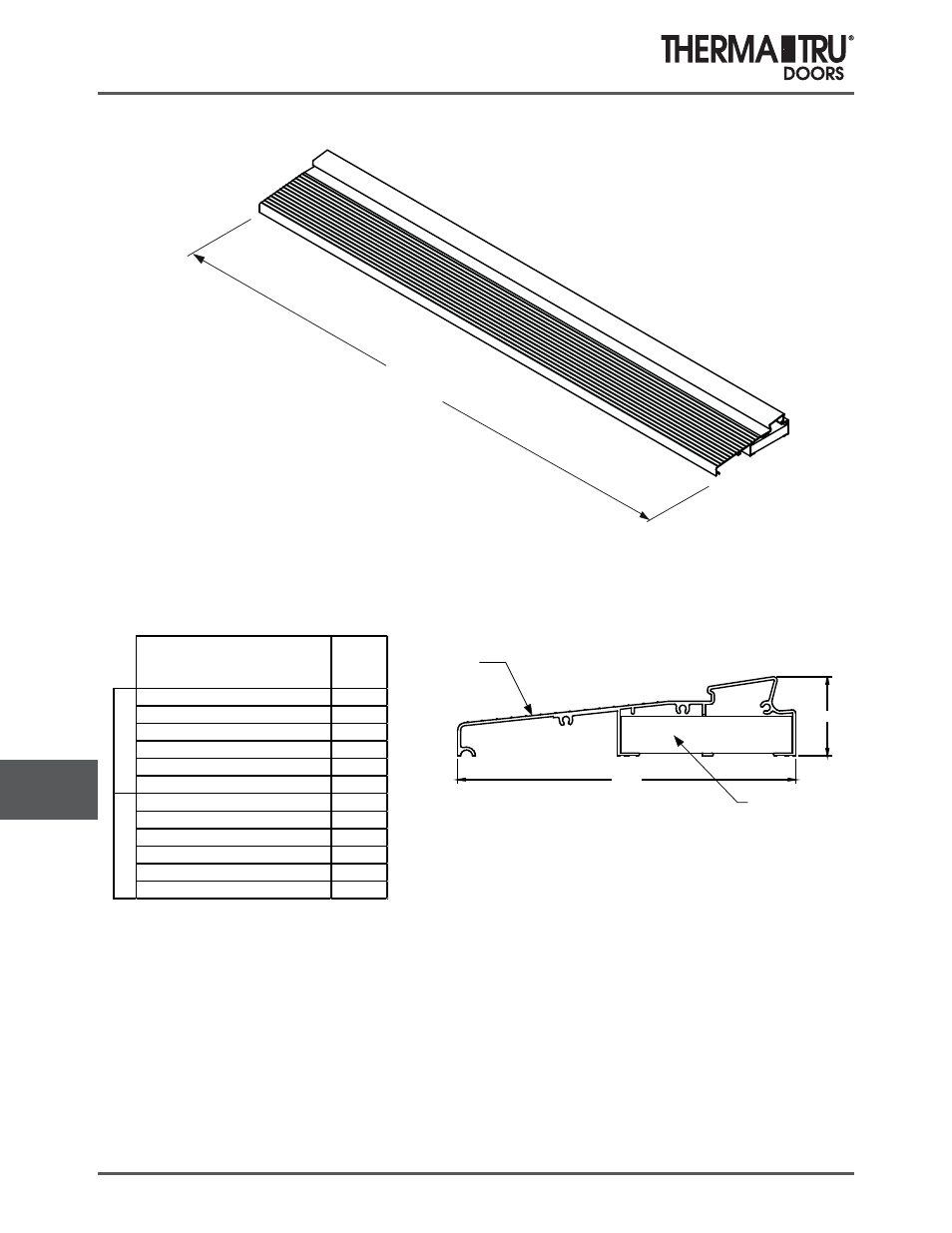

Moderate Climate Sill
“A”
Length
SIZE
"A"
OVERALL
LENGTH
2/4 DOOR 28.000"
2/6 DOOR 30.000"
2/8 DOOR 32.000"
2/10 DOOR 34.000"
3/0 DOOR 36.000"
3/6 DOOR 42.000"
4/8 FRENCH WITH 7/8" ASTRAGAL 56.718"
5/0 FRENCH WITH 7/8" ASTRAGAL 60.718"
5/4 FRENCH WITH 7/8" ASTRAGAL 64.718"
5/8 FRENCH WITH 7/8" ASTRAGAL 68.718"
6/0 FRENCH WITH 7/8" ASTRAGAL 72.718"
7/0 FRENCH WITH 7/8" ASTRAGAL 84.718"
SI
N
G
LE
FR
EN
C
H
1-3/8”
5-3/4”
Aluminum
Approach
Substrate
