Smooth-star / fiber-classic impact door – Therma-Tru ARCH 2 Architectural Details - U1 Revised User Manual
Page 87
Architectural
Details
Arch 2
2014 (U1 REVISED)
2.87
Smooth-Star / Fiber-Classic Impact Door

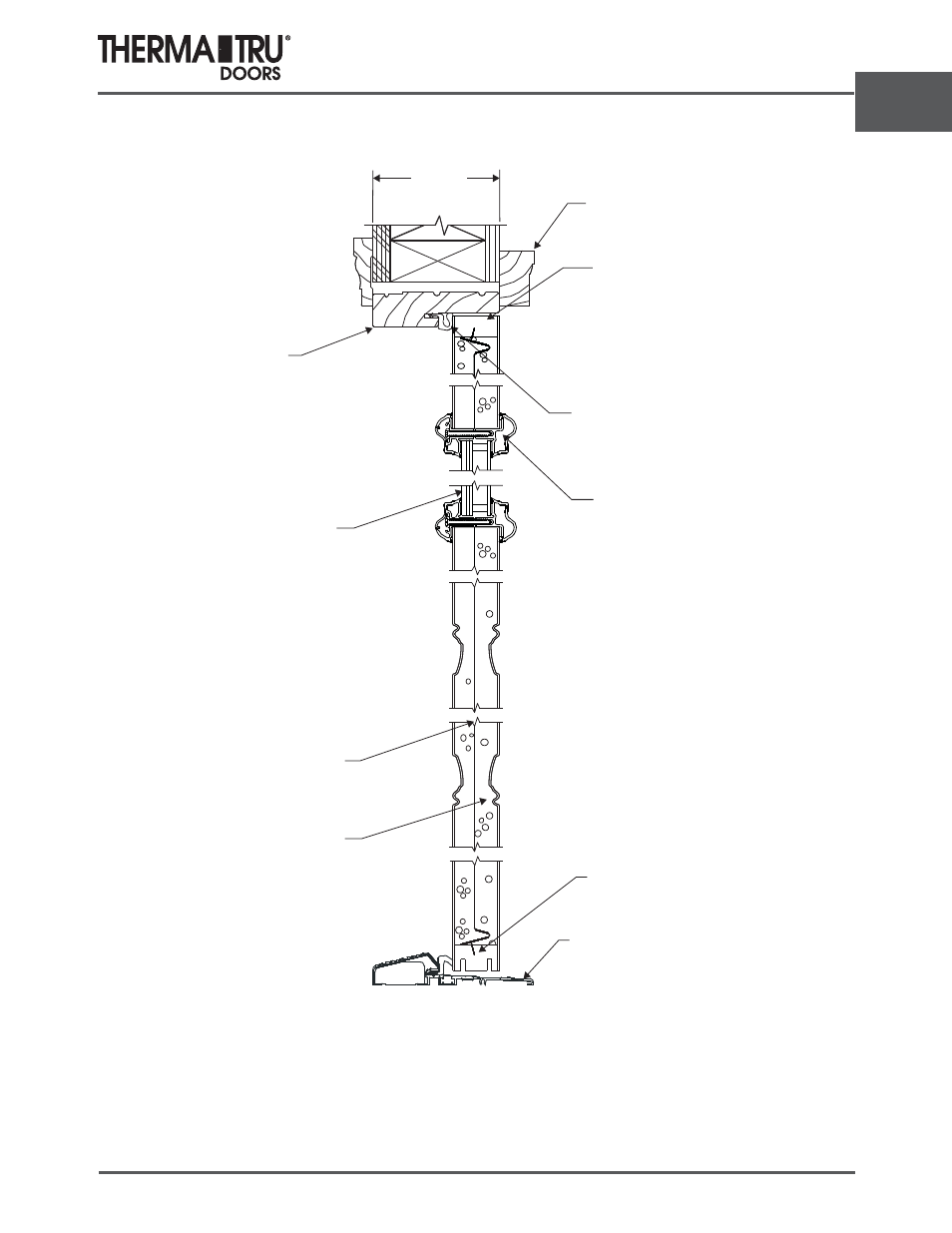

SECTION B-B
Scale: 3
” = 1’- 0”
Jacketed Urethane
Weatherstrip
Brickmould
4-9/16” Jamb
5-3/4” Outswing Thermal
Break Bumper Sill
Foam Core
4-9/16”
Moisture-Resistant
End Rail
Impact Plate
Impact Lite
Frame
Laminated
Impact
Lite
Top Rail
