Smooth-star flush-glazed door – Therma-Tru ARCH 2 Architectural Details - U1 Revised User Manual
Page 79
Architectural
Details
Arch 2
2014 (U1 REVISED)
2.79

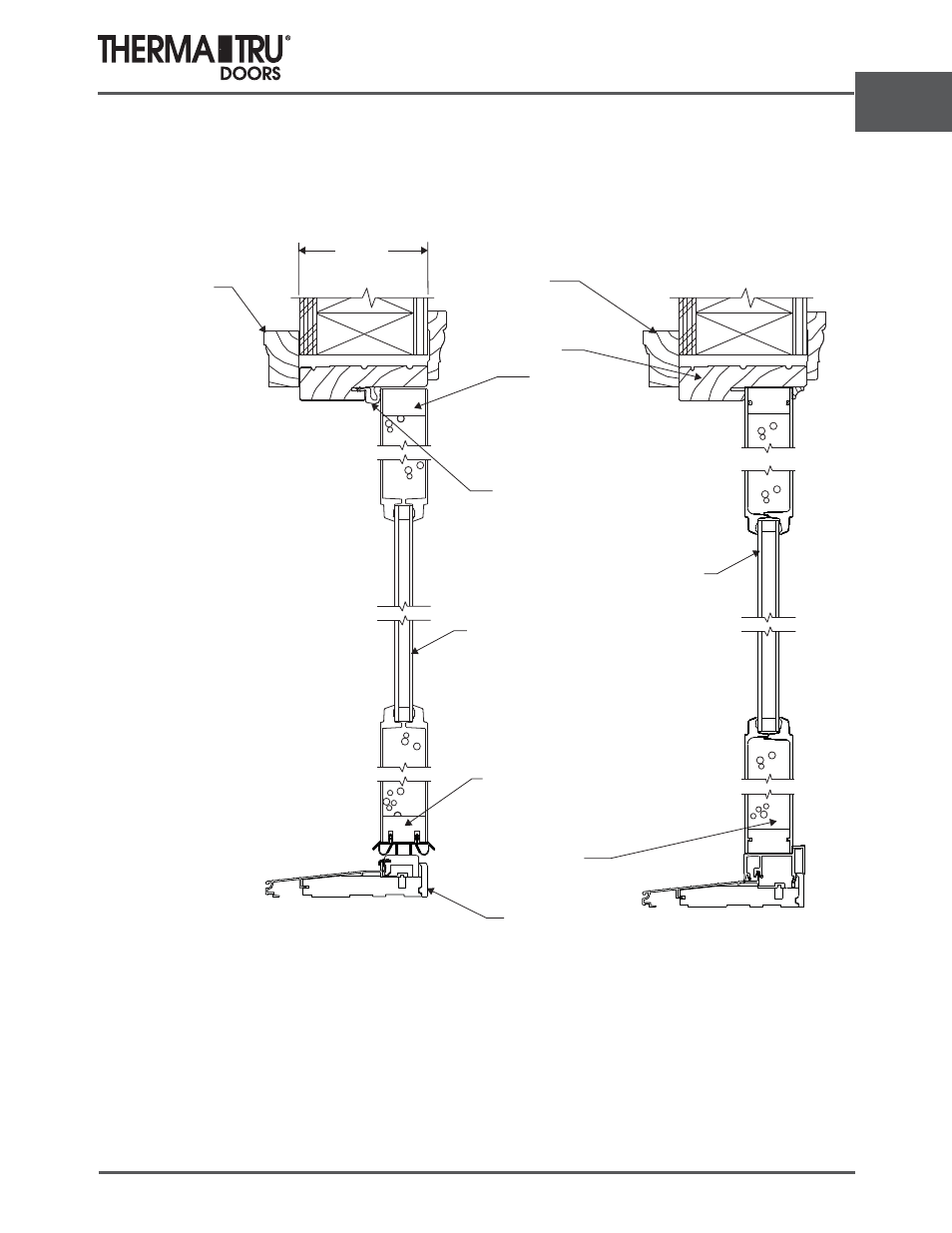

Smooth-Star Flush-Glazed Door
SECTION B-B
Scale: 3
” = 1’- 0”
Jacketed Urethane
Weatherstrip
4-9/16”
Active
Flush-Glazed
Double-Glazed
Clear Lite
Moisture-Resistant
End Rail
Brickmould
5-3/4 Composite
or Hardwood Sill
”
SECTION C-C
Brickmould
4-9/16” Jamb
Foam Core
Scale: 3”
= 1’- 0”
Flush-Glazed
Double-Glazed
Clear Lite
Top Rail
