Smooth-star flush-glazed door – Therma-Tru ARCH 2 Architectural Details - U1 Revised User Manual
Page 81
Architectural
Details
Arch 2
2014 (U1 REVISED)
2.81

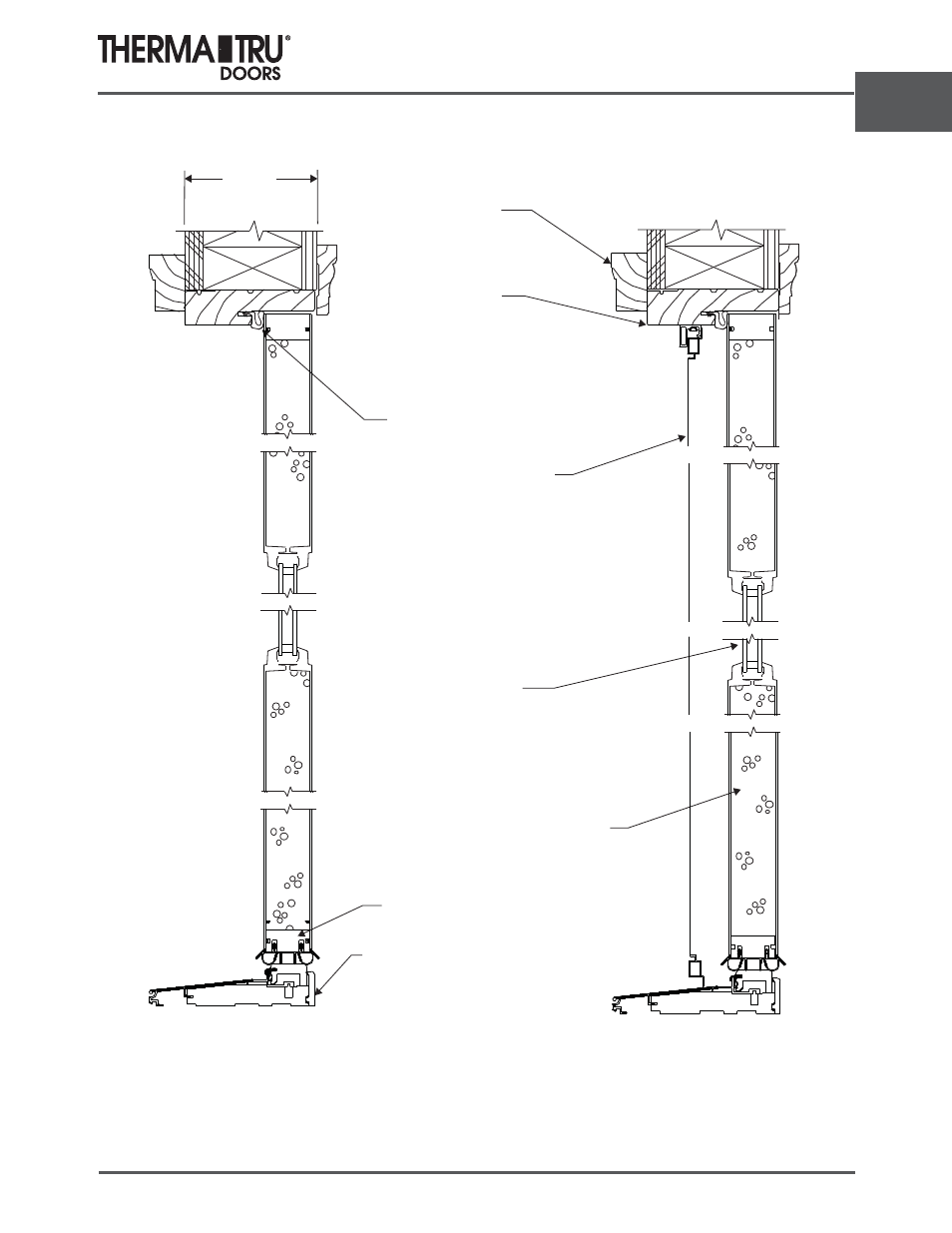

Smooth-Star Flush-Glazed Door
SECTION B-B
Scale: 3” = 1’- 0”
SECTION C-C
5-7/8” Composite or
Hardwood Sill
Foam Core
4-9/16
amb
” J
Flush-Glazed
Double-Glazed
Clear Lite
Brickmould
Jacketed Urethane
Weatherstrip
4-9/16”
Moisture-Resistant
End Rail
Scale: 3” = 1’- 0”
Fixed Screen
