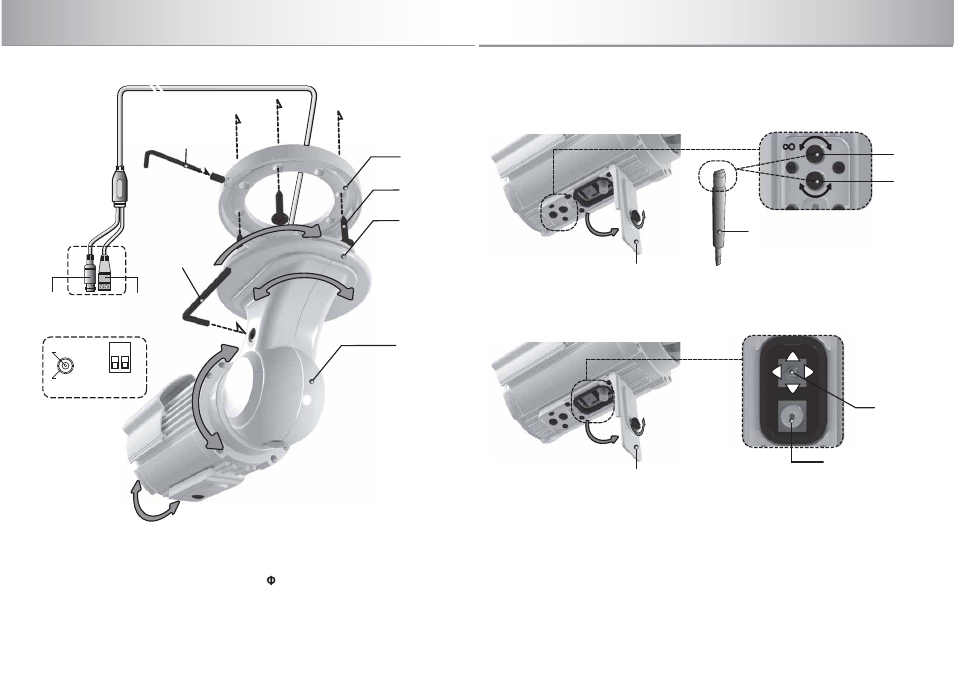

1. ZOOM/FOCUS ADJUST MENT
2.CAMERA SETTING
Camera setting
5mm
“L”wrench
2.5mm
“L”wrench
Fixing Screw
Camera installation
1. Make desired viewing angle by using Focus/Zoom adjustment tool clockwise
or conunter clockwise as [PIC 1]
Video Jack
(BNC/RCA)
Cable Jack Setting
Video Signal
Video GND
Video Jack
DC/AC Switched
Without
Nega(-)/Posi(+)
1. On the ceiling(or wall), make the hole for Anchor and put the Anchor into
the hole completely.
Use Fixing Screw to settle (Anchor size : 4 / Lengh 30mm)
2. After settle the Bracket Base, use “L”wrench to settle the Camera Body
and Bracket Head
Zoom
Focus
Camera bass
Mountbase
Camera guard
Termial
Block
Extra Service Preview
Video output
Joystick
Push
Menu / Enter
1. According to [PIC 2], open Control Panel cover to change the setting.
2. If necessary, change OSD setting for desired performance, at camera control
panel
* The extra service preview video out put can be used for installation with the
Portable monitor. ( For the camera setting, please check the OSD manu)
* Push the OSD joystick little more than 1sec., OSD manu will be appeared.
* Move the OSD joystick for change the setting.
* Push the OSD joystick for Enter and Set the setting.
3. After changing OSD setting, lock the control panel cover completely.
N
T W
Focus/Zoom
Adjustment Tool
Control Panel cover
Control Panel cover
UP
DOWN
RIGHT
LEFT
