INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits MCB650 product. We adopt the
latest SONY technical of sensor and driver. The most at-
tractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the charac-
ters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are con-
venient too. It is very good for you to apply to your CCTV
system.
Please read this instruction manual carefully to en-
sure proper use of the product.

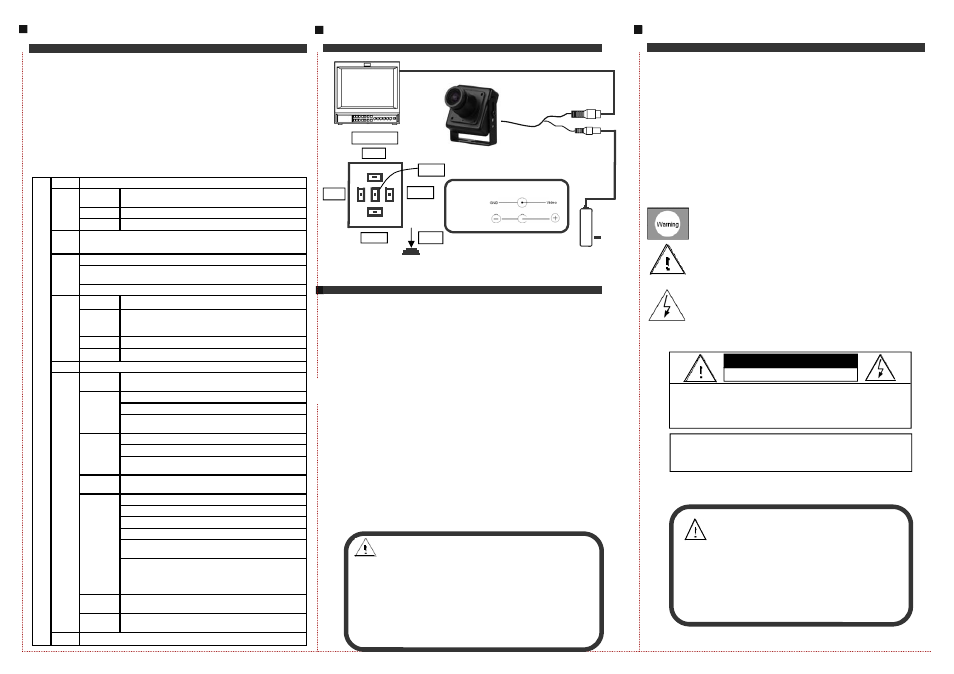

CONNECTING BRIEF OF PRODUCT
* Sensor (CCD)
Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* OSD SETTING
DC12V Power Supply
Monitor
MCB650
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
●
Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -30~ +60℃ .
(Recommendatory operating temperature is -10~+50℃ .)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
Notes：
● The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
● When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
● In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
MENU
UP
DOWN
RIGHT LEFT
PRESS
KEY BOARD
To prevent fire or shock hazarded. Do not expose the unit
to rain or moisture.
OSD
SET
LENS MANUAL/DC/VIDEO
EXPO-
SURE
SHUTTER
AUTO,FLK,1/50,1/250,1/500,1/2000,1/40000,
1/5000,1/10000,1/100000
AGC LOW/MIDDLE/HIGH/OFF
D-WDR OFF/ON(LEVEL:0-63)
WHITE
BAL
ATW/AWB/AWC-SET/ANTI.CRL/MANUAL:(INDOOR、
OUTDOOR、MANUAL)
BACK
LIGHT
OFF
BLC:AREA SEL/AREA STATE/GAIN/HEIGHT/LEFT/RIGHT/TOP/
BOTTOM
HLC:LEVEL(0-255)/ MODE(ALL DAY/NIGHT ONLY)
DAY &
NIGHT
COLOR
B/W
BURST(OFF/ON)/IR SMART(OFF/ON:IR GAIN/HEIGHT/
WIDTH/LEFT/RIGHT/TOP/ BOTTOM)/IR LEVEL(HIGH/
LOW)
AUTO D-N(LEVEL/DELAY) /N-D(LEVEL/DELAY)
EXT D→N DELAY/N→D DELAY
DPC COVER THE LENS THEN PRESS ENTER KRY
SPE-
CIAL
CAM
TITLE
ON/OFF
MOTION
OFF/ON
AREA SEL:AREA1-4
AREA STATE:OFF/ON
HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /DEGREE/
VIEW
PRIVACY
OFF/ON
AREA SEL:AREA1-8
AREA STATE:OFF/ON
HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /COLOR
PARK.LIN
E
OFF/ON(LT/LB/RT/RB/F/N/T/V1/V2/V3)
ADJ
LENS SHAD:OFF/ON
2DNR:OFF/ON
MIRROR:OFF/ON
FONT COLOR:FONT(0-15)/ID&TITLE(0-15)
CONTRAST:0-255 SHARPNESS:0-31 NEG.IMAGE:OFF/
ON
DISPLAY:CRT(PED LEVEL:0-63/COLOR GAIN:0-255)/
LCD(GAMMA:0-1/PED LEVEL:0-63/COLOR:0-255)/
USER(GAMMA:0-1/PED LEVEL:0-63/COLOR:0-255)
COMM
ADJ
CAM ID(0-255)/BAUD RATE/PROTOCOL/DISPLAY ID/
ID POS
LAN-
GUAGE
CHINESE/ENGLISH/ESPANYOL/PYCCKNN/DEUTSCH/
PORTUGUES/FRANCAIS/JAP
RESET FACTORY RESET
