U32E-5 FPI Direct Vent Gas Insert
INSTALLATION

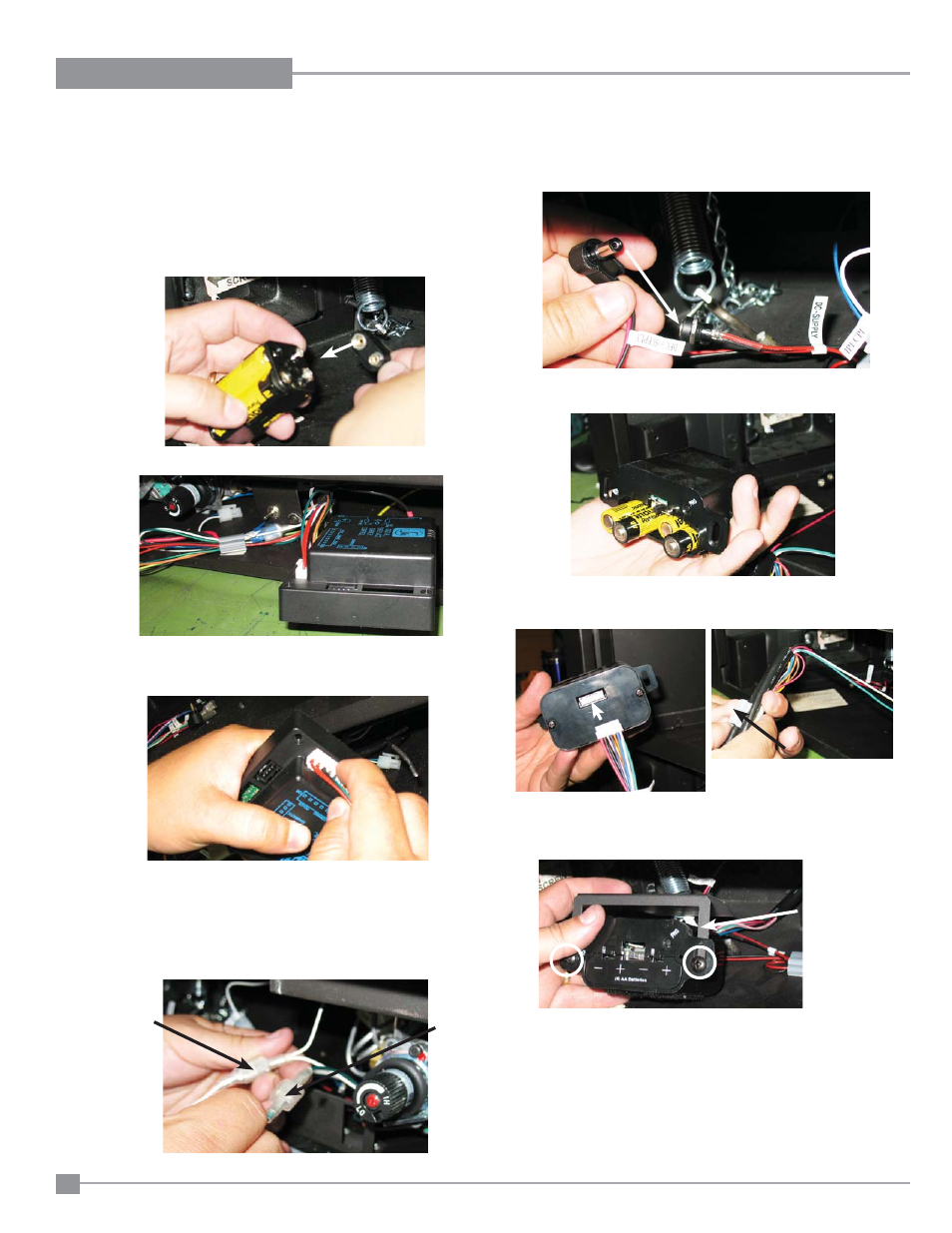

6) Identify wires in the GT remote wiring harness.
(See attached wiring diagram for details. )
7) Locate green and white ON/OFF wires.
Connect the TPTH and TH wires - green to green and white to
white as shown below. See attached wiring diagram for details.
8) Plug in receiver DC supply wire to the DFC supply- as shown
below.
9) Install 4 - AA batteries into the receiver, ensure correct polarity.
10) Plug receiver wires into the back of the receiver and bundle wires
with the wire clip as shown below.
11) Install the heat shield to the receiver with two screws and attach to
the fl oor of the unit with a velcro pad.
12) Reverse steps 5 and 4.
13) Match the remote control to the receiver - see remote control
instructions.
14) Reverse steps 2 and 1.
15) Check to ensure there are no gas leaks.
4) Remove DFC (digital fi rebox control box) from the fl oor of the unit.
5) Disconnect wire harness, ground wire and spark wire from DFC.
See attached wiring diagram for details.
1) Shut off the gas supply and disconnect all power to the unit.
2) Remove the louvers, bay door or faceplate if installed.
3) Disconnect battery pack - located on the fl oor of the unit, as shown
below and discard.
Do not use battery pack with receiver.
TPTH
(white)
TH
(green)
Heat Shield
Wire Clip
GT REMOTE INSTALLATION
