INSTALLATION
To remove the fl ush door, reverse the above
steps.
NOTE: The chain must rest on TOP of the gas
inlet pipe never under it.
Diagram 3
Diagram 2
Use the hook to pull the spring out until you can
put the hook into the slot on the bottom door
bracket. Repeat for 2nd spring. See diagram 3.
Diagram 1b
FLUSH LOUVERS
Diagram 1a
STANDARD
FLUSH DOOR

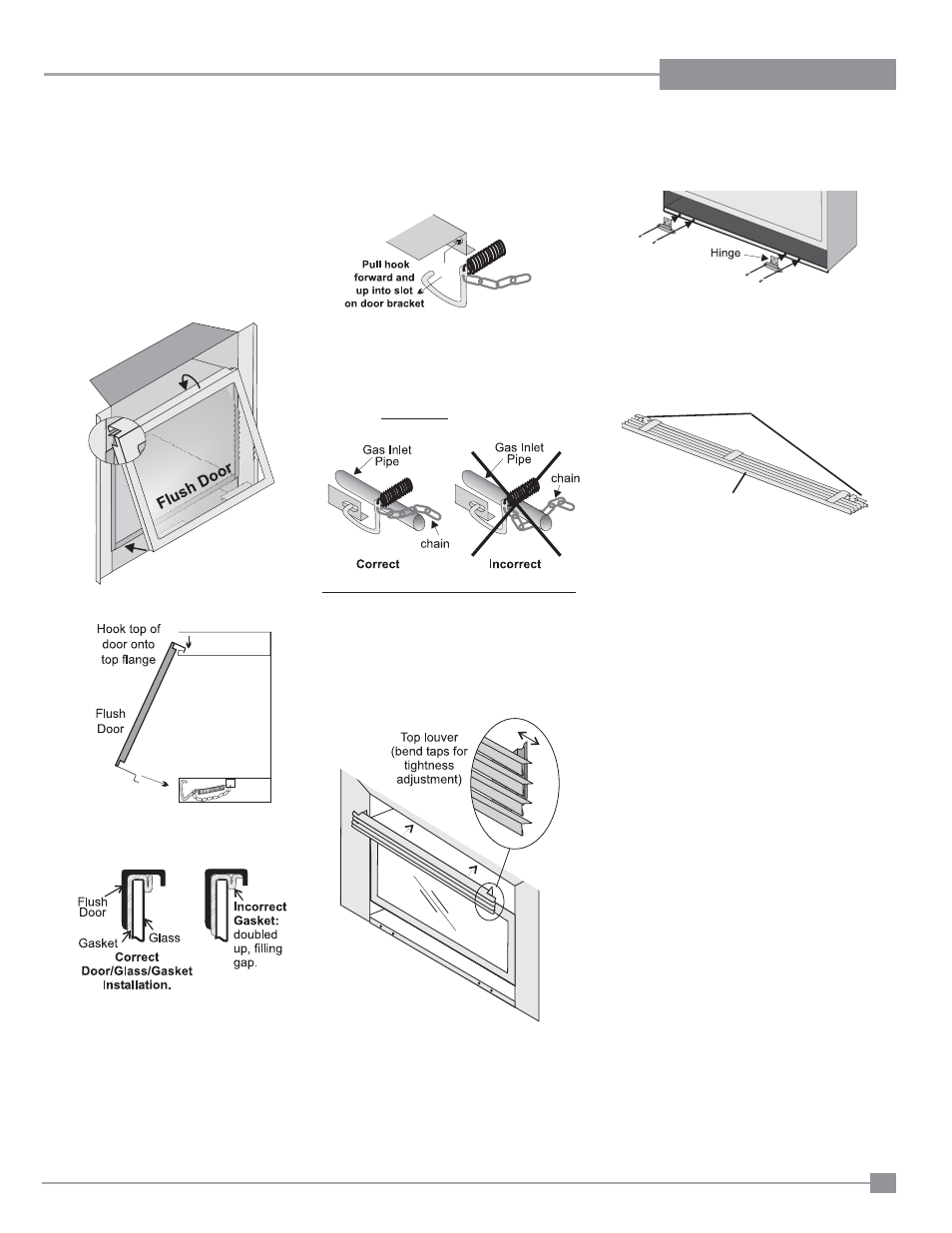

The standard fl ush door comes with a black
frame. To install the frame, simply hook the top
door fl ange onto the top of the unit and swing
the door towards the unit, diagram 1. Be careful
that the glass gasket does not roll up; there
must be a gap between the gasket and the door
lip to ensure that the door sits securely on the
unit. Diagram 2.
1) The top louver is held in place by friction fi t,
if the louver needs to be adjusted; bend the
bracket out as shown in the diagram.
2) Install the Spring Hinges on the left and right
side of the bottom of the Firebox using 2
screws per hinge.
3) Place the Bottom Louver near the hinge. Flip
hinge over the Bottom Louver and secure
using 3 screws.
Bottom Louver
Hinge
Location
