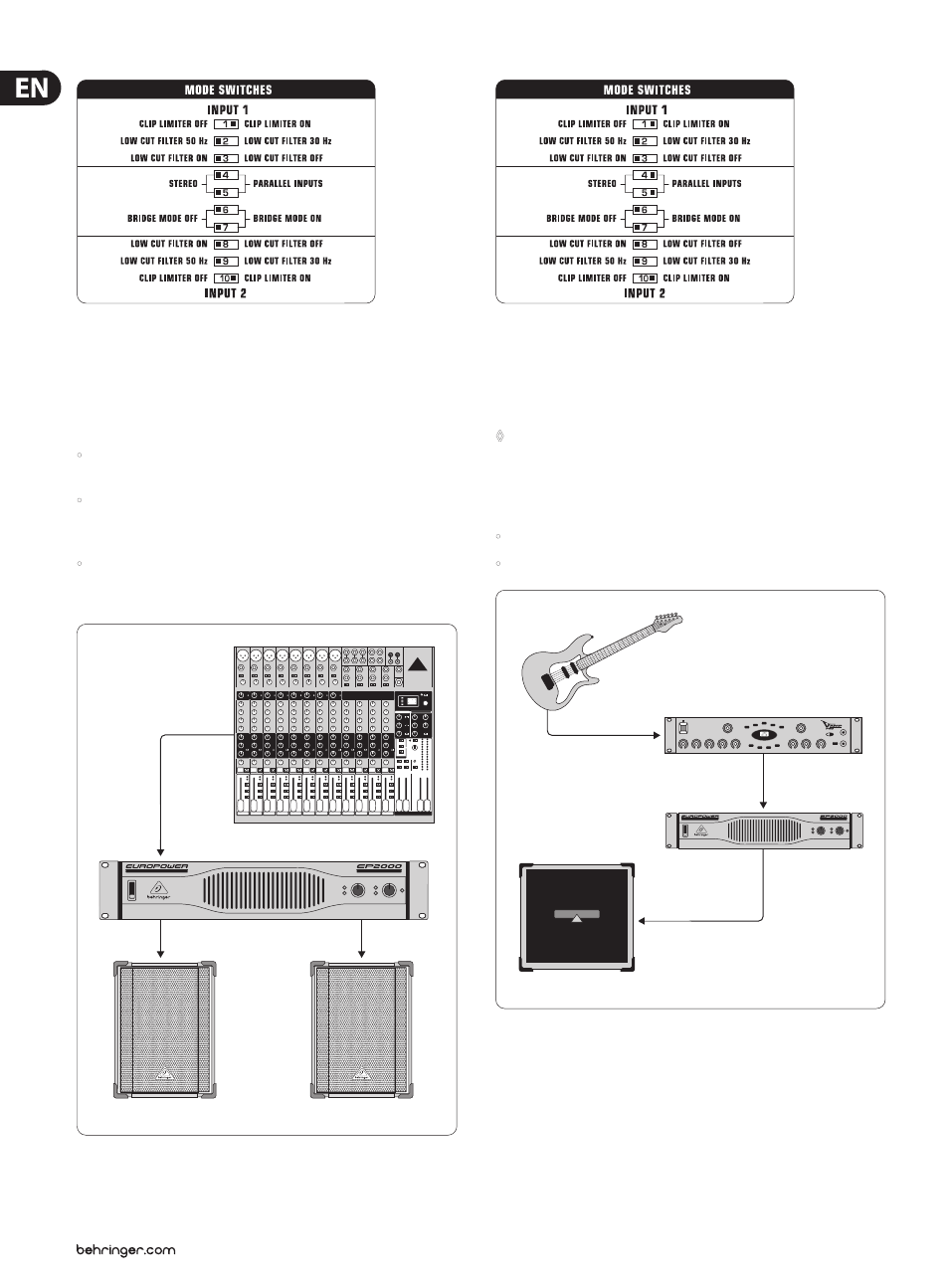

Fig. 3.2: DIP switch positions for 2-channel operation
Parallel mode is identical to 2-channel mode, except for the inputs of both
channels are internally connected in parallel. One input signal routes parallel
both channels, while their filters etc. are independently controlled.
Examples:
• A mono signal is fed into both channels, whereby amplification of each
channel is controlled separately
• Parallel mode (as described above) with connection of an additional amp
via the remaining free input connector. The input signal is present there and
may be connected to further equipment
• When connecting a balanced input signal, please make sure to exclusively
use balanced cables for passing the signal further on. Otherwise, a single
unbalanced cable can turn the entire signal unbalanced
XENYX X2222USB Mixing Console
Mono out
Input
channel 1
EUROPOWER EP2000 (Parallel Mode)
EUROLIVE B1520 PRO Full range loudspeaker
Fig. 3.3: Parallel operation
Fig. 3.4: DIP switch positions for parallel operation
When running in mono-bridged mode, the voltage of both channels is added
up and fed into a single loudspeaker system. There is one input and one output
signal respectively, and only the controls of channel 1 (and not of channel 2)
are used.
◊ However, should the DIP switches 4 and 5 still be in PARALLEL INPUTS
position while in mono-bridged mode, the signal on the free input
(input channel 2) can be forwarded to an additional amp.
Examples:
• Driving a single 8-Ohm loudspeaker
• Driving a single 4-Ohm loudspeaker
Electric guitar
V-AMP PRO
BG412F
Input
channel 1
EUROPOWER
EP2000
(Mono Bridged
Mode)
Fig. 3.5: Mono-bridged mode
