11 EUROPOWER EP4000/EP2000 User Manual

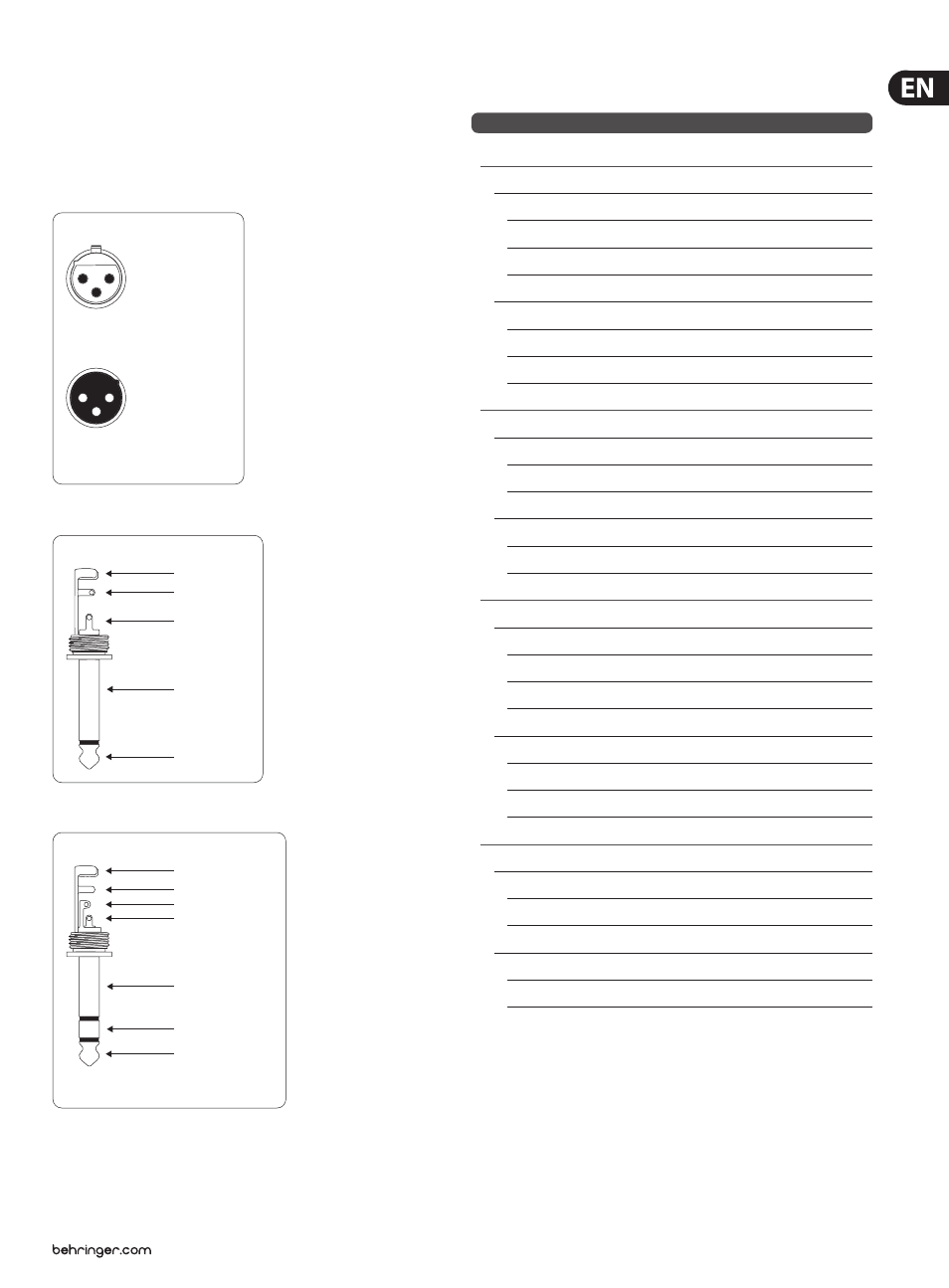

4.2 Audio connections
Various cables are needed for different types of applications. The following
illustrations show the correct wiring. Always use high-grade cables.
When connecting a balanced input signal, please make sure to exclusively
use balanced cables for passing the signal further on. Otherwise, one single
unbalanced cable can turn the entire signal unbalanced.
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
1 2
3
1 2
3
Balanced use with XLR connectors
Fig. 4.3: XLR connectors
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.4: ¼" TS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.5: ¼" TRS connector
5. Specifications
Output Power
RMS @ 1% THD (Sine Wave), Both Channels Driven
EP4000
8 Ω per channel 550 W
4 Ω per channel 950 W
2 Ω per channel 1250 W
EP2000
8 Ω per channel 350 W
4 Ω per channel 500 W
2 Ω per channel 650 W
RMS @ 1% THD (Sine Wave), Bridged Mode
EP4000
8 Ω 1750 W
4 Ω 2400 W
EP2000
8 Ω 1000 W
4 Ω 1300 W
Peak Power, Both Channels Driven
EP4000
8 Ω per channel 750 W
4 Ω per channel 1400 W
2 Ω per channel 2000 W
EP2000
8 Ω per channel 400 W
4 Ω per channel 750 W
2 Ω per channel 1000 W
Peak Power, Bridged Mode
EP4000
8 Ω 2800 W
4 Ω 4000 W
EP2000
8 Ω 1500 W
4 Ω 2000 W
